Mitsubishi
>>
2006
>>
Lancer Evolution L4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Service and Repair
>>
Removal and Installation
Removal and Installation

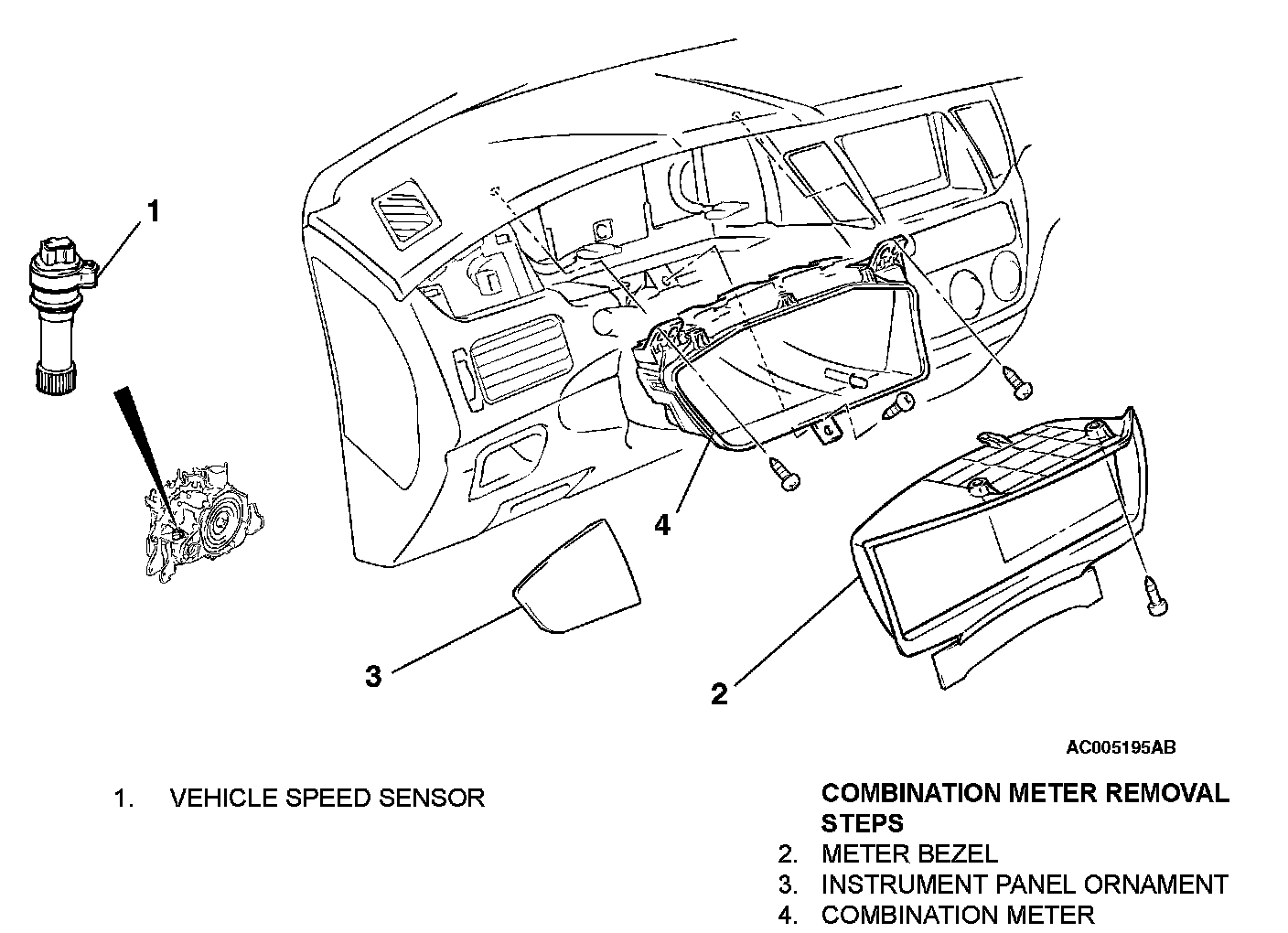

REMOVAL AND INSTALLATION
Removal Steps 1-4:
Required Special Tool:
-
MB990784: Ornament remover
