Removal and Replacement

INSTRUMENT PANEL ASSEMBLY

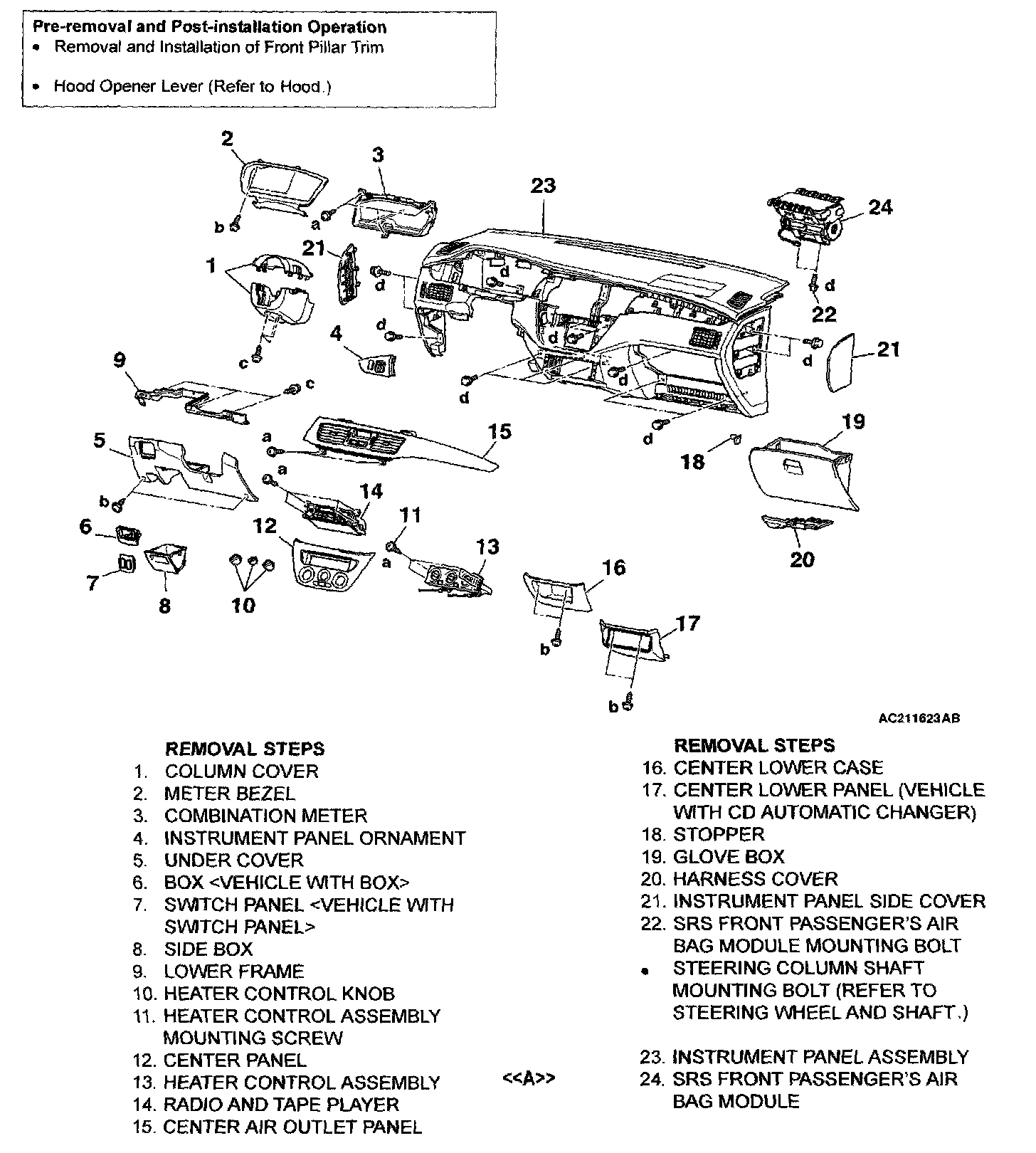

Instrument Panel Assembly:

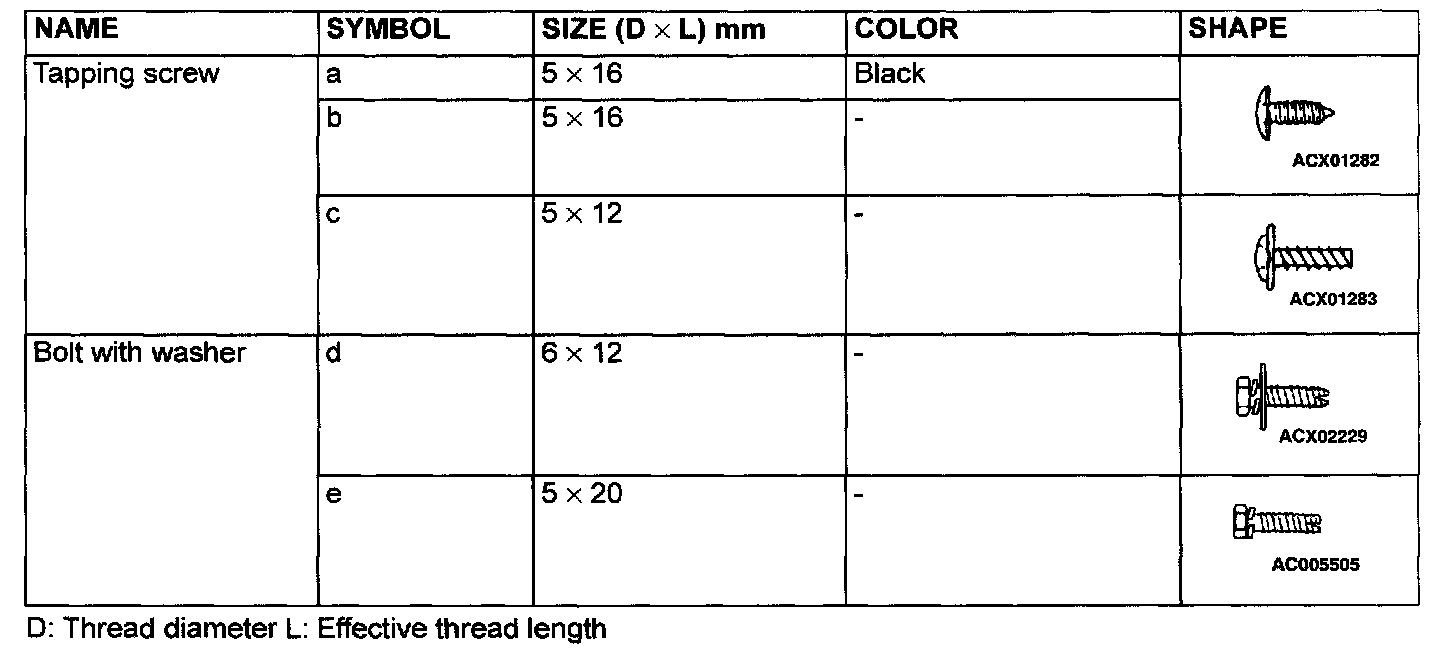

The bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

CAUTION: Refer to SRS Service Precautions and Air bag Module and Clock Spring before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

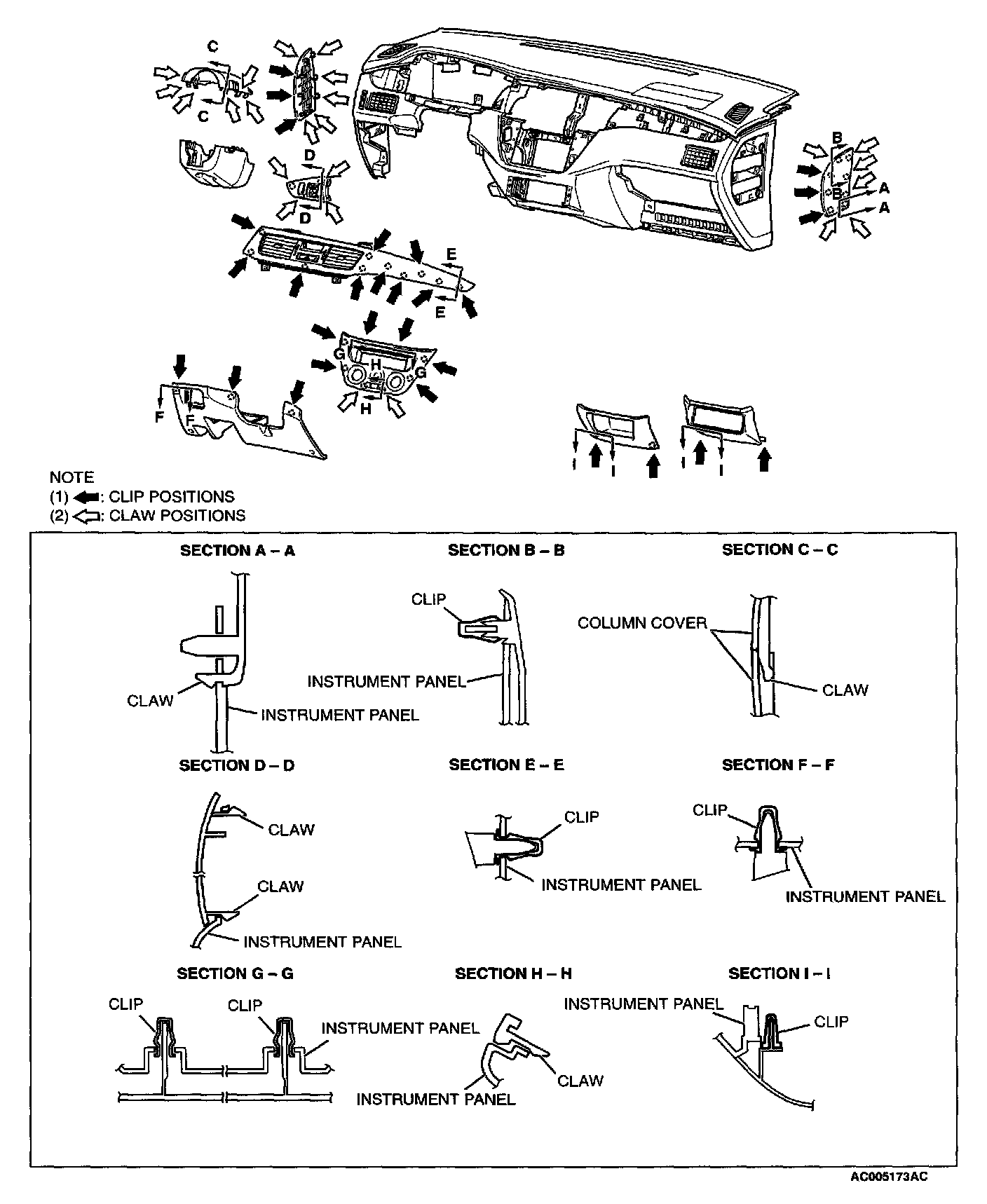

Clip And Claw Positions:

REMOVAL SERVICE POINT

[[A]] SRS FRONT PASSENGER'S AIR BAG MODULE REMOVAL

CAUTION: Do not damage the claws of the hinge when removing the front passenger's air bag module.
Store the removed front passenger's air bag module with the deployed side facing upward, in a clean and dry place.

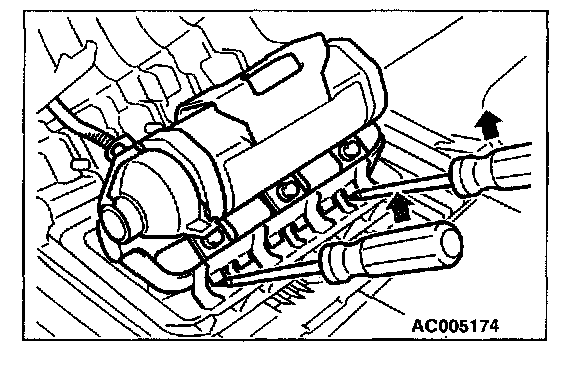

Insert the flat tipped screwdriver into the position shown in the illustration and pull up the screwdriver to disengage the claws for removal of the front passenger's air bag module.

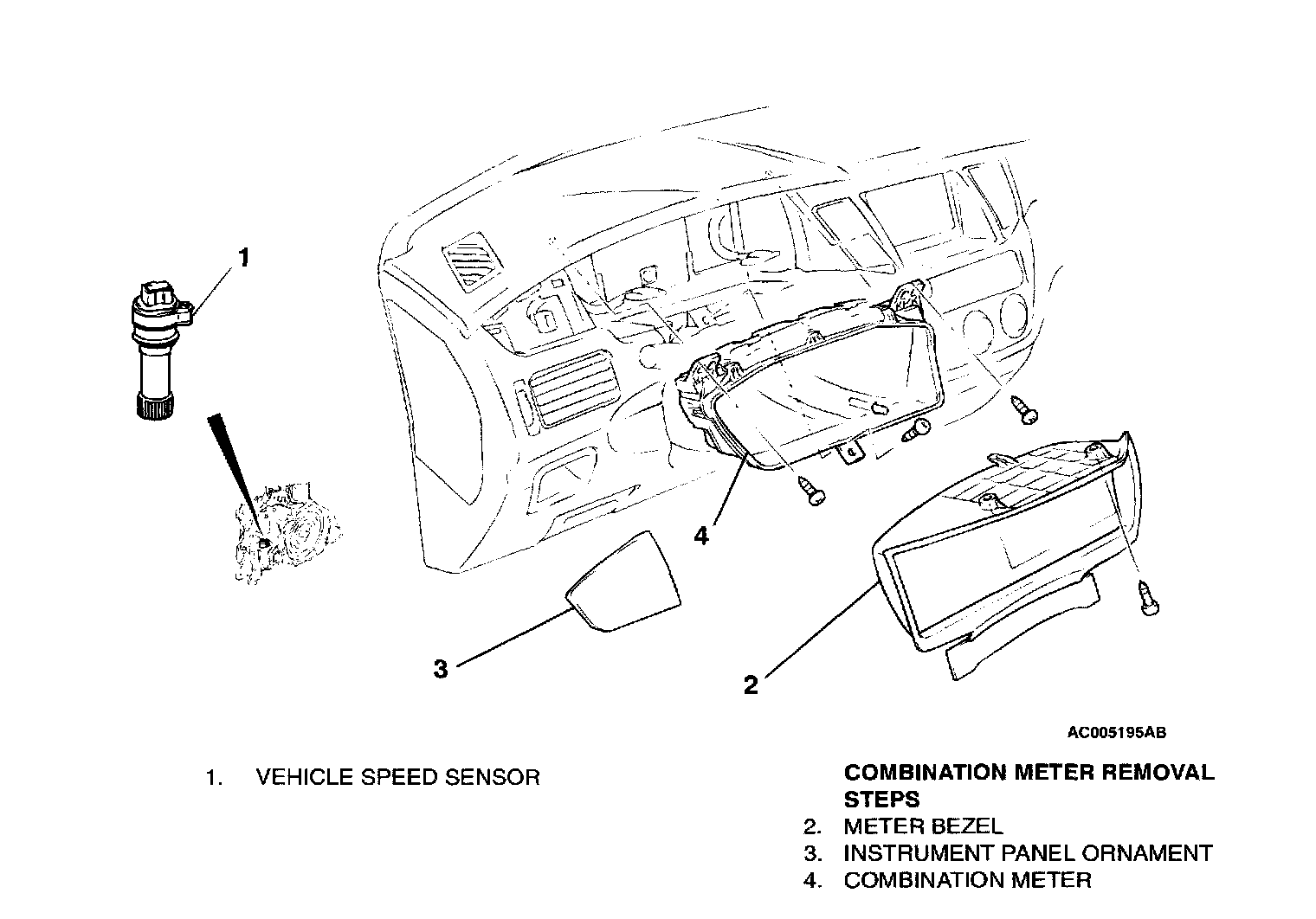

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

Combination Meter Assembly And Vehicle Speed Sensor:
