Disassembly and Assembly

Disassembly And Assembly:

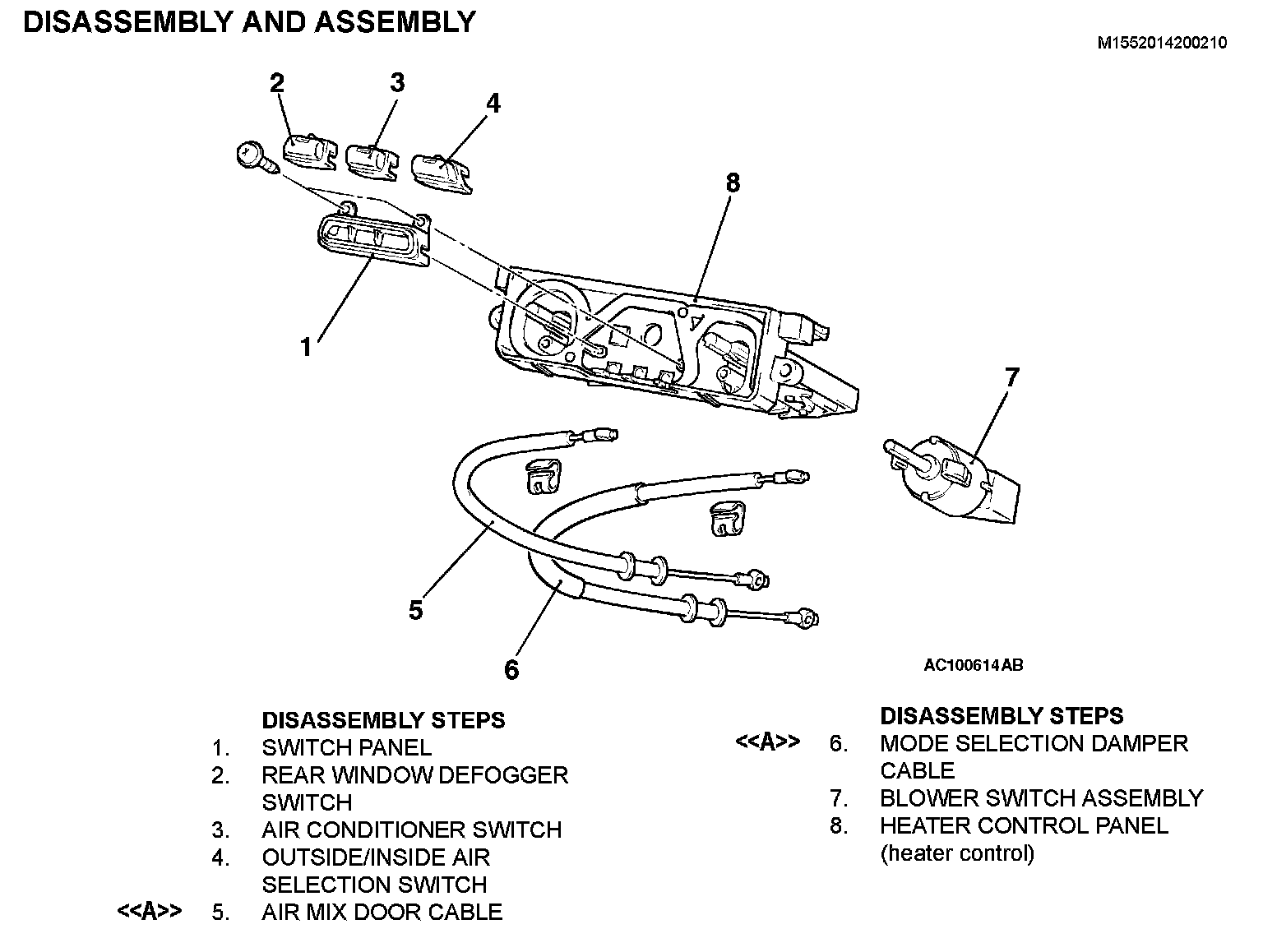

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT




<> MODE SELECTION DAMPER CABLE AND AIR MIX DOOR CABLE REMOVAL

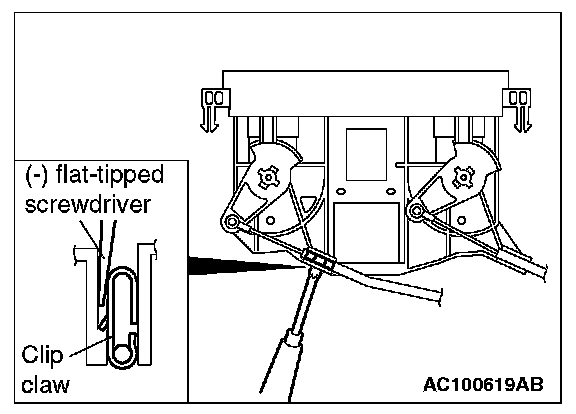

Insert a flat-tipped screwdriver into the clip through the inside of the control base and pry out the clip claw to disconnect the cables.
