CONDENSER AND CONDENSER FAN MOTORRemoval And Installation:

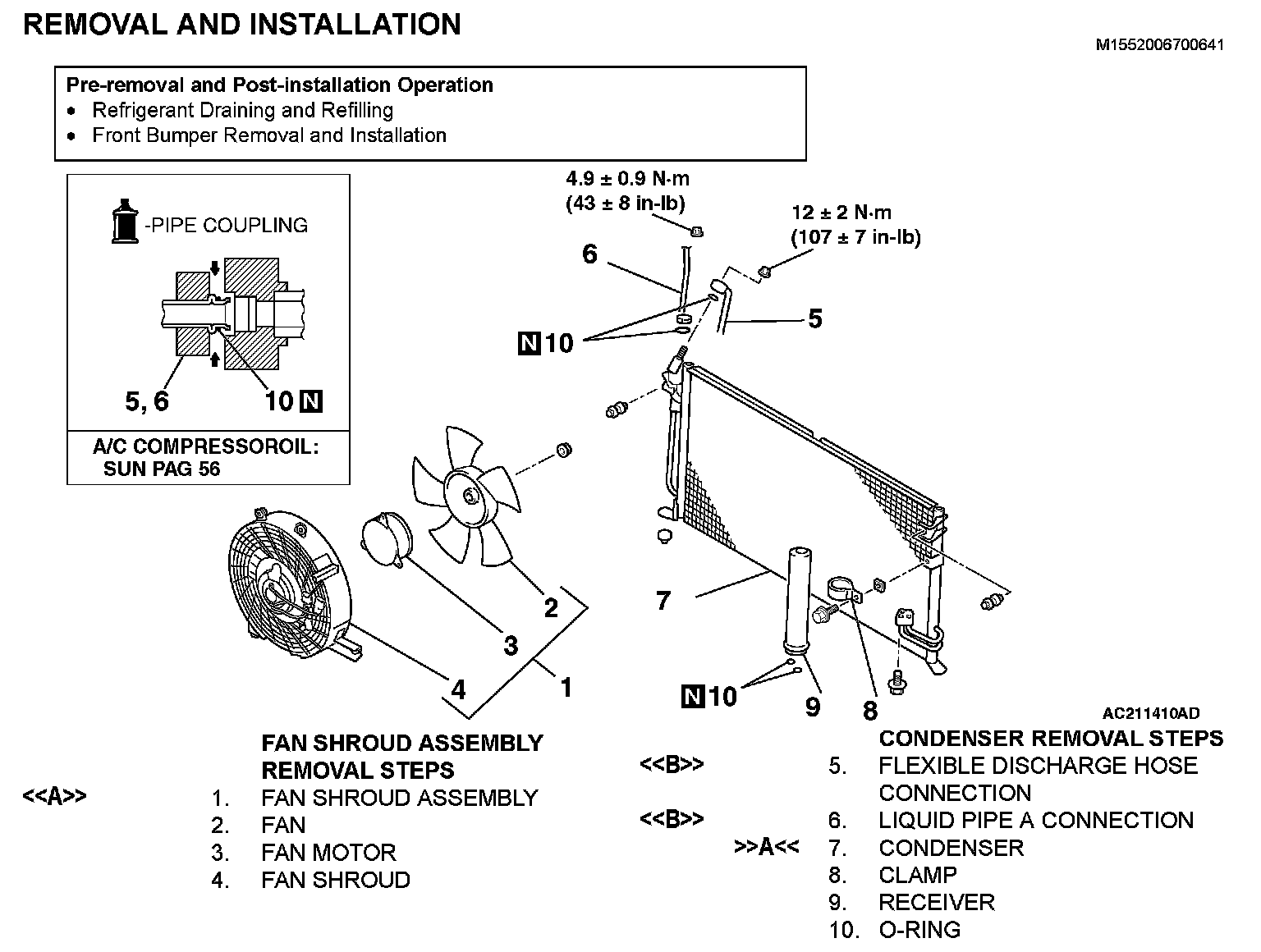

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> SHROUD ASSEMBLY REMOVAL
1. Remove the intercooler mounting bolts/nuts and pull the intercooler forward.
2. Move the fan motor/shroud assembly upward for removal.
<> FLEXIBLE DISCHARGE HOSE AND LIQUID PIPE A DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign material, plug the dismantled hose and condenser assembly nipples.
INSTALLATION SERVICE POINT
>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it to the vehicle.
Compressor oil: SUN PAG 56
Quantity: 15 cu.cm (0.5 floz)
