Removal and Installation

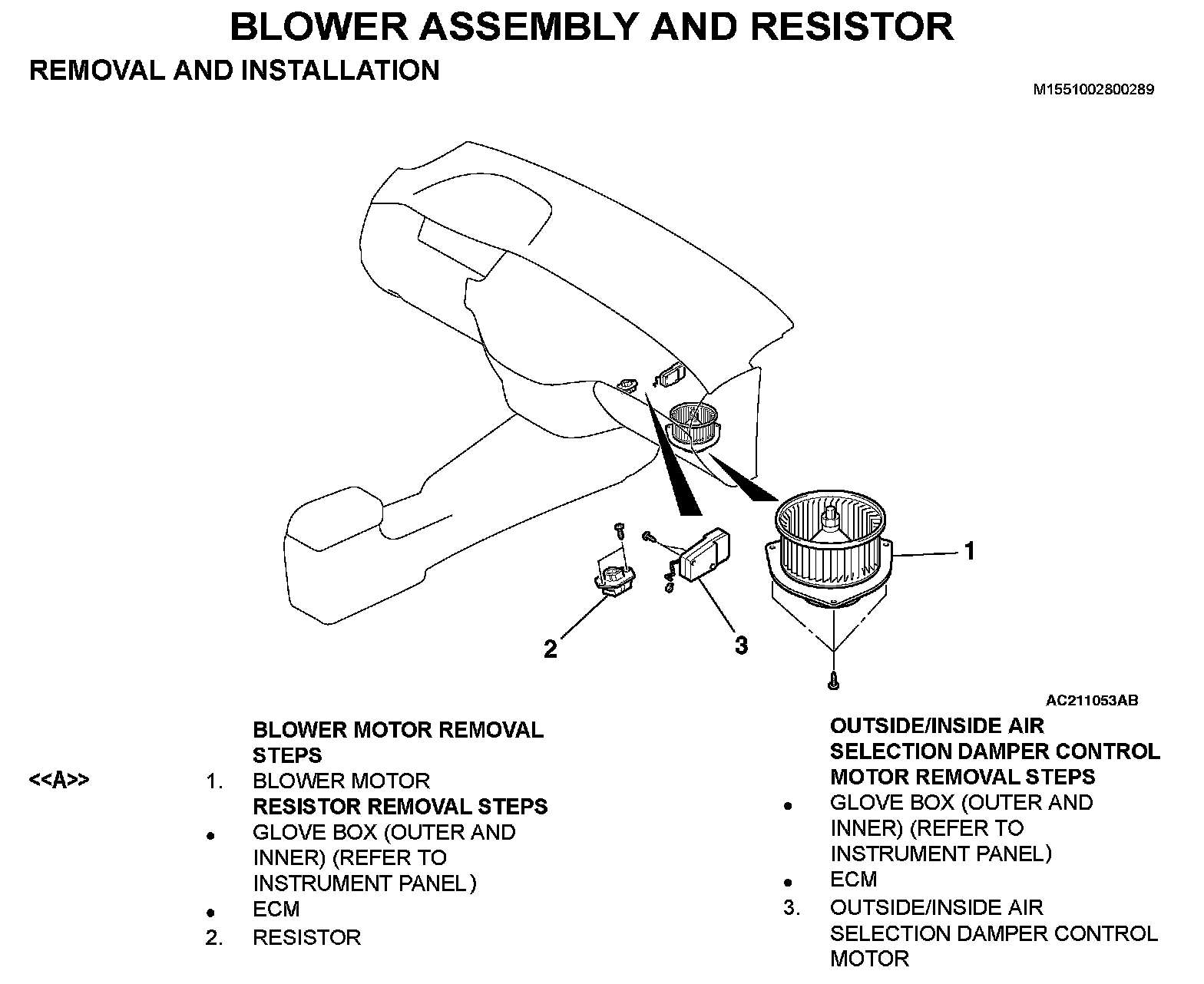

BLOWER ASSEMBLY AND RESISTOR

Blower Assembly And Resistor - Removal And Installation:




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> BLOWER MOTOR REMOVAL

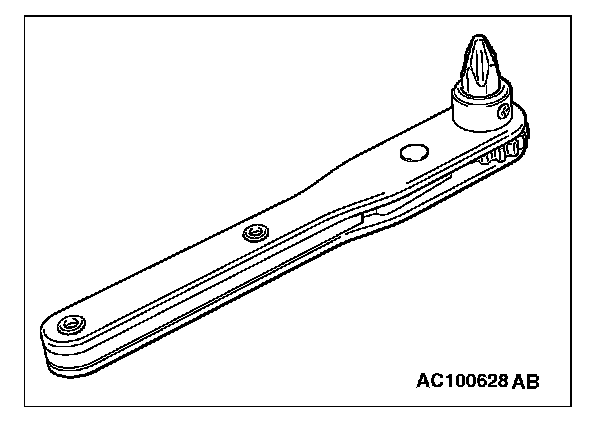

NOTE: A normal plate-type ratchet driver is recommended.
