Water Pump: Service and Repair

WATER PUMP

REMOVAL AND INSTALLATION

CAUTION: If the vehicle is equipped with the Brembo(TM) disc brake, during maintenance, take care not to contact the caliper with tools or parts, because the caliper paint will be scratched.

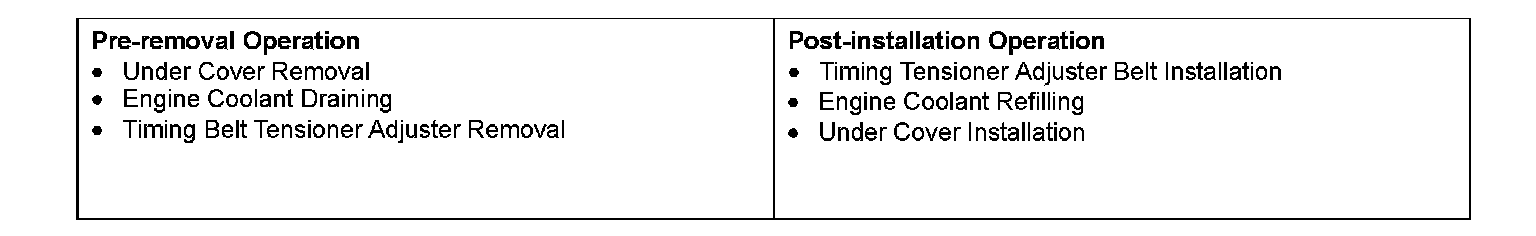

Pre-removal & Post-installation Operation:

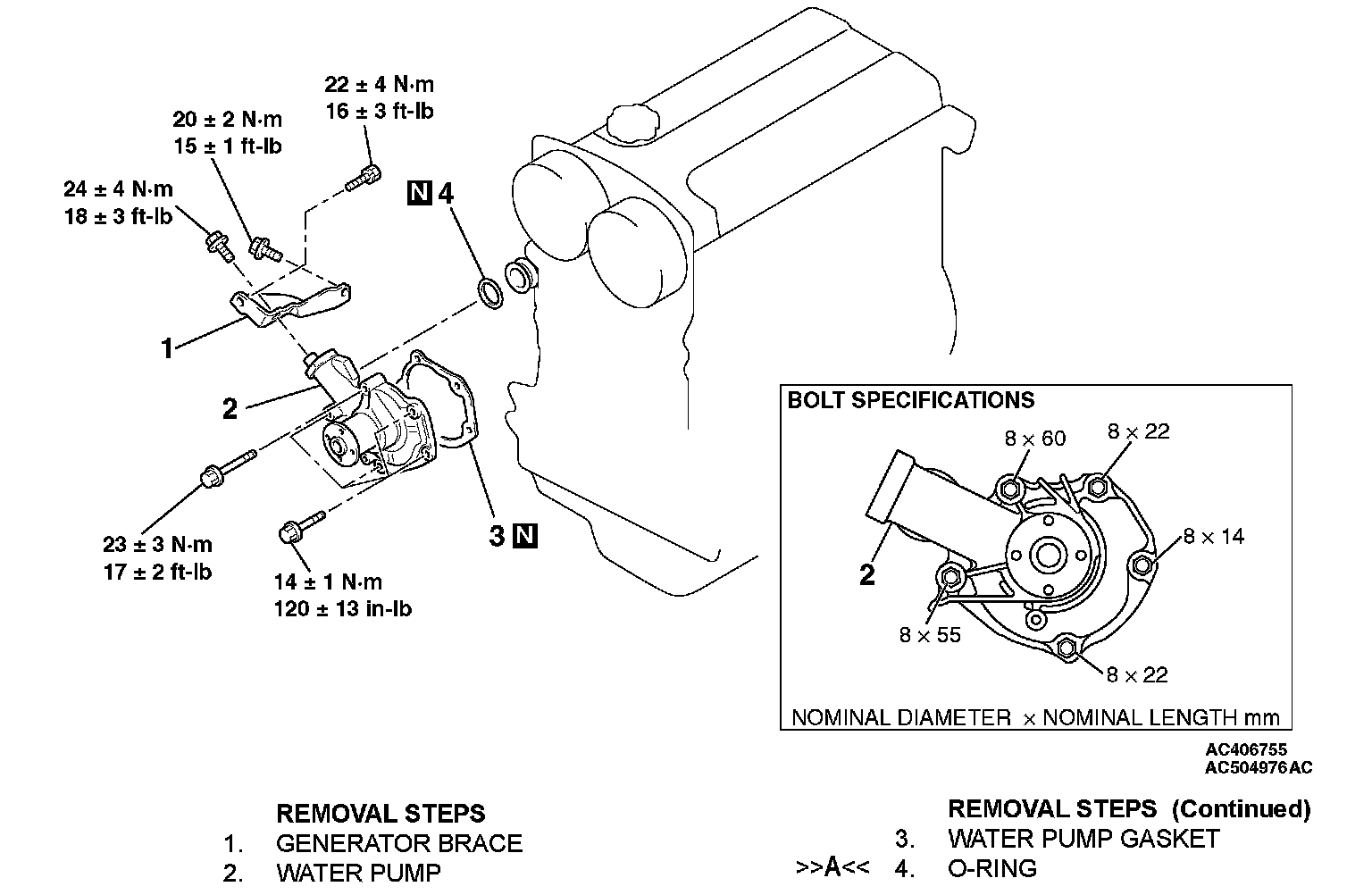

Removal Steps 1-4:

INSTALLATION SERVICE POINT
]]A[[ O-RING INSTALLATION

CAUTION: Do not let the O-ring get contaminated with grease or engine oil.





Fit an O-ring into the O-ring groove located at the end of the water inlet pipe and apply water to the O-ring or the inside of the mounting surface of the water pump for insertion.
