Water Pump & Water Hose

WATER PUMP & WATER HOSE

REMOVAL AND INSTALLATION

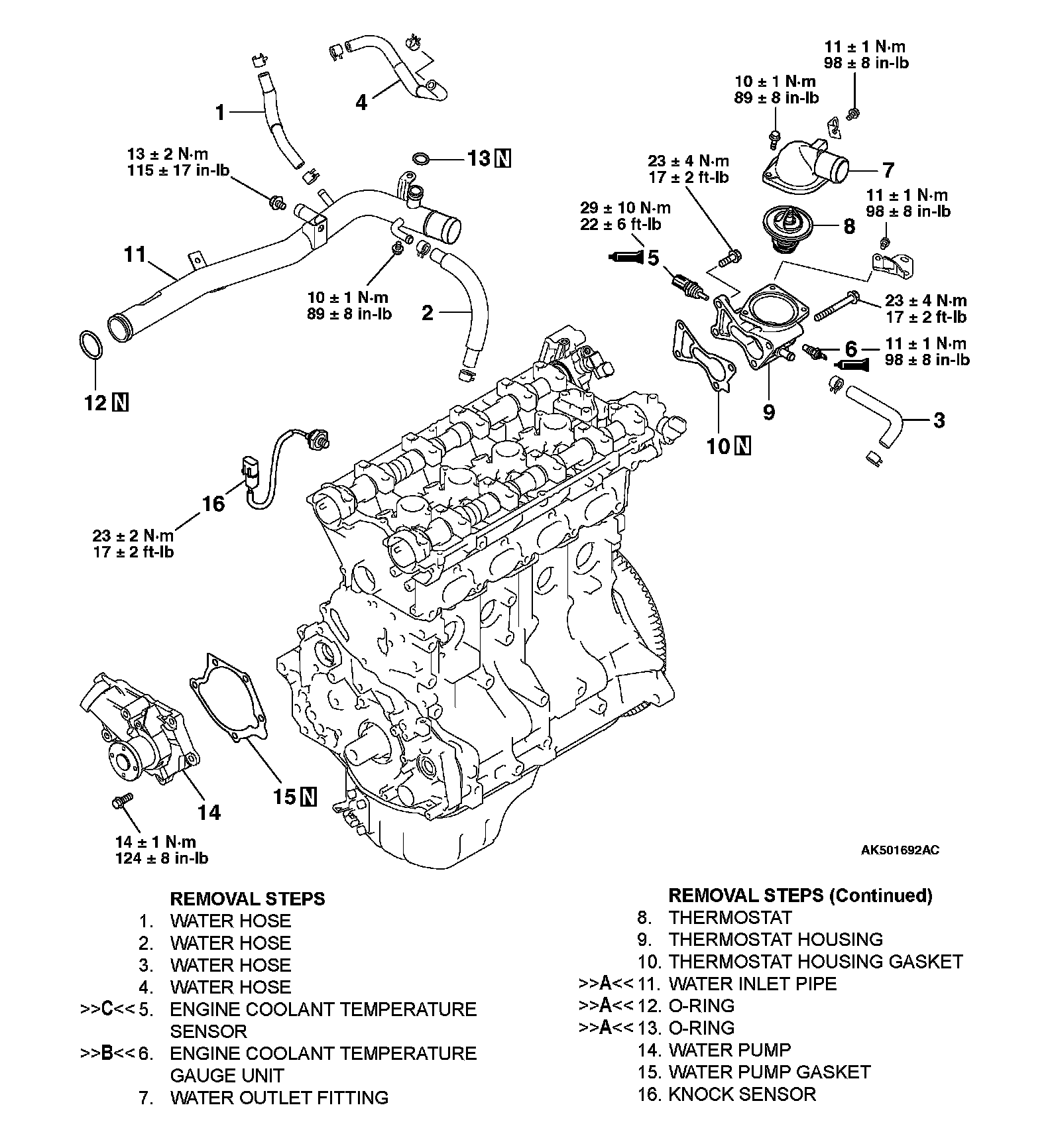

Removal Steps 1-16:

INSTALLATION SERVICE POINTS
]]A[[ WATER INLET PIPE / O-RING INSTALLATION

CAUTION:
^ Never apply any oil or grease to the O-ring.
^ Secure the water inlet pipe after the thermostat housing has been installed.

Replace the O-rings at both ends of the water inlet pipe with new ones. Insert the O-rings into the water pump and thermostat housing after wetting their peripheries with water.

]]B[[ ENGINE COOLANT TEMPERATURE GAUGE UNIT INSTALLATION





1. When reusing the gauge unit, clean its thread.

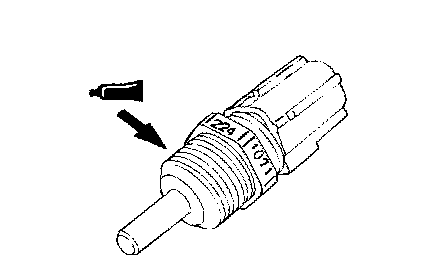

2. Apply 3M(TM) AAD Part number 8672 or equivalent to the engine coolant temperature gauge unit.

>]C[ ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION





1. When reusing the sensor, clean its thread.

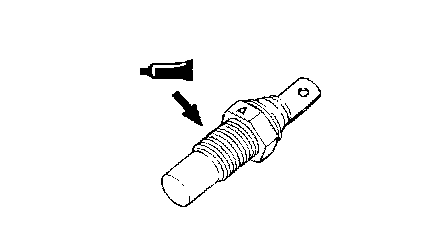

2. Apply 3M(TM) AAD Part number 8731 or equivalent to the engine coolant temperature sensor.
