Intake Manifold

INTAKE MANIFOLD

REMOVAL AND INSTALLATION

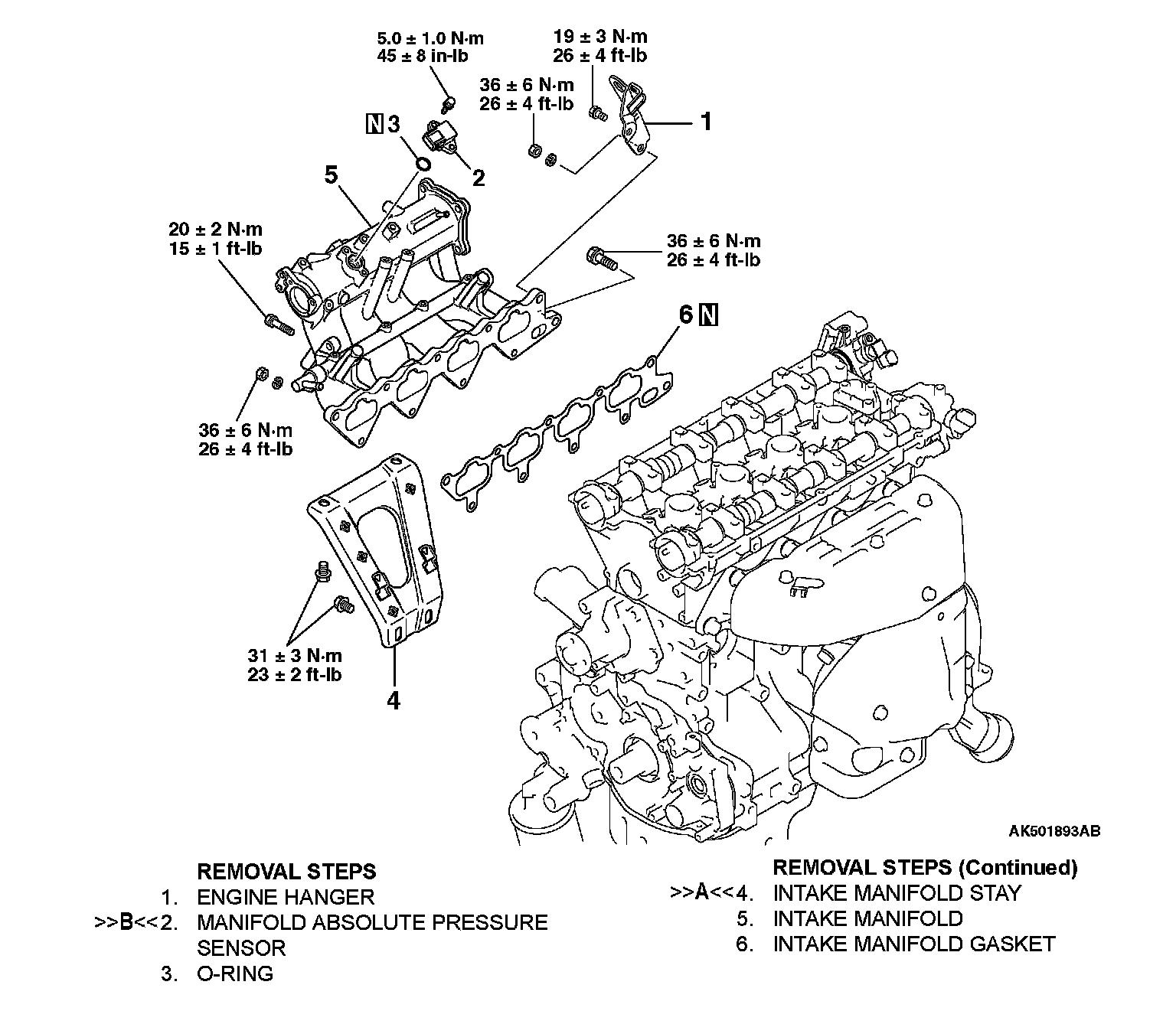

Removal Steps 1-6:

INSTALLATION SERVICE POINTS

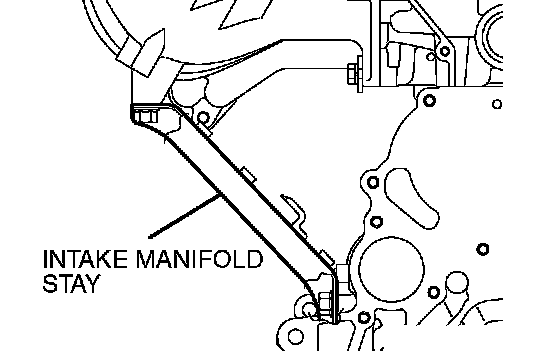

]]A[[ INTAKE MANIFOLD STAY INSTALLATION





Tighten the bolts to the specified torque on both ends after making sure that the stay is in close contact with the bosses on the intake manifold and cylinder block.
Tightening torque: 31 ± 3 Nm (23 ± 2 ft. lbs.)

]]B[[ MANIFOLD ABSOLUTE PRESSURE SENSOR INSTALLATION

CAUTION:
^ Install the manifold absolute pressure sensor carefully. Do not expose the sensor to any physical shock.
^ Do not use the sensor that has fallen to floor or any other surface.
