Engine Mounting

REMOVAL AND INSTALLATION

CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

INSTALLATION SERVICE POINT
]]A[[ ENGINE FRONT MOUNTING CUSHION STOPPER INSTALLATION

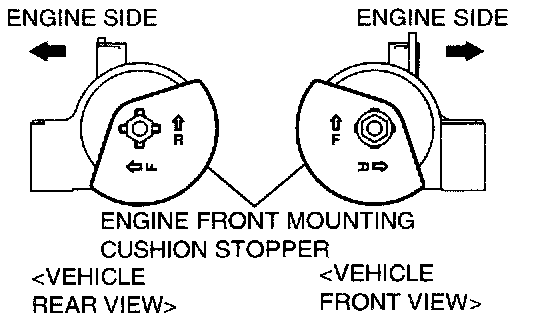

Arrow marks on the engine front mounting cushion stopper should face the shown direction.

NOTE: Disregard F and R stamped as a shared part.

INSPECTION
^ Check the engine front mounting insulator for cracks, separation or deformation.
^ Check the engine front mounting cushion stoppers for deformation.
