Engine Mount: Description and Operation
GENERAL DESCRIPTIONInertia principal axes system is incorporated into the engine mount system.
^ The liquid-filled mount system have been adopted for engine mounting and transaxle mounting to improve ride feeling by optimizing the insulator.
^ Installation of roll stopper in the upper area has reduced engine rolling. Furthermore, enlargement of insulator diameter has reduced idle vibration.

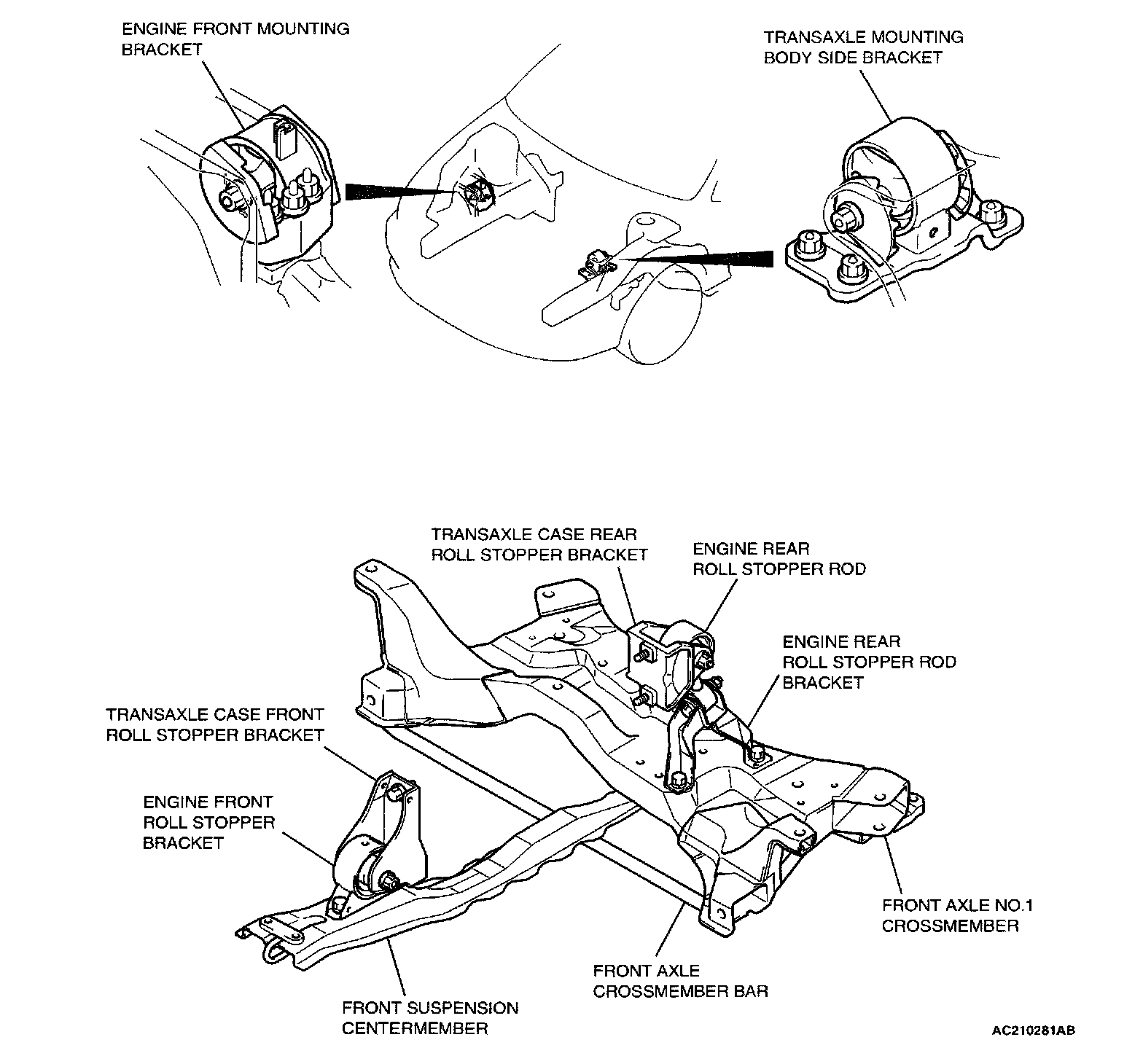

CONSTRUCTION DIAGRAM
