Engine - Revised Valve Guide/Valve Stem Specifications
No: TSB-05-11-004DATE: December, 2005
MODEL: 2003-06 Evolution
SUBJECT:
CYLINDER HEAD VALVE GUIDE
AND VALVE STEM SPECIFICATIONS
- SERVICE MANUAL REVISION
TSB Revision: TSB-05-11-004
PURPOSE
Service specifications for the 4G63 engine valve guide inside diameter and valve stem outside diameter are incorrect in the affected service manual pages. This bulletin contains corrected service specifications.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2003-2006 Lancer Evolution
AFFECTED SERVICE MANUALS
2003 Lancer Evolution, pages 11B-72 and 11 B-73
2004 Lancer Evolution, pages 11B-73 and 11 B-74
2005 Lancer Evolution, pages 11B-74 and 11 B-75
2006 Lancer Evolution, page 11B-80

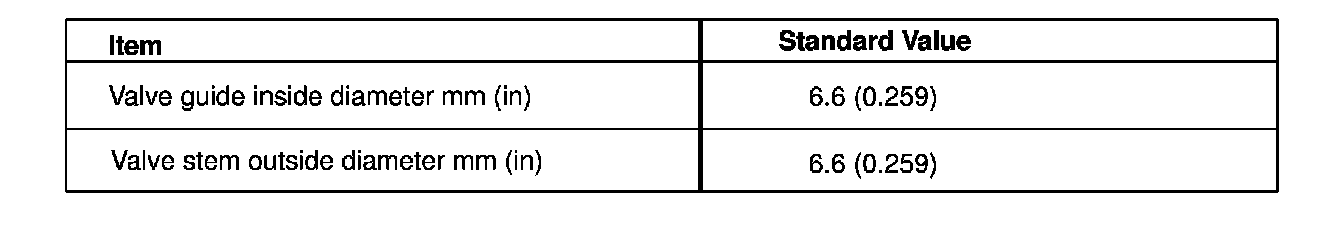

SERVICE SPECIFICATIONS
