Removal and Installation

Removal And Installation:

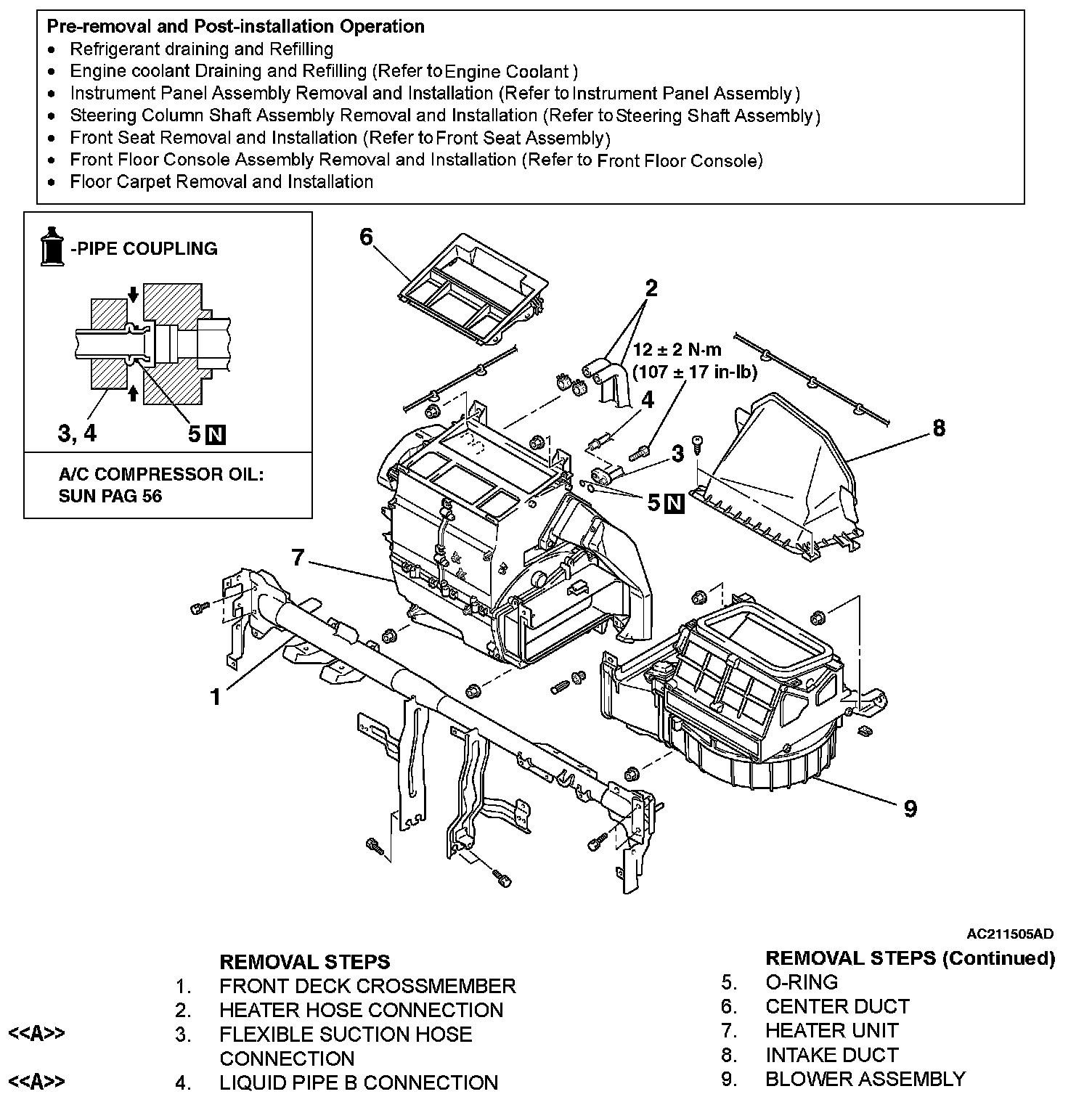

REMOVAL AND INSTALLATION

WARNING: When removing and installing the heater unit, do not let it bump against the SRS-ECU or the components.

REMOVAL SERVICE POINT

<> FLEXIBLE SUCTION HOSE AND LIQUID PIPE B DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples.

To prevent the entry of dust or other foreign material, plug the dismantled hose and the nipples of the expansion valves.
