Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering and Suspension >> Steering Gear >> Removal and Installation

Removal and Installation

Part 1 Of 2:




Part 2 Of 2:

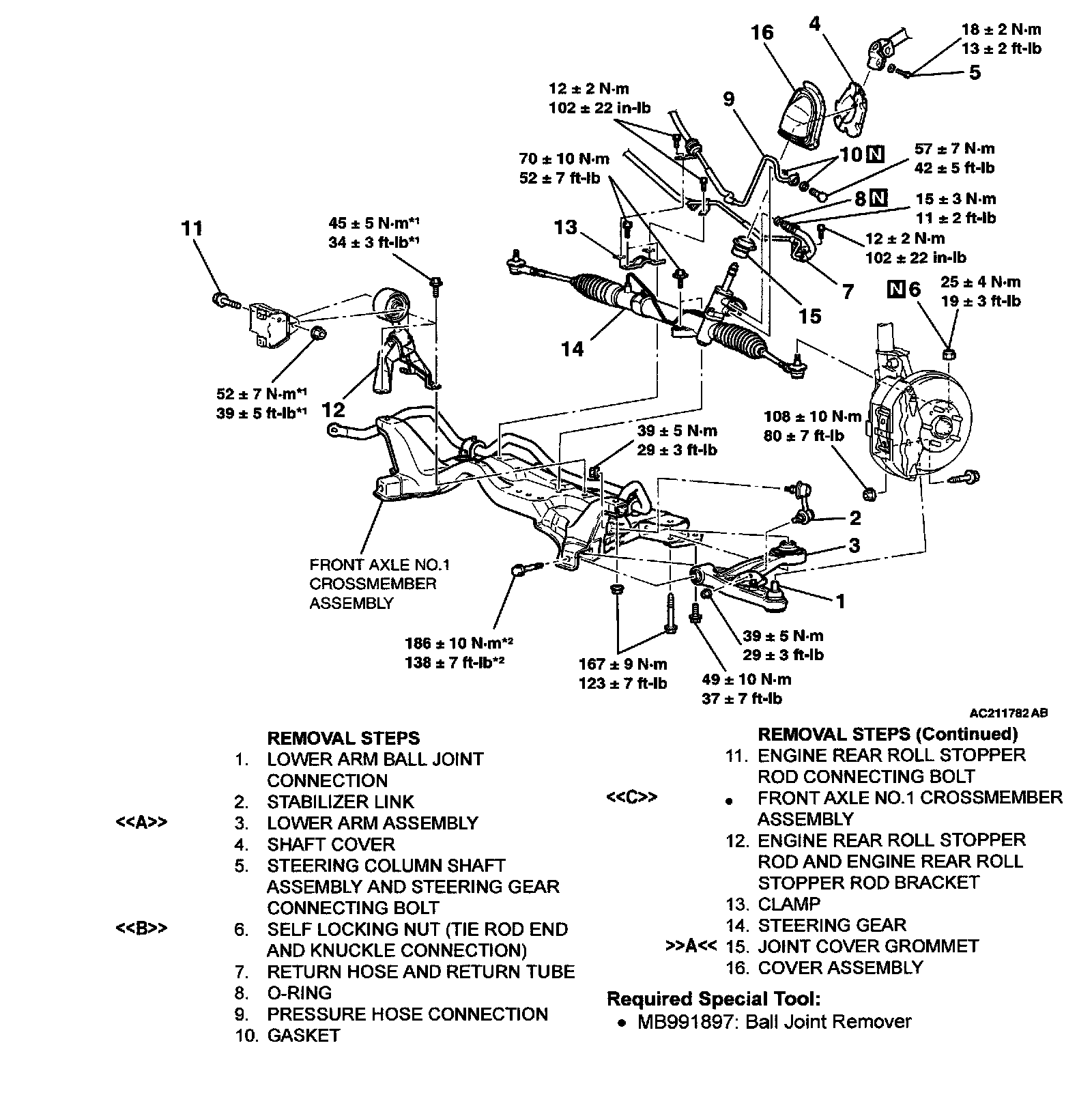

POWER STEERING GEAR BOX AND LINKAGE REPLACEMENT W/ RELATED COMPONENTS
