Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Delivery and Air Induction

Fuel Delivery and Air Induction

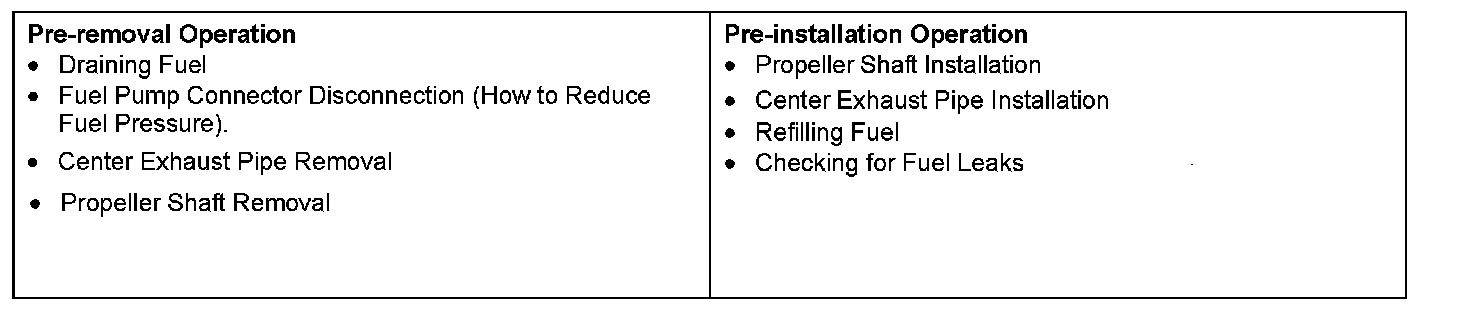

Pre-Removal Operation And Post-Installation Operation:

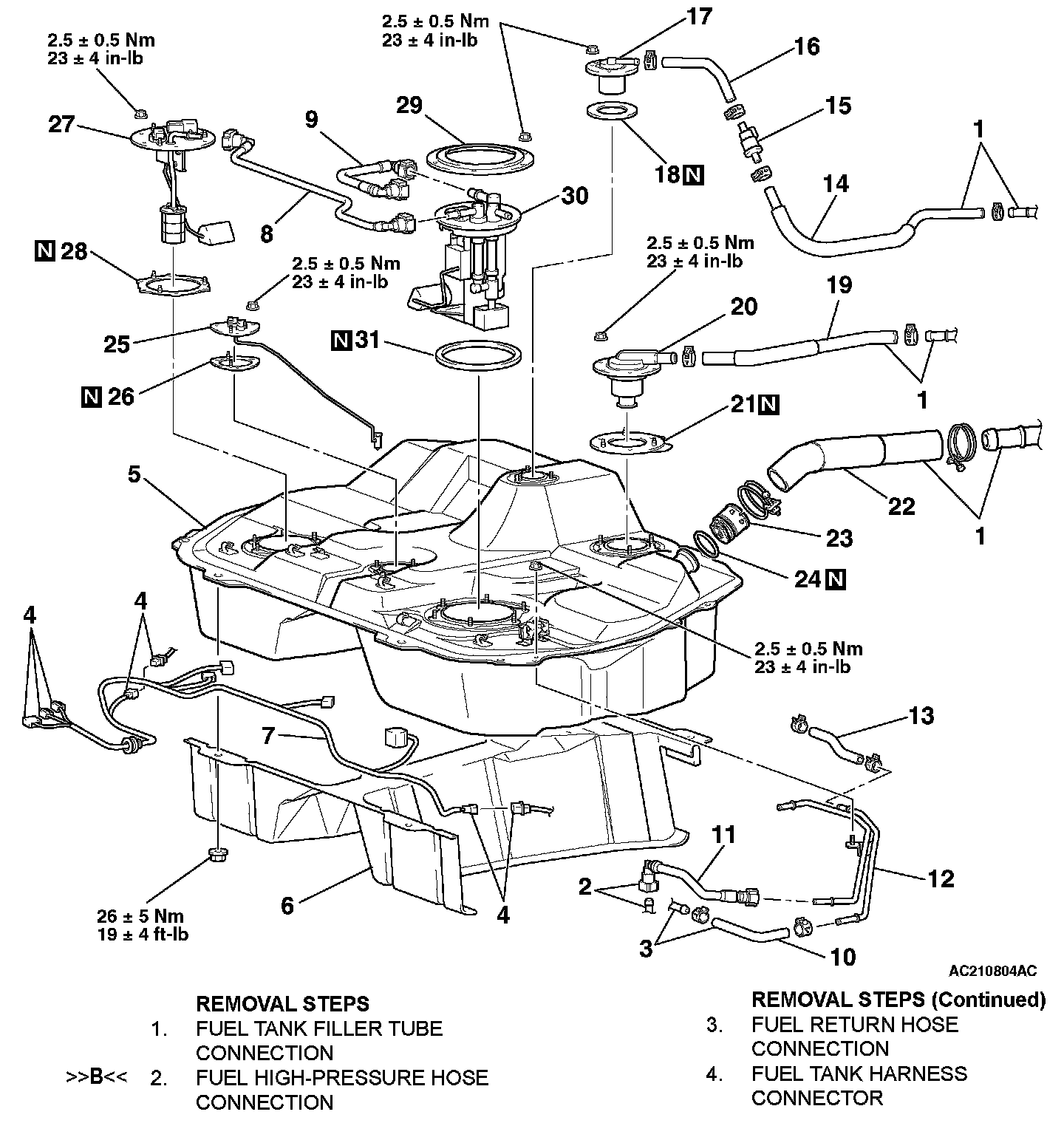

Removal Steps 1 - 4:

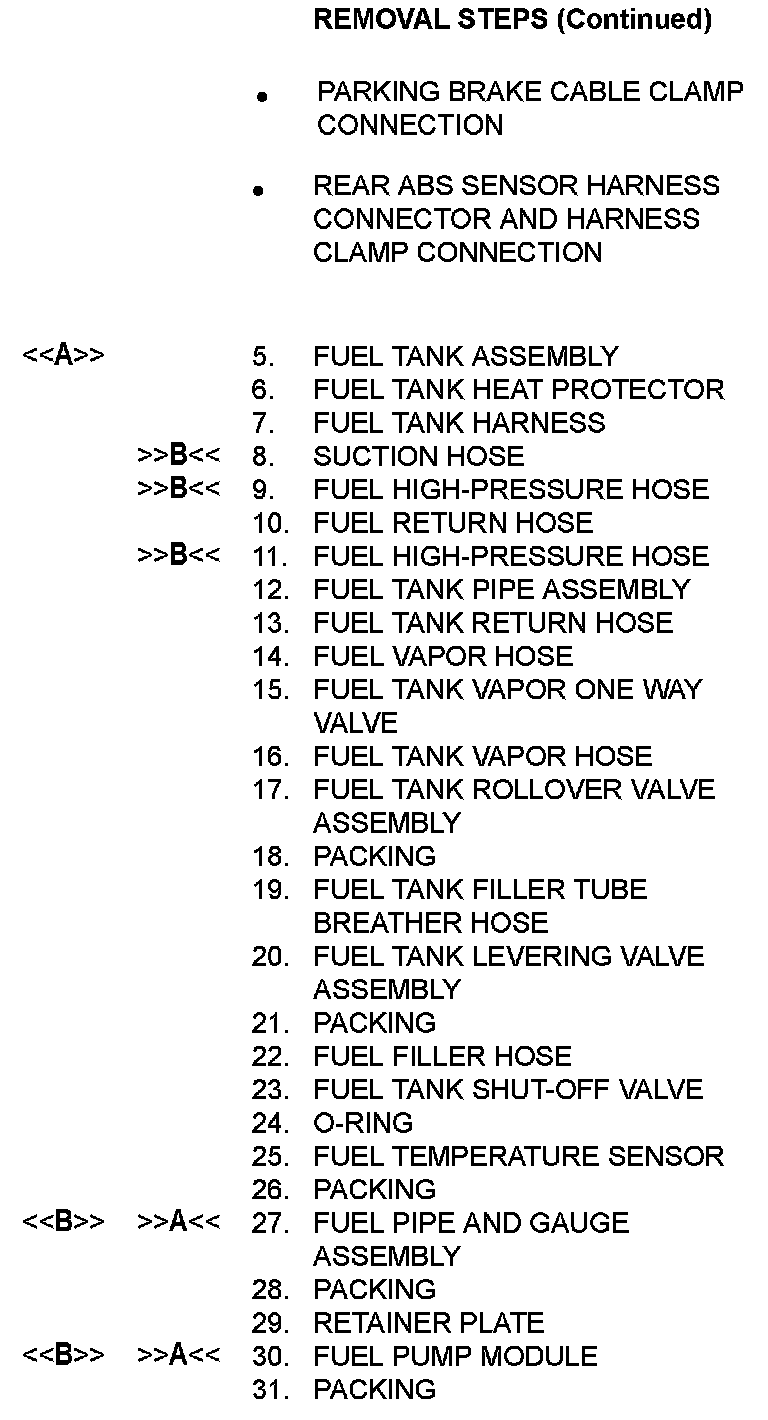

Removal Steps 4 (Continued) - 31:

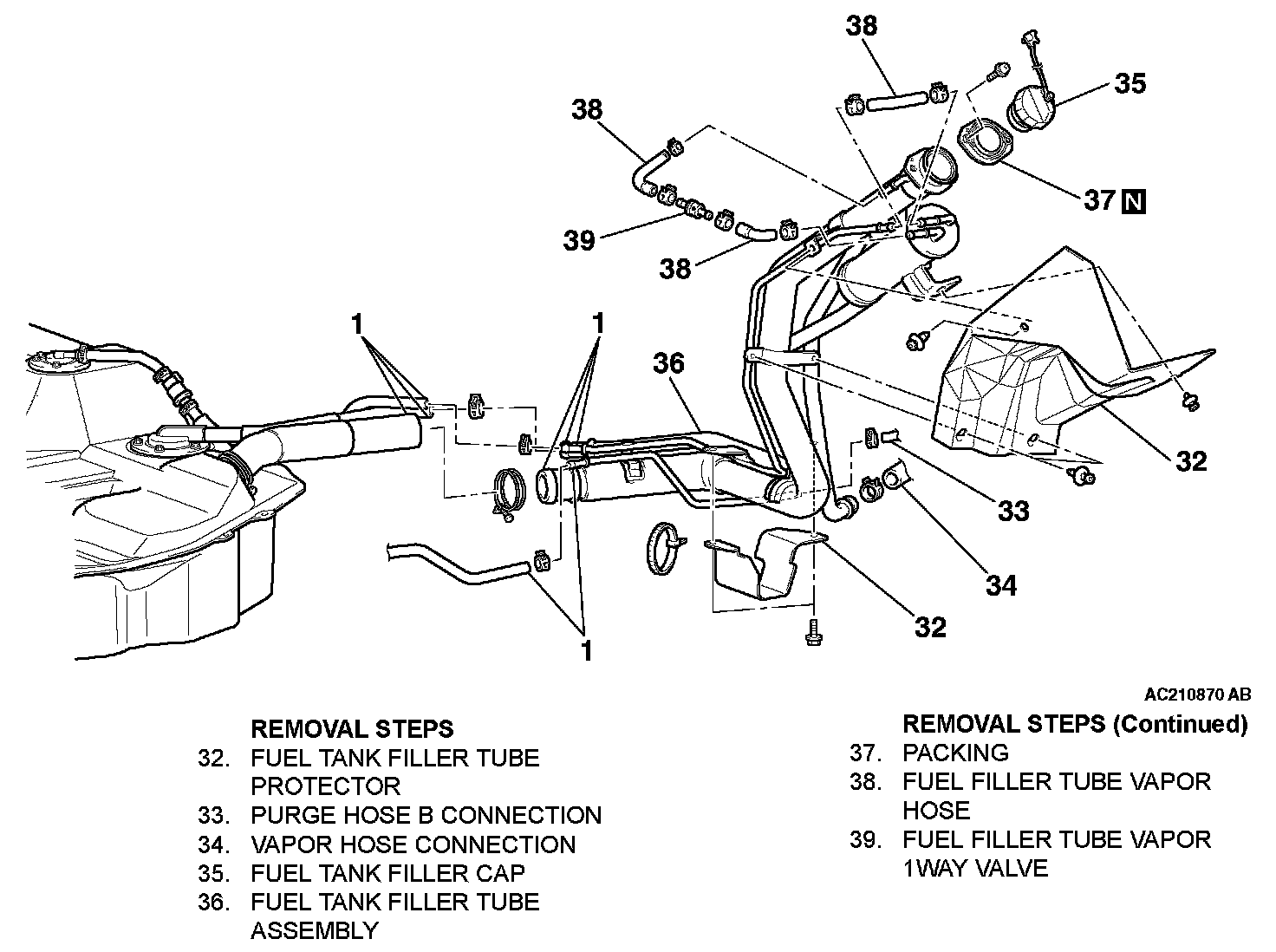

Removal Steps 32 - 39:
