Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Mount >> Engine Roll Stopper and Centermember

Engine Roll Stopper and Centermember

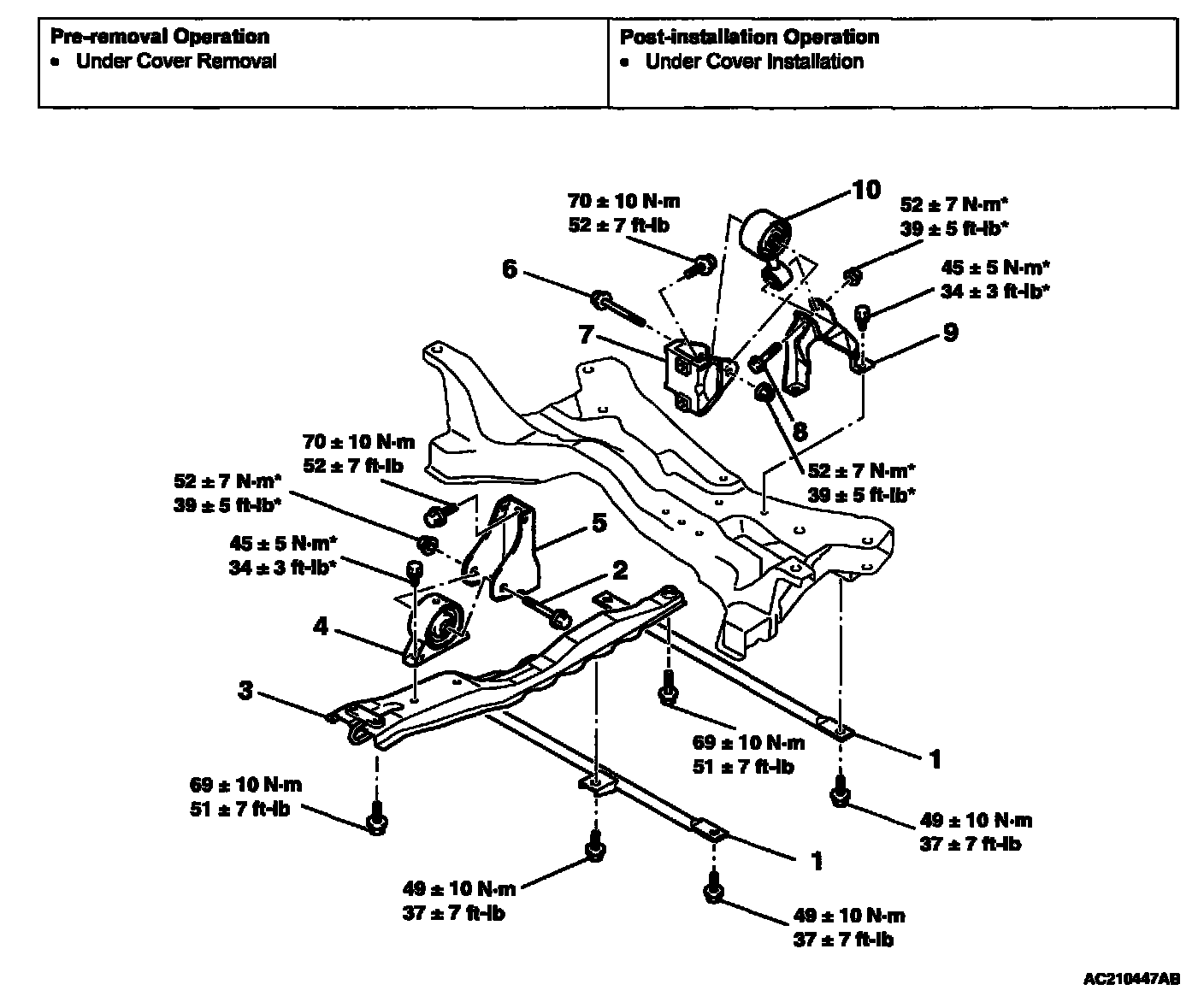

Part 1 Of 2:

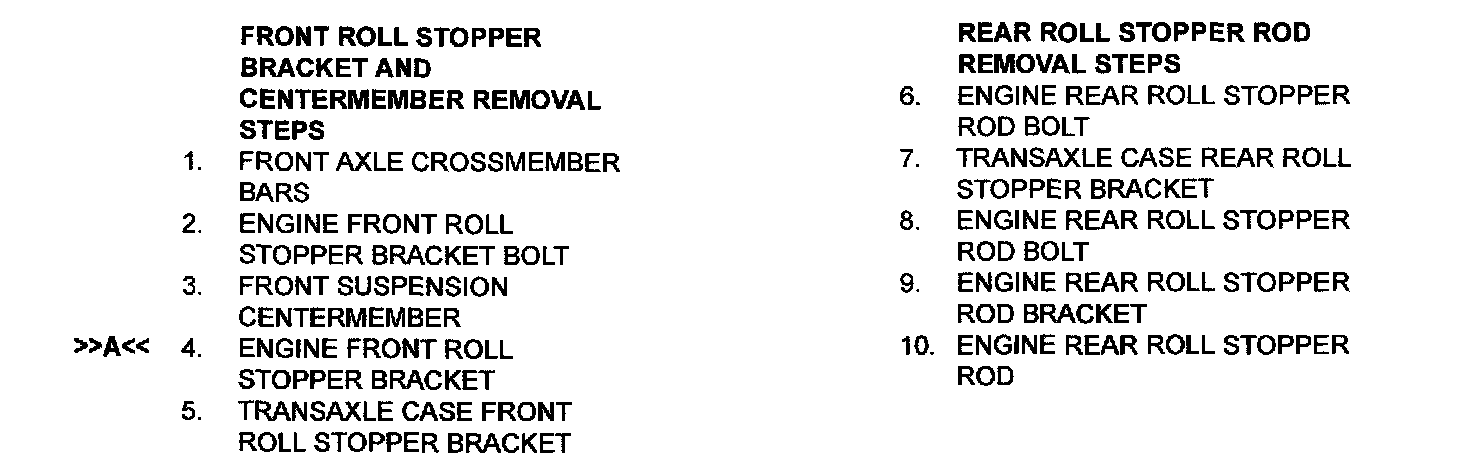

Part 2 Of 2:





ENGINE ROLL STOPPER AND CENTERMEMBER REPLACEMENT W/ RELATED COMPONENTS
