Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Master Cylinder

Brake Master Cylinder

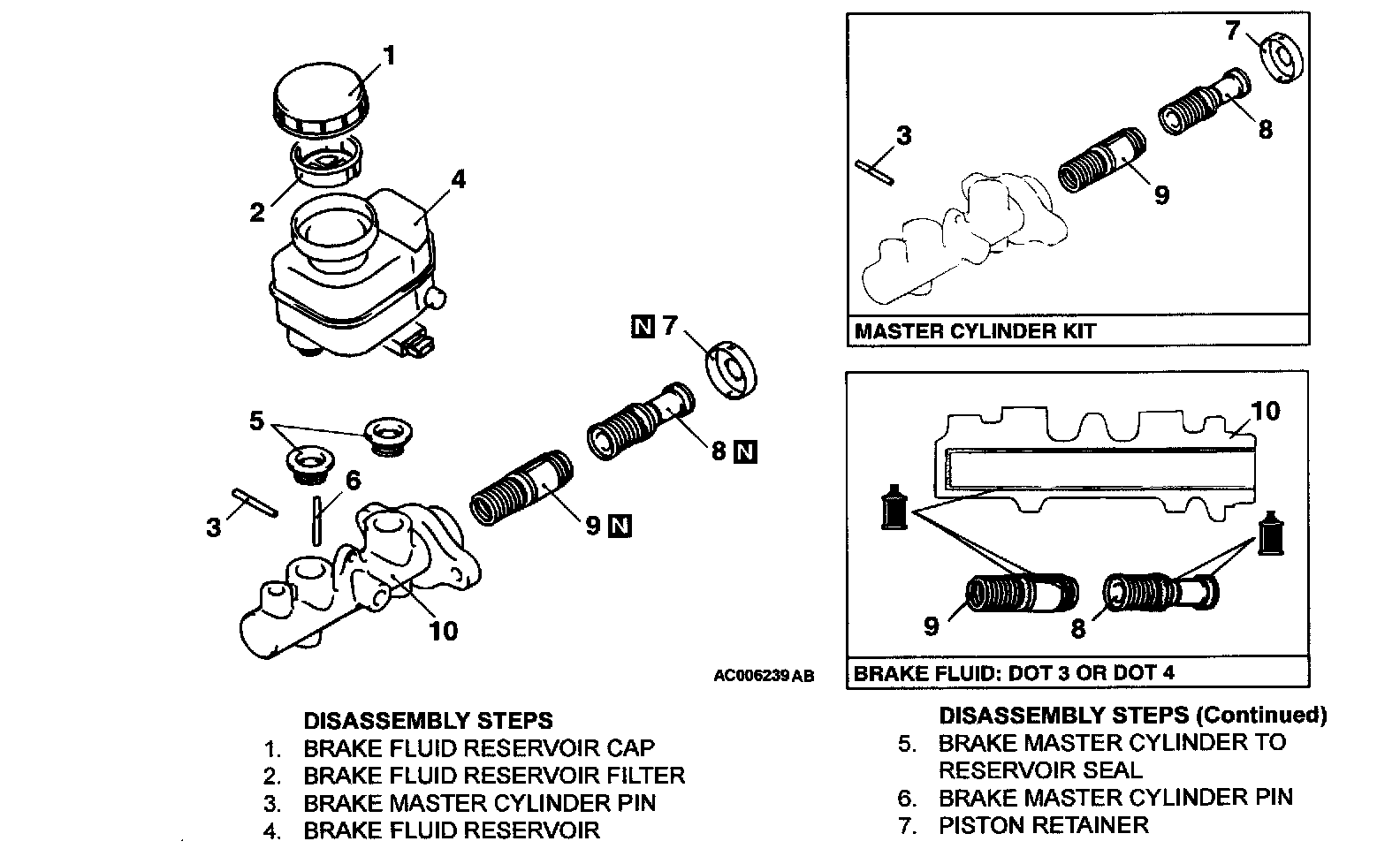

Part 1 Of 2:

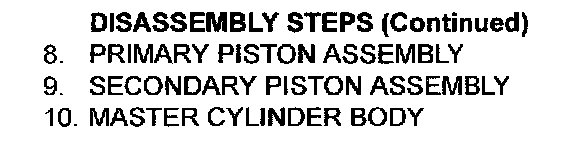

Part 2 Of 2:





MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER OVERHAUL W/ RELATED COMPONENTS
