Key Cylinder Lamp

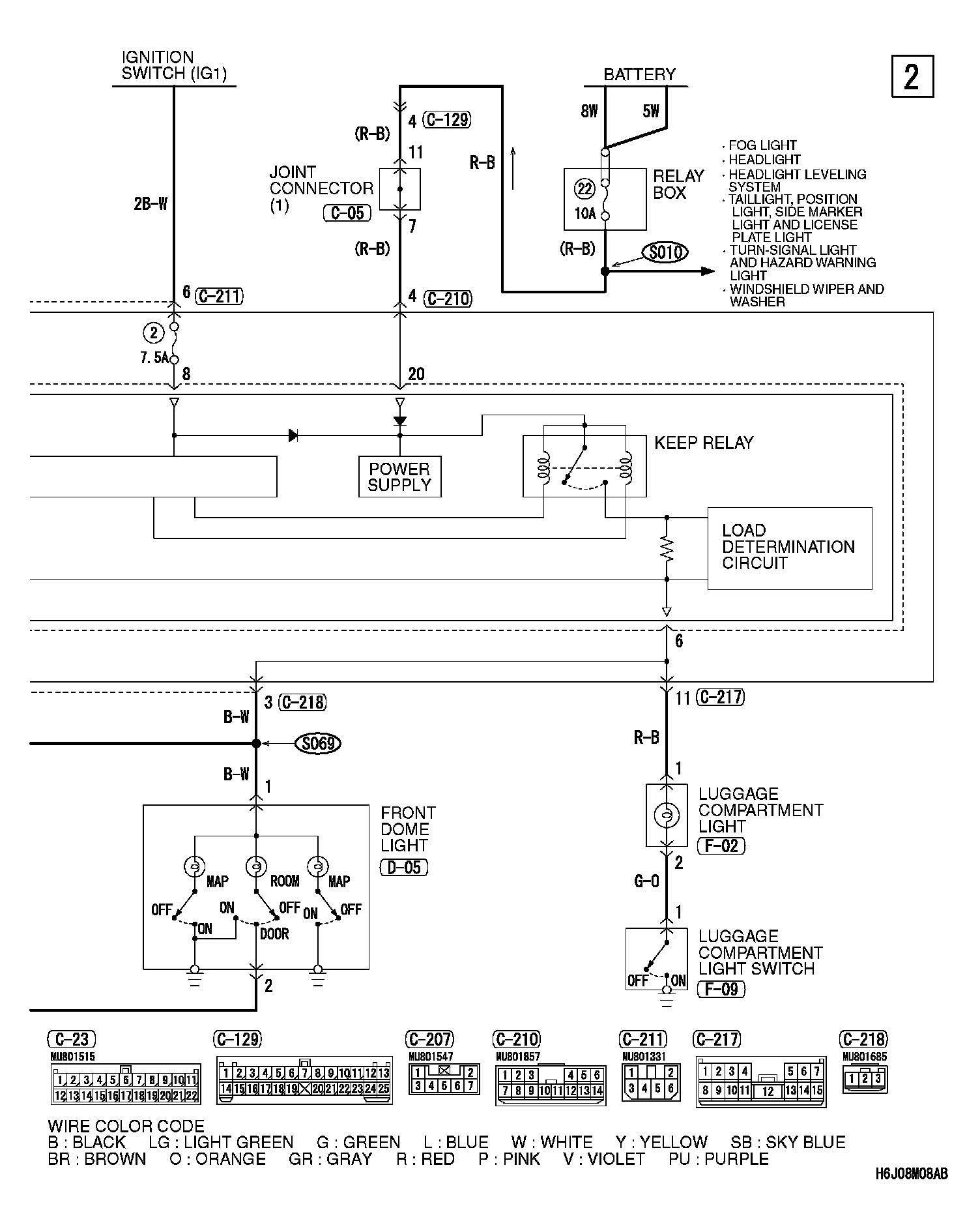

Dome Light, Luggage Compartment Light And Ignition Key Cylinder Illumination Light Part 1:

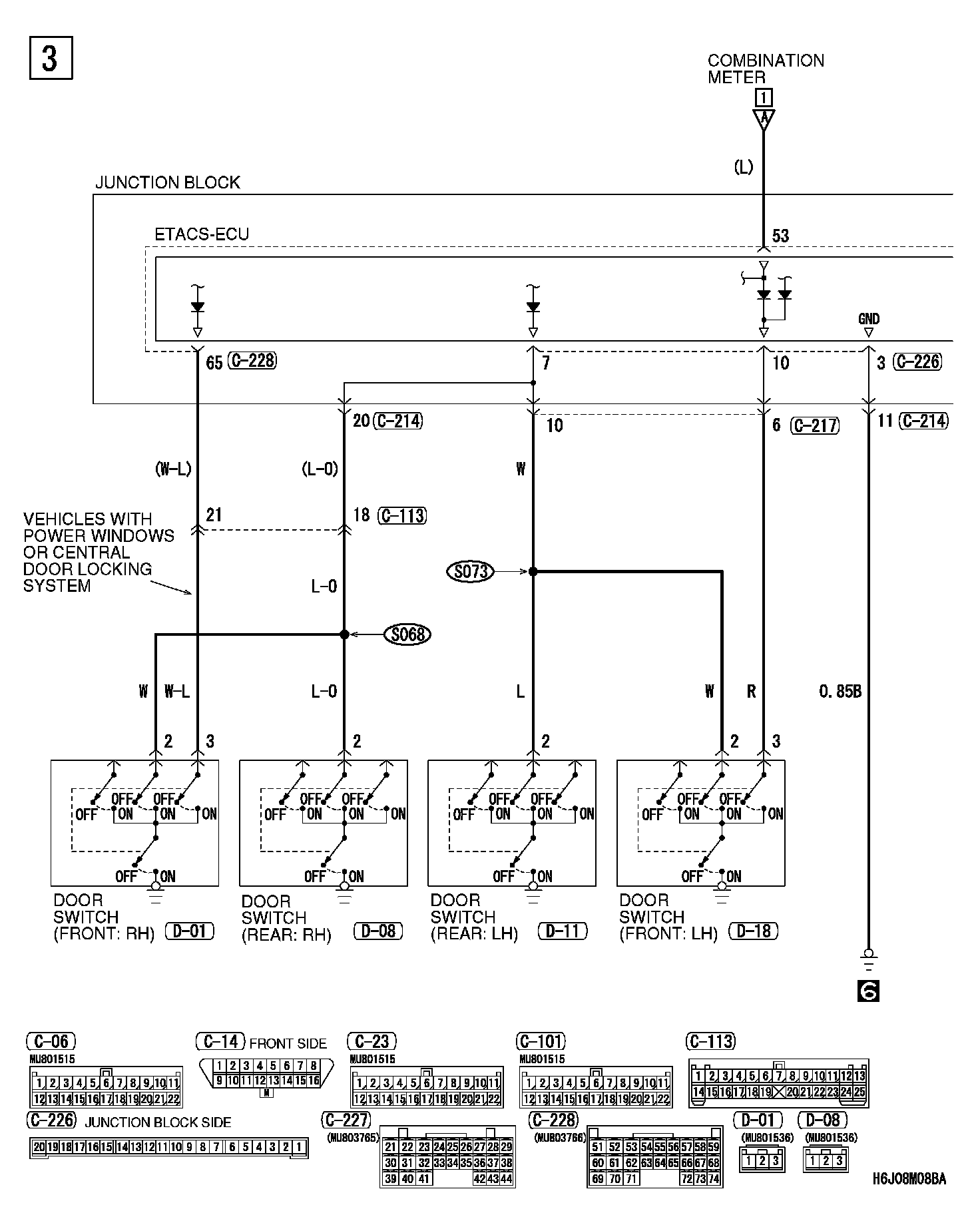

Dome Light, Luggage Compartment Light And Ignition Key Cylinder Illumination Light Part 2:

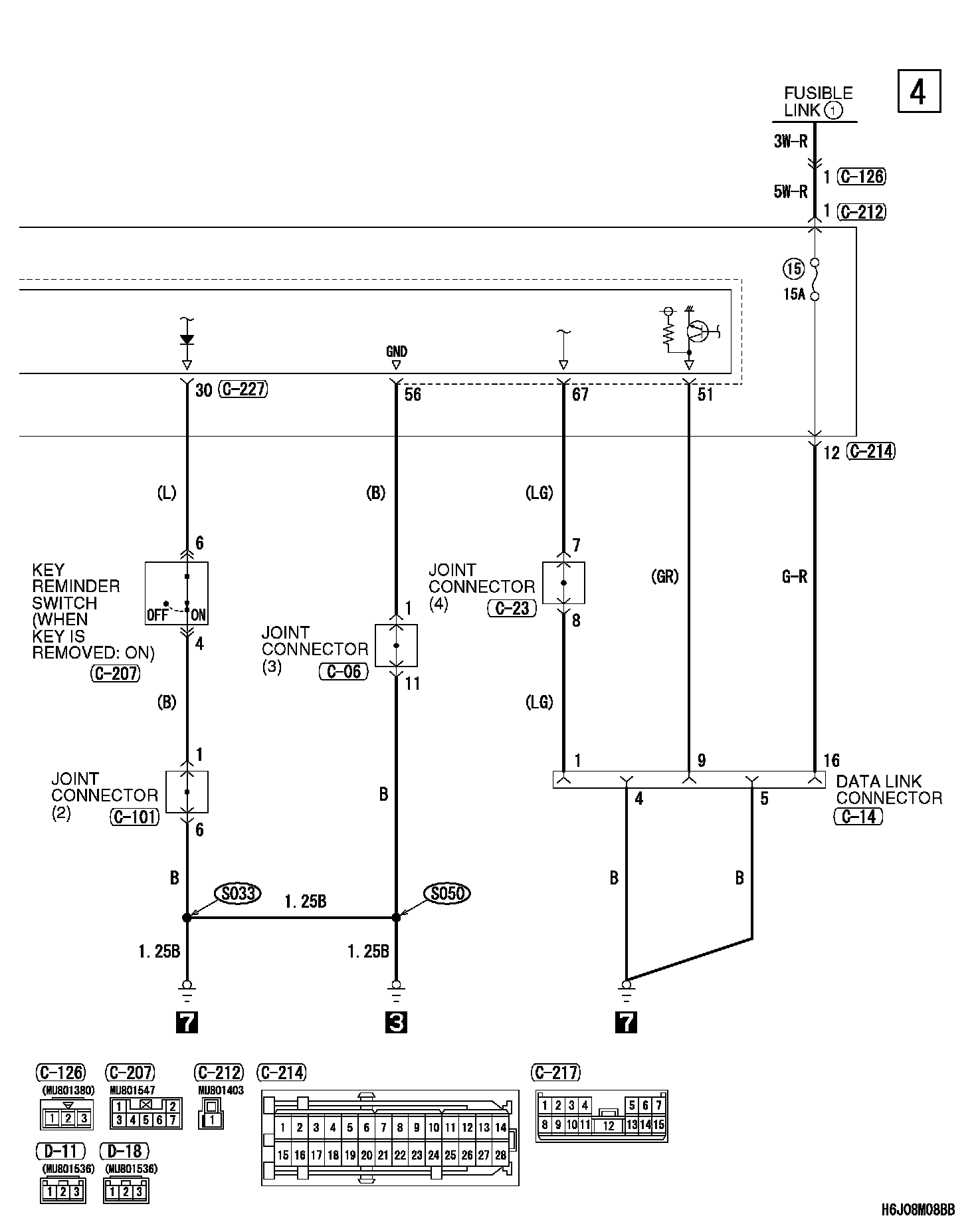

Dome Light, Luggage Compartment Light And Ignition Key Cylinder Illumination Light Part 3:

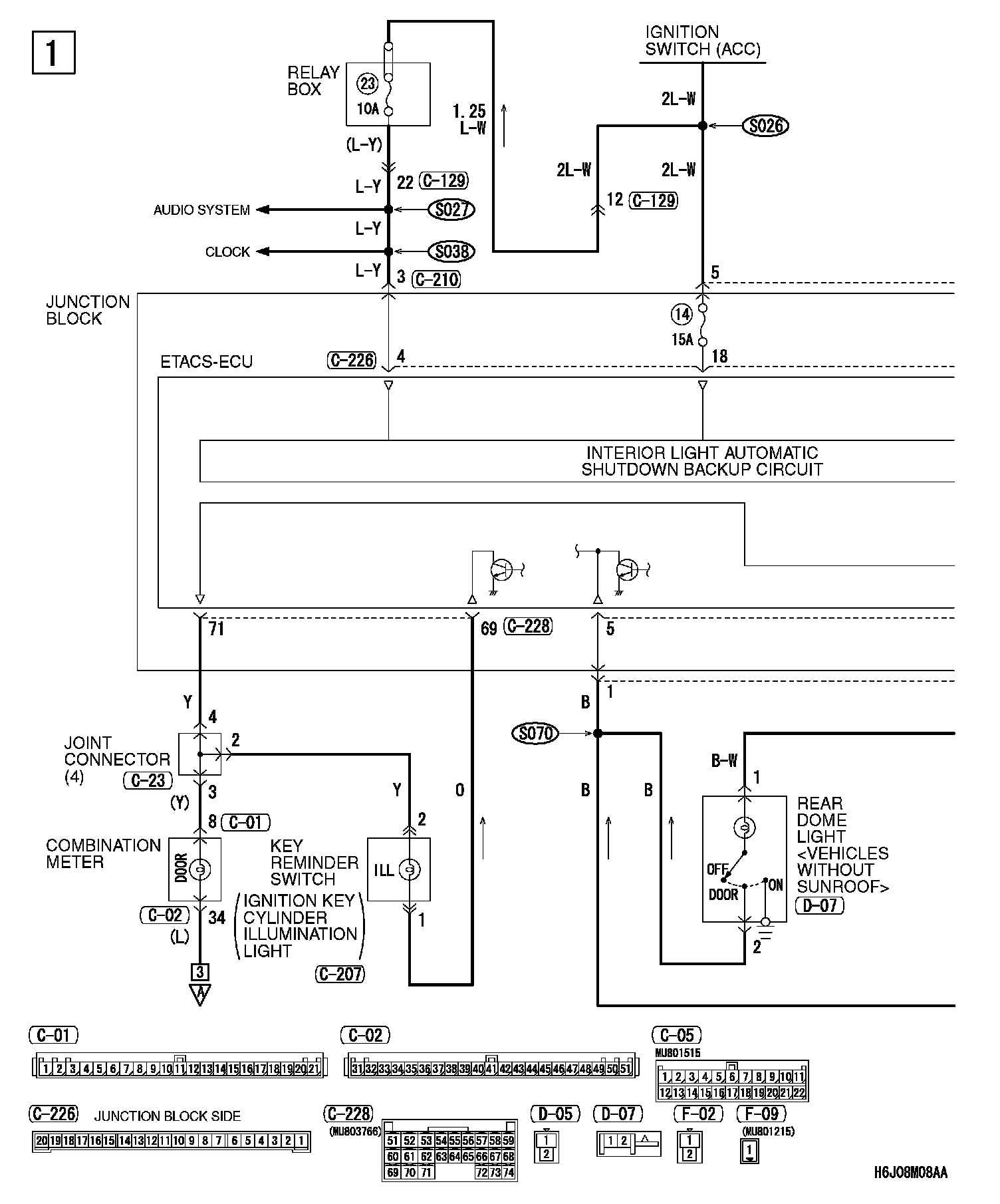

Dome Light, Luggage Compartment Light And Ignition Key Cylinder Illumination Light Part 4:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
