Antilock Brakes / Traction Control Systems

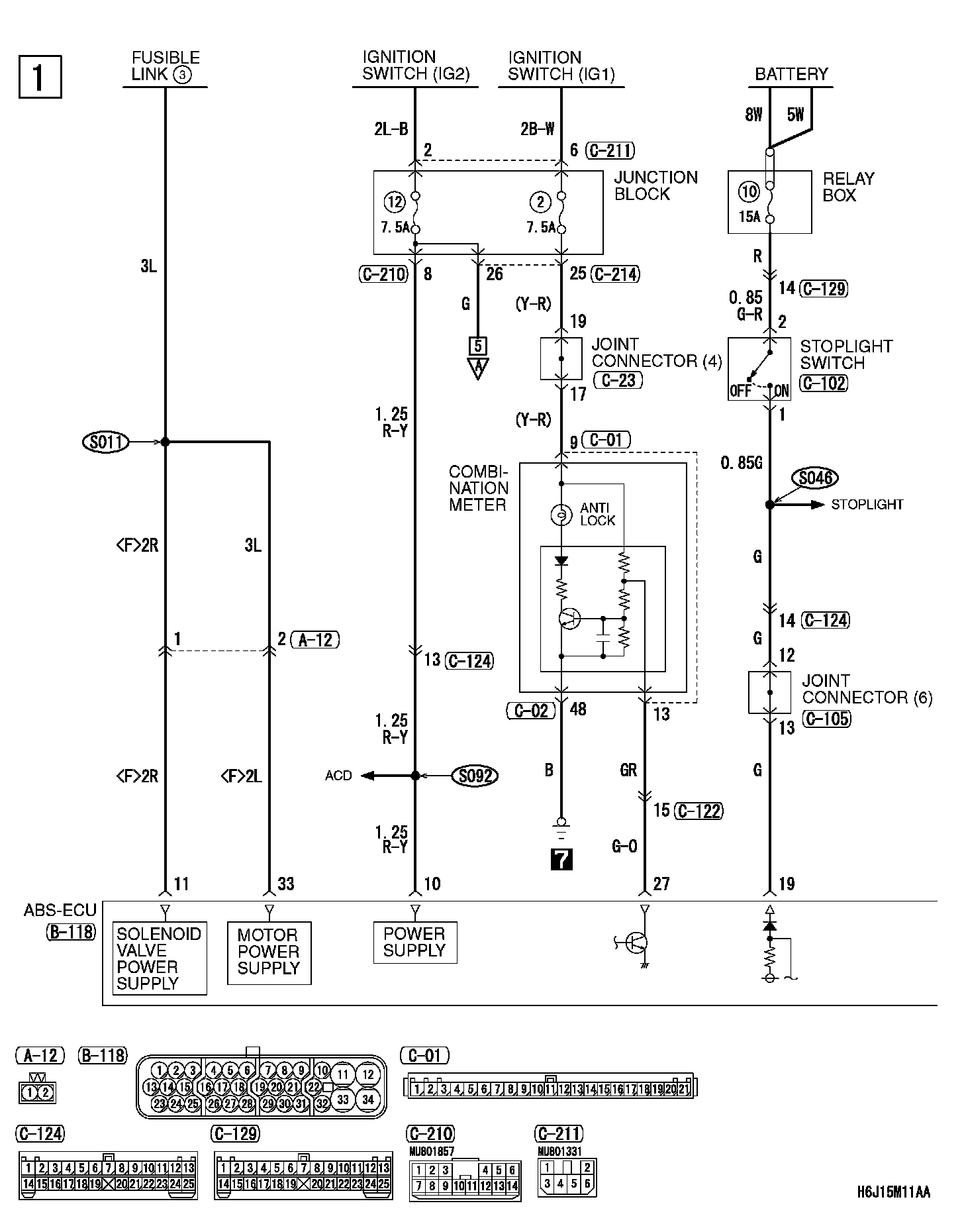

Anti-Lock Braking System (ABS) Part 1:

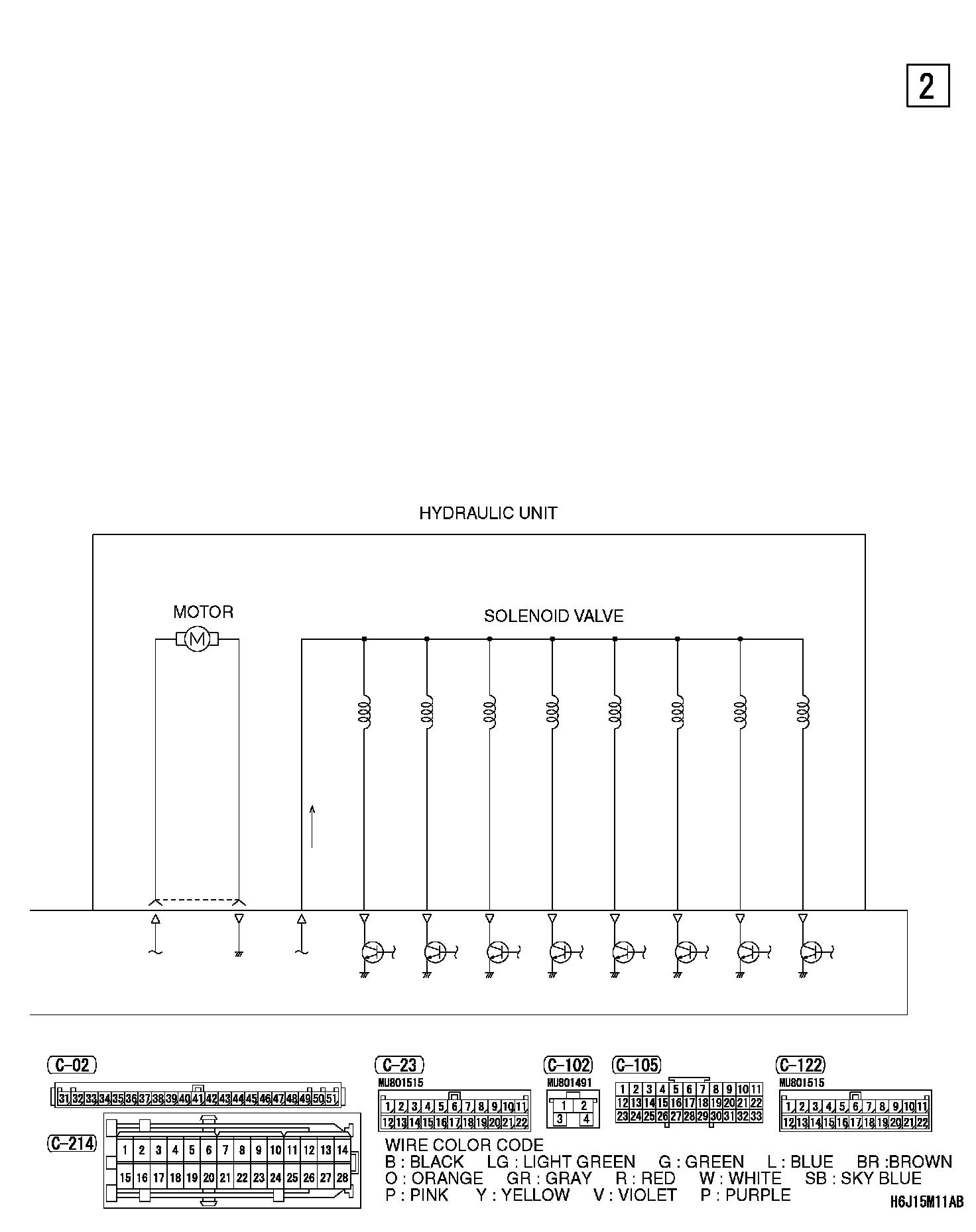

Anti-Lock Braking System (ABS) Part 2:

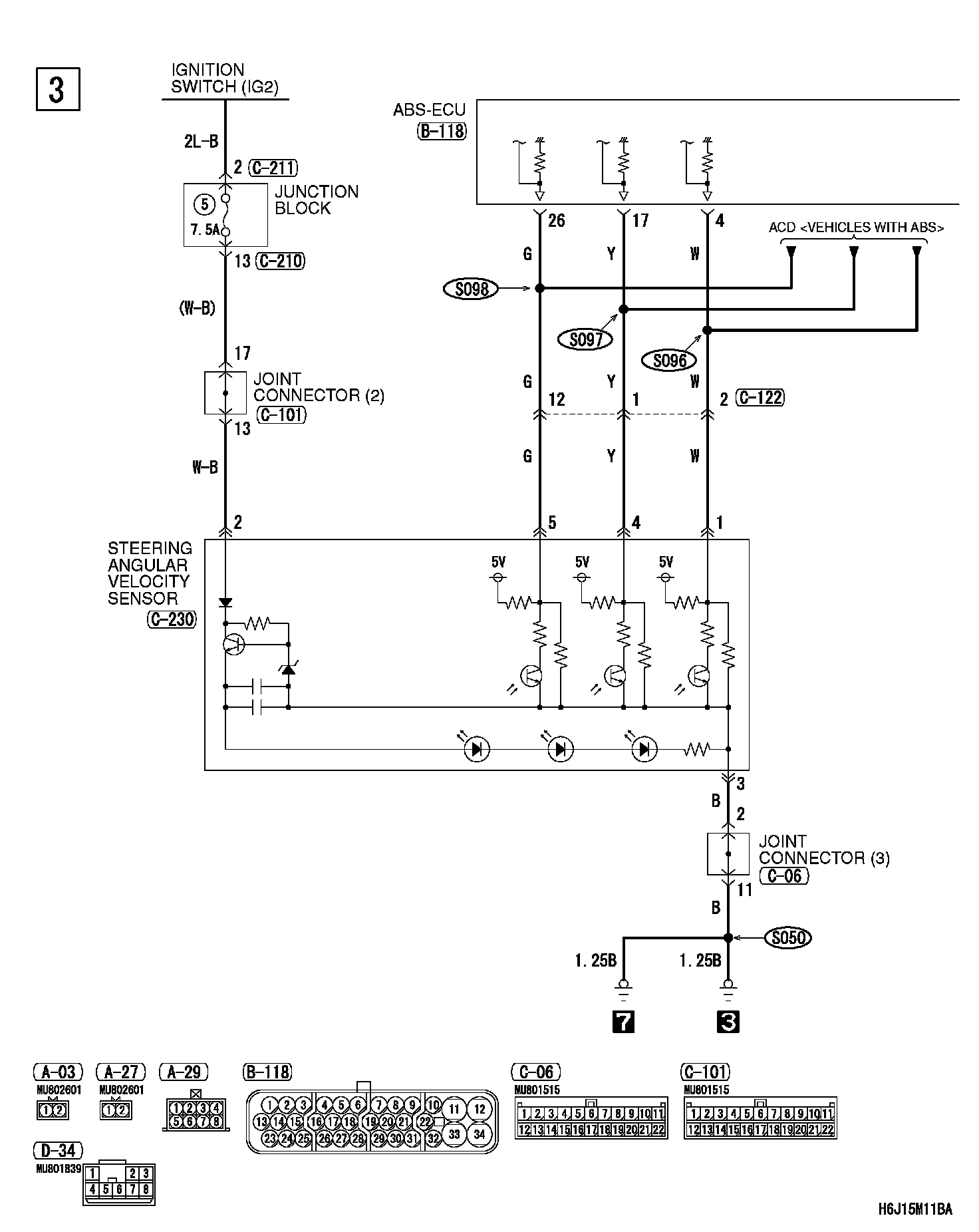

Anti-Lock Braking System (ABS) Part 3:

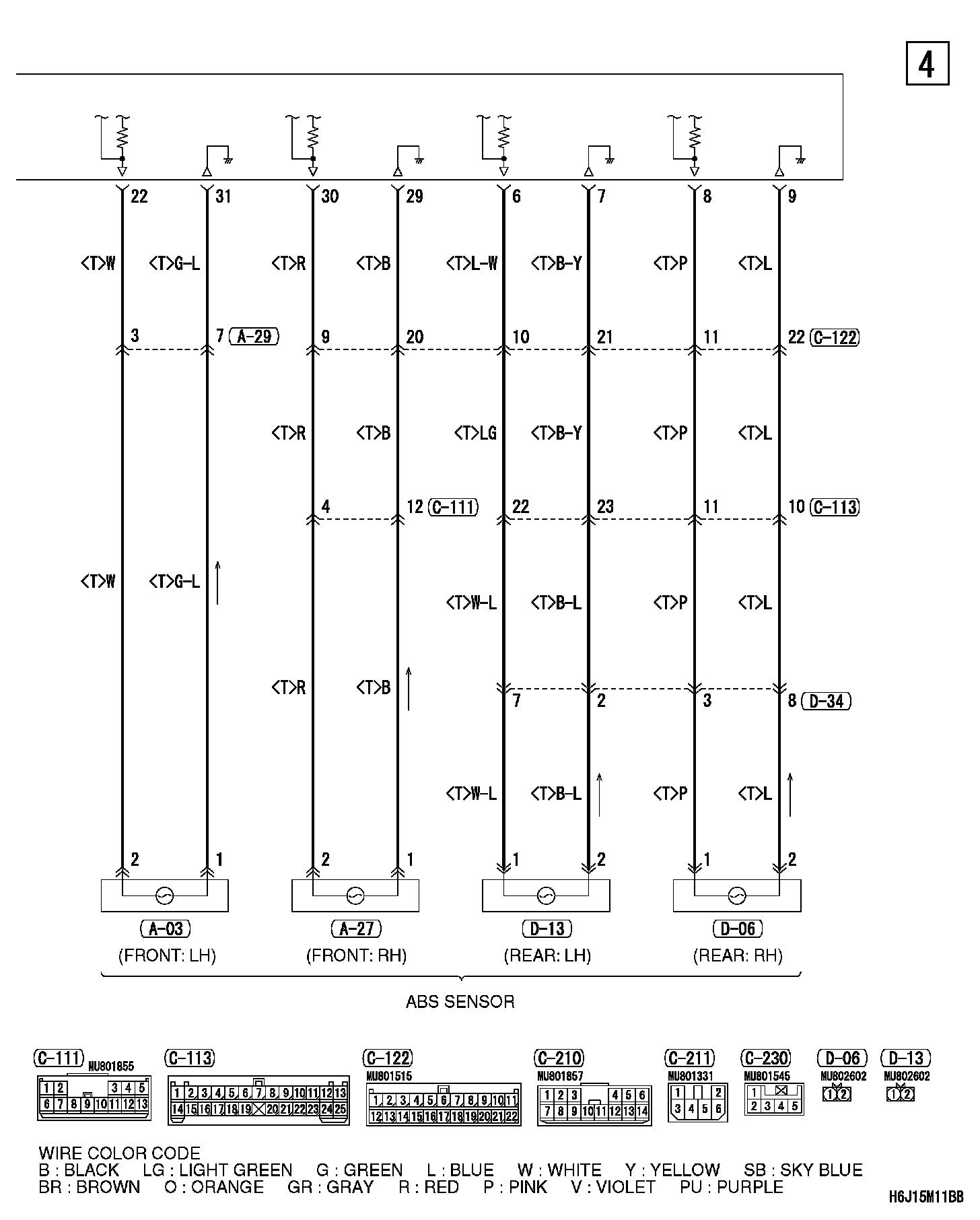

Anti-Lock Braking System (ABS) Part 4:

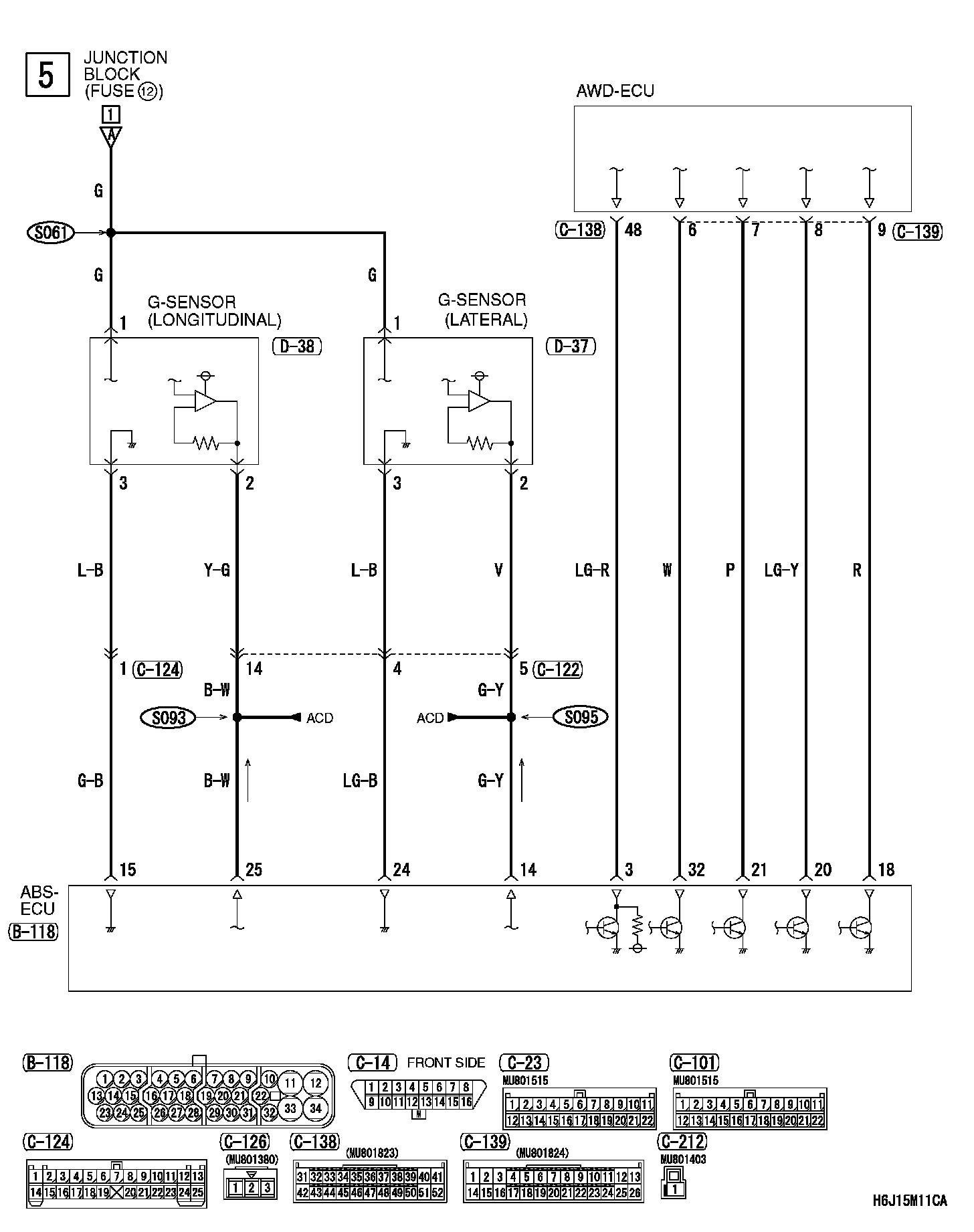

Anti-Lock Braking System (ABS) Part 5:

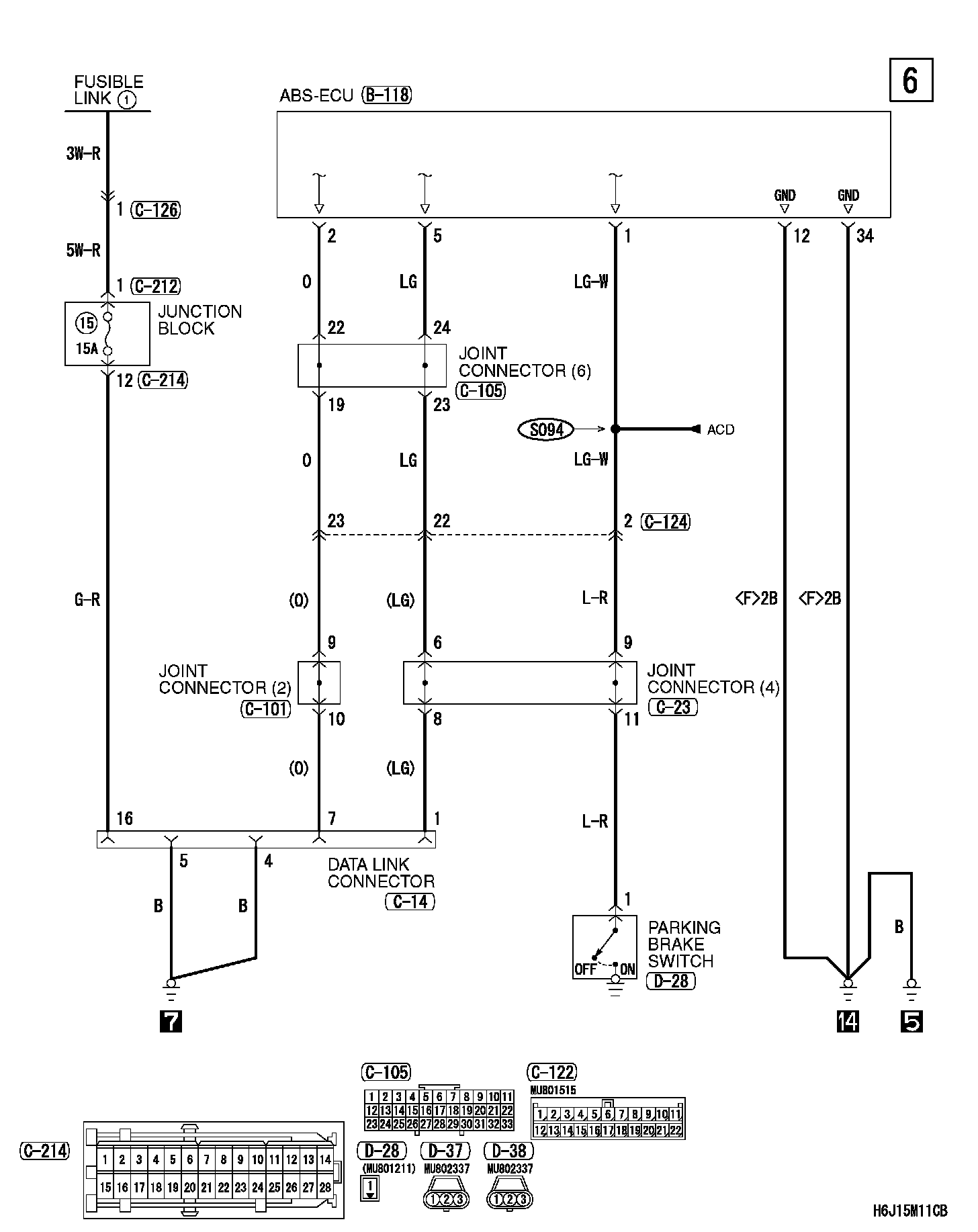

Anti-Lock Braking System (ABS) Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
