Disc Brake Rotor Check
Disc Brake Rotor Check
DISC BRAKE ROTOR CHECK
CAUTION:
Disc brakes must be kept within the allowable service values in order to maintain normal brake operation.

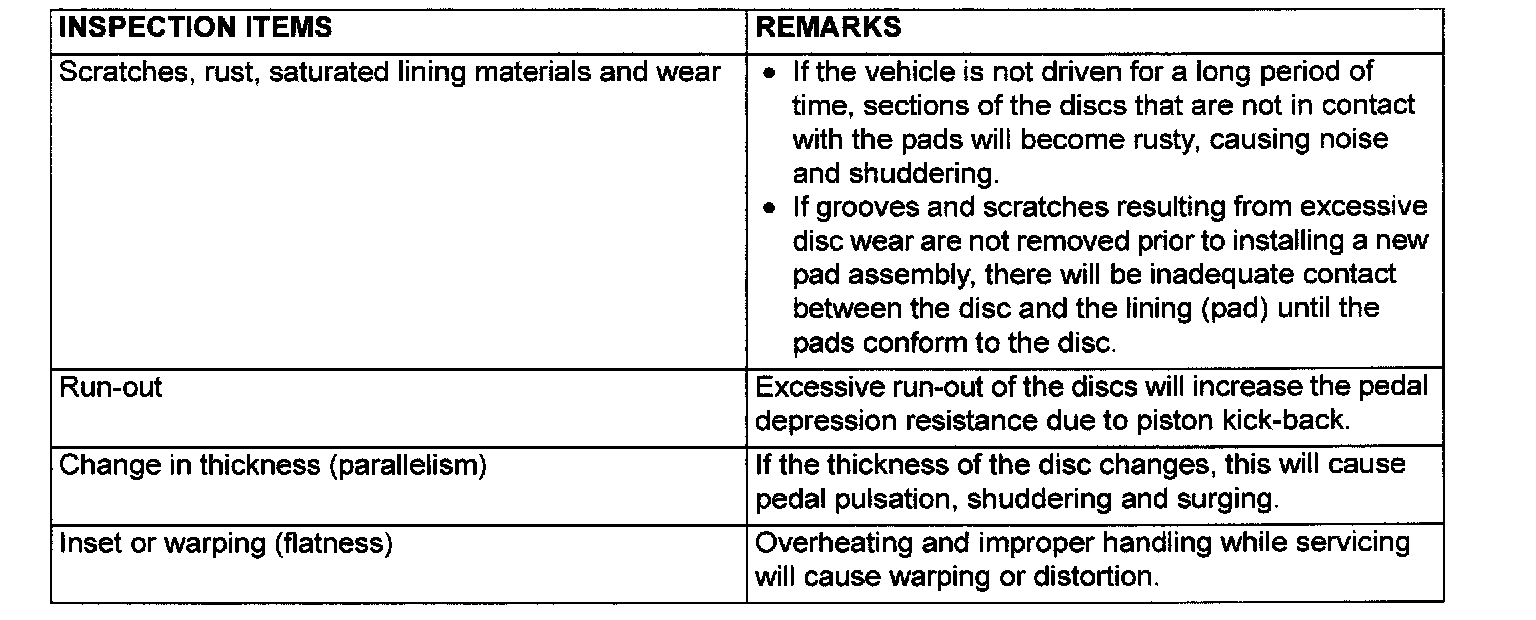

Before turning the brake disc, the following condition should be checked.
