Brake Pedal Assy: Service and Repair

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
>>A<< BRAKE PEDAL ASSEMBLY INSTALLATION

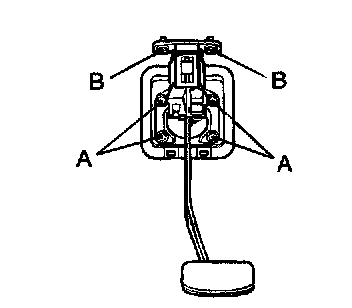

Tighten the brake booster mounting nuts (A), and then the brake pedal assembly mounting bolts (B).

NOTE: The brake pedal assembly cannot be positioned correctly if the brake pedal assembly mounting bolts (B) are tightened first, as the their holes are oblong holes.

INSPECTION
STOPLIGHT SWITCH CHECK

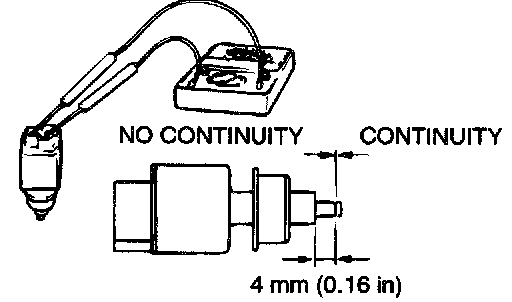

1. Connect an ohmmeter between the stoplight switch connector terminals.
2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.
