Stiffener and Damp Sheet Application Locations

STIFFENER AND DAMP SHEET APPLICATION LOCATIONS

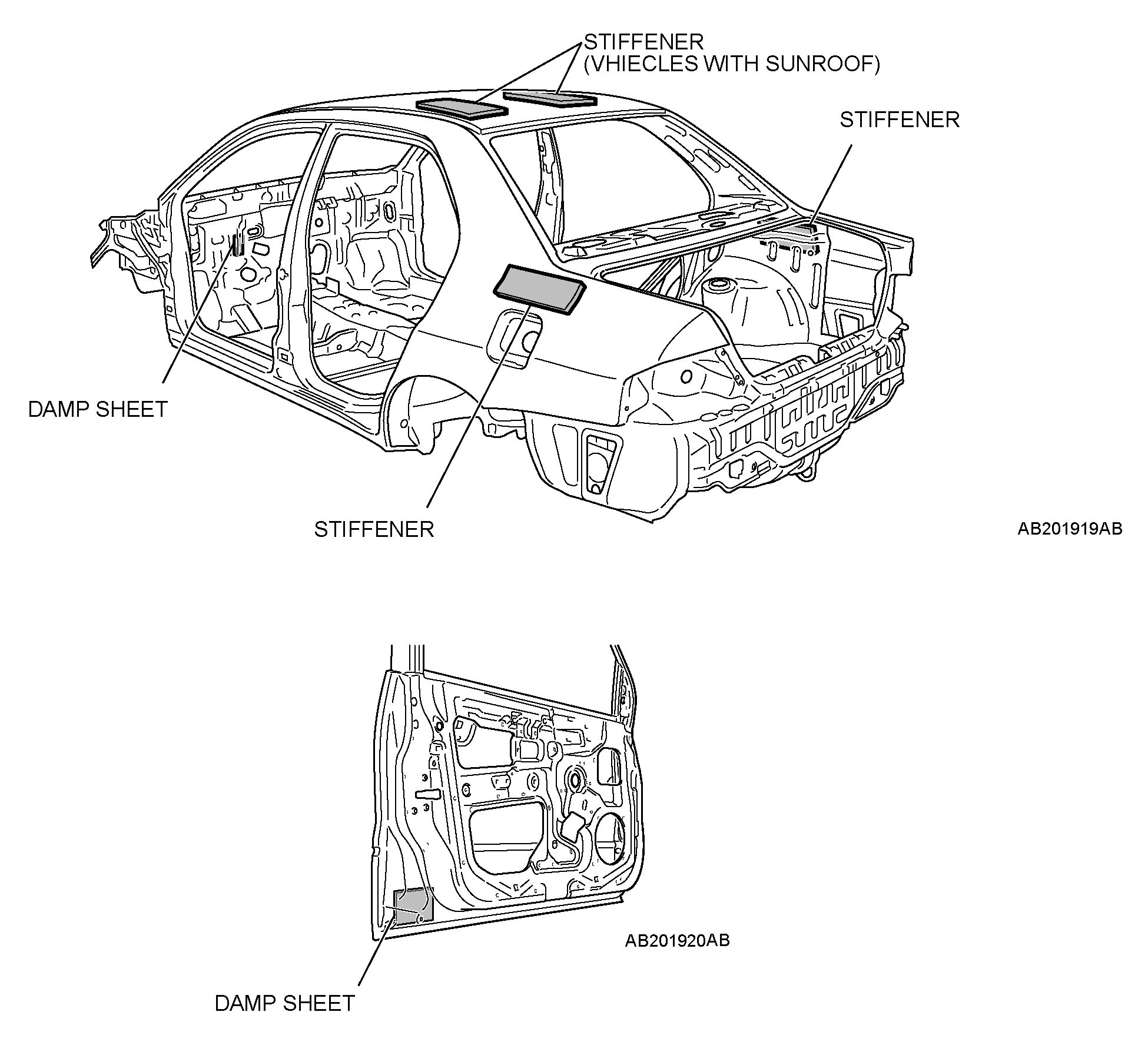

Sound insulation was improved with anti-vibration effects and heightening surface rigidity with a stiffener on the inner side of the side outer panel and roof panel as well as a damping sheet adhered to the inner side of the front door.

NOTE: The main contents of a stiffener are epoxy resin. It comes in a sheet form and contains a mixture of glass fiber and filler; and cures (stiffens) when heated. It is used to improve the rigidity of the outer plate.
