Locations Using Urethane Foam and Foam

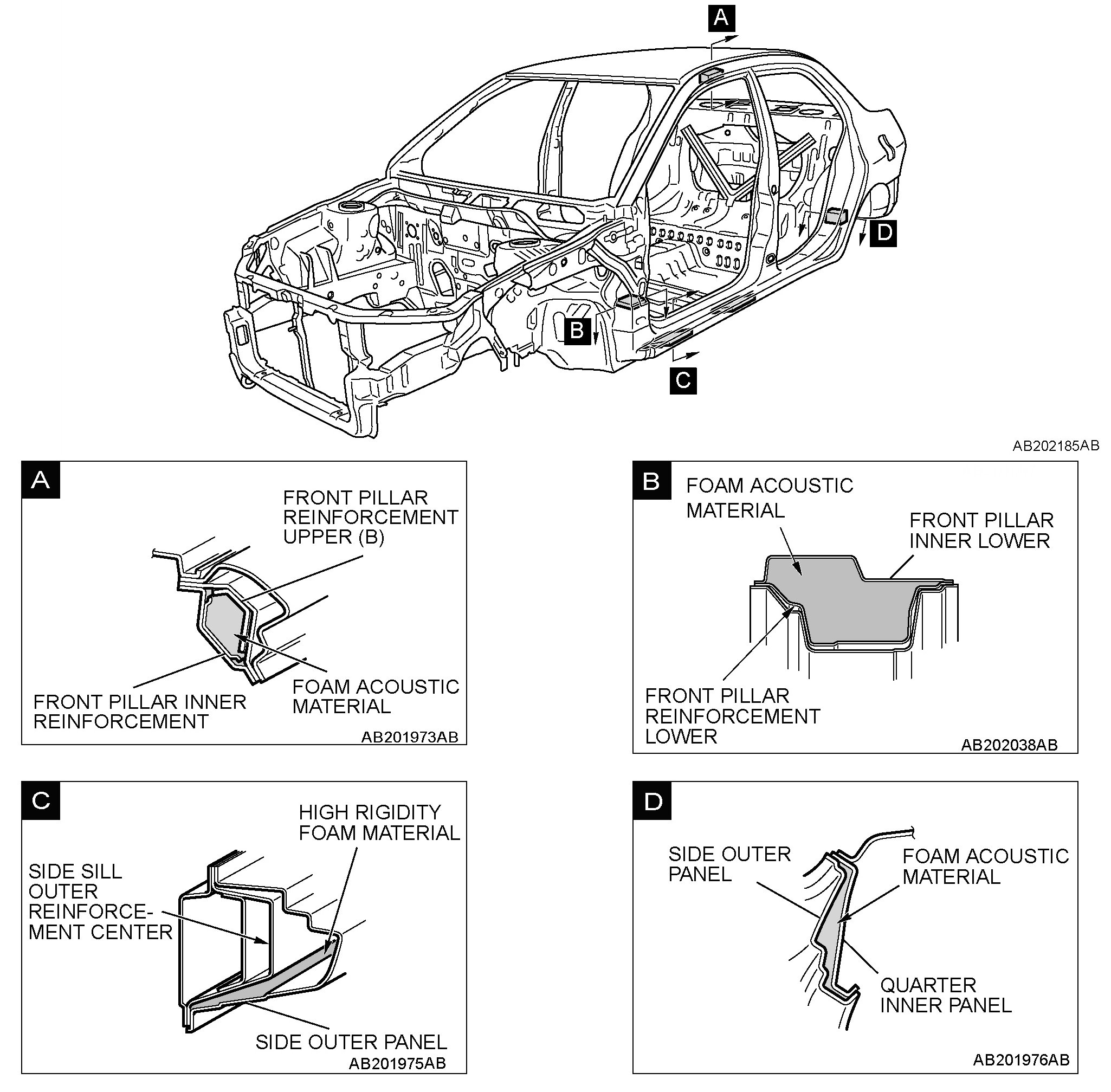

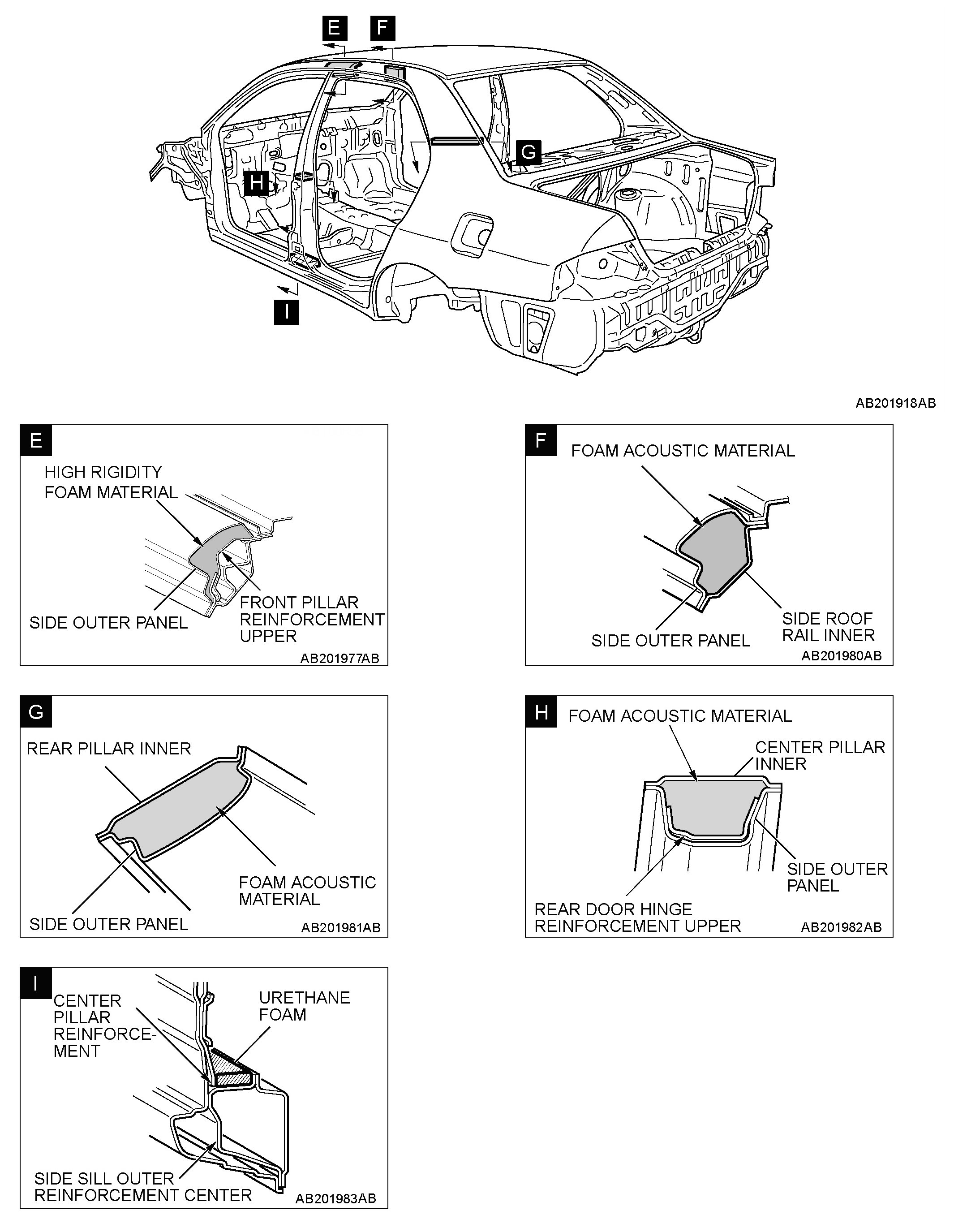

LOCATIONS USING URETHANE FOAM AND FOAM MATERIAL

- Introduction of noise was prevented by inserting urethane foam inside the center pillar.
- Introduction of noise was prevented by adding foam noise absorbing materials inside each pillar side roof rail and wheel house arch interior.
- High rigidity foam materials were added inside the side roof rail and the side sill to heighten panel rigidity.







- Never use a gas burner or burn the areas using foam materials.
- When cutting the parts using foam materials, ensure to use tools (air saw, etc.) that do not generate fire.
- If there is residual foam materials remaining on the cut section (body side) then weld after removing the foam materials from periphery of the welding area.

CAUTION: Precautions upon sheet metal processing the areas using foam materials. The foam materials may burn when heated. Always observe the following instructions.
