Sunroof Safety Function Check

SUNROOF SAFETY FUNCTION CHECK

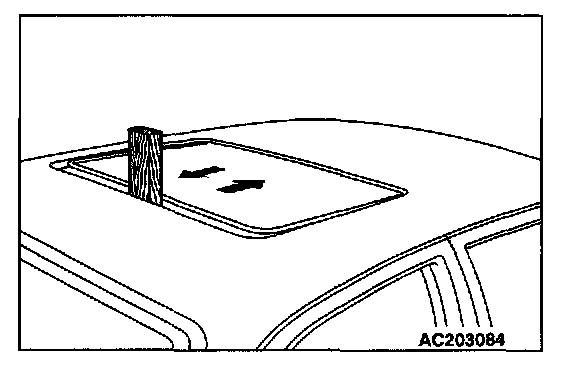

1. Close the roof lid glass by applying an approximately 10 mm (0.39 inch) thickness wood chip placed in a right angle with the roof lid glass.
2. Check to see if the roof lid glass opens after the motor turns when the roof lid glass catches the wooden chip (Refer to Diagnosis).
