Roof Lid Glass Operating Current Check

ROOF LID GLASS OPERATION CURRENT CHECK

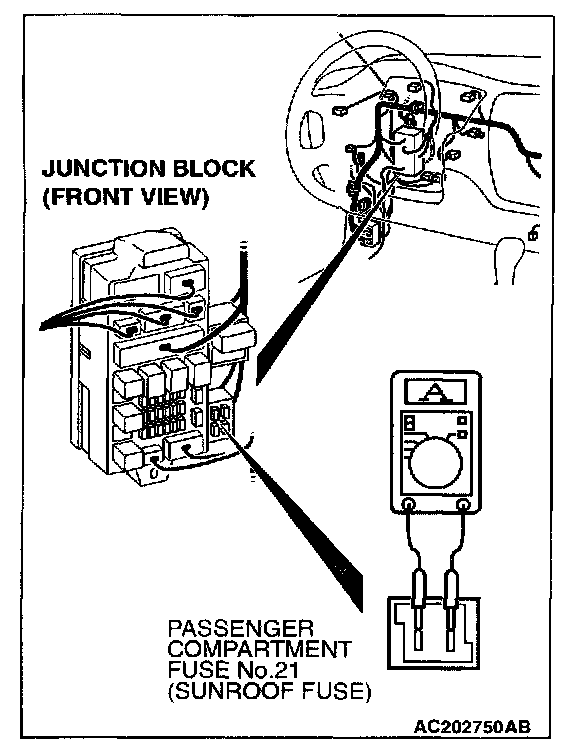

1. Remove the fuse of the sunroof, then connect the circuit tester as shown in the Figure
2. Turn ON the sunroof switch, then measure the operating current of the intermediary segment when operation is starting, the sunroof is fully closed, the sunroof is fully opened and the sunroof is tilted fully up.

Standard value: 7 A or less [at 20 °C (68 °F)]

3. Check the following areas if the operating current of exceeds the standard value:
- Sunroof assembly installation, deformation and trapping of any foreign materials.
- Drive cable fastening
- Tilting of roof lid glass
