Operation Check

Operation Check

Check that the following items. If faulty, replace the sunroof-ECU (sunroof motor assembly).

CAUTION: Check that the following items are normal before carrying out this operation check.

1. Installation condition of the sunroof assembly
2. Installation condition, deformation, and foreign material on the sunroof drive cable
3. Sunroof lid glass installation condition
4. Sunroof switch and sunroof motor assembly

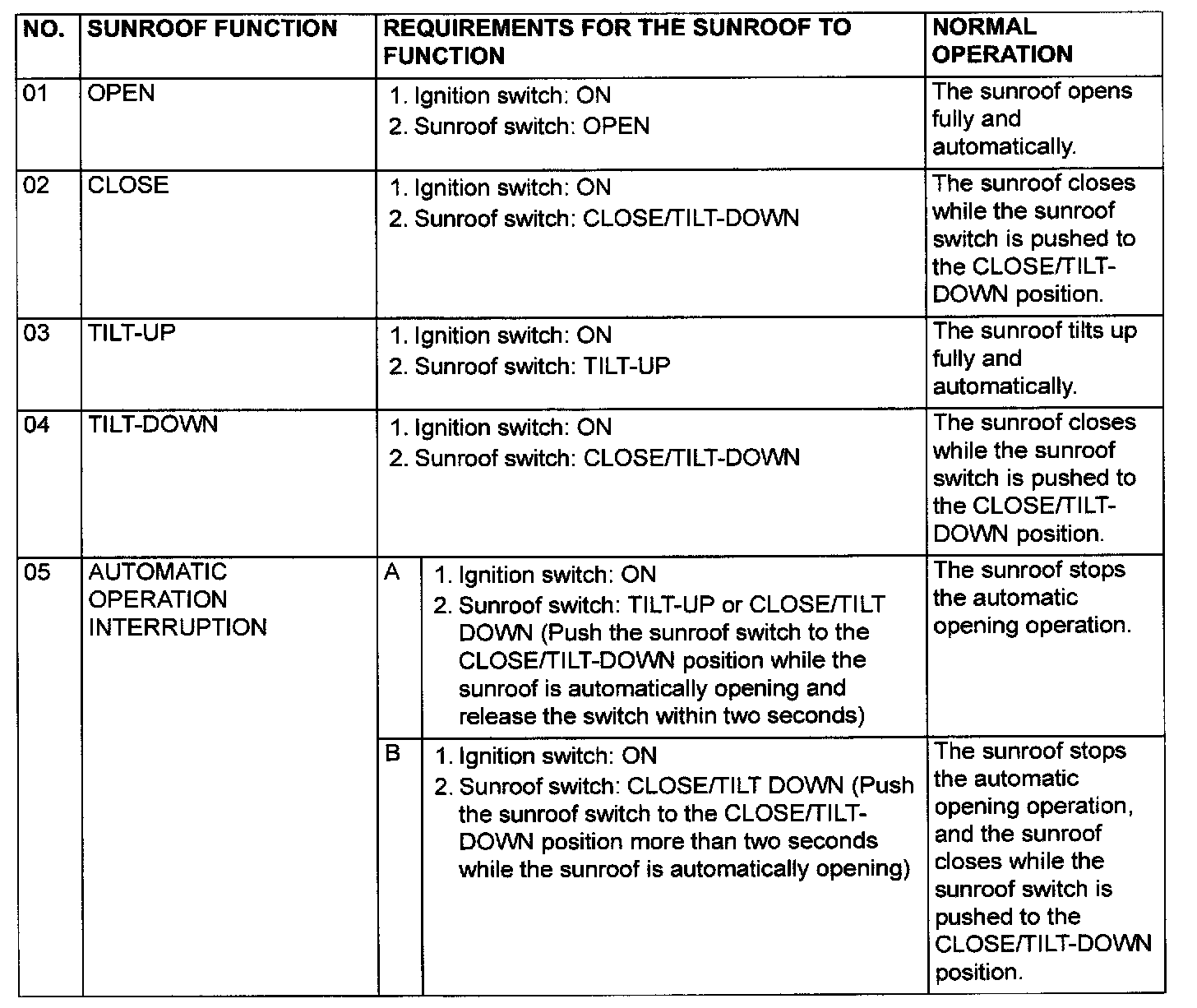

Basic Operation Part 1:
