Sunroof / Moonroof Drain: Locations

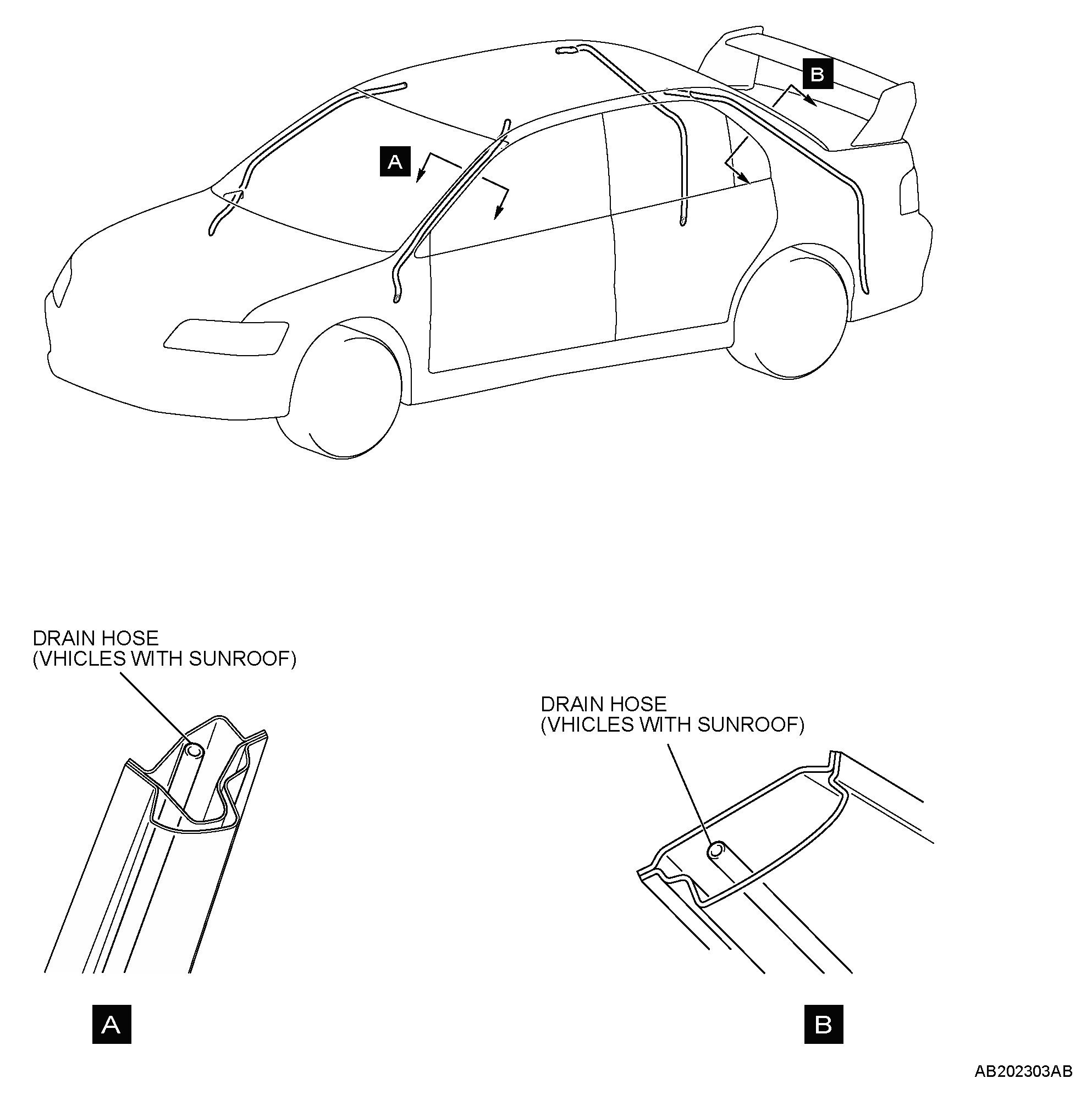

PIPING DIAGRAM




Drain hose is equipped routed in some parts of closed-section structures of the body construction.
These drain hose must be removed before body panels in these areas can be replaced.
