Removal and Replacement
This article updated per Mitsubishi TSB #06-42A-009SUNROOF ASSEMBLY

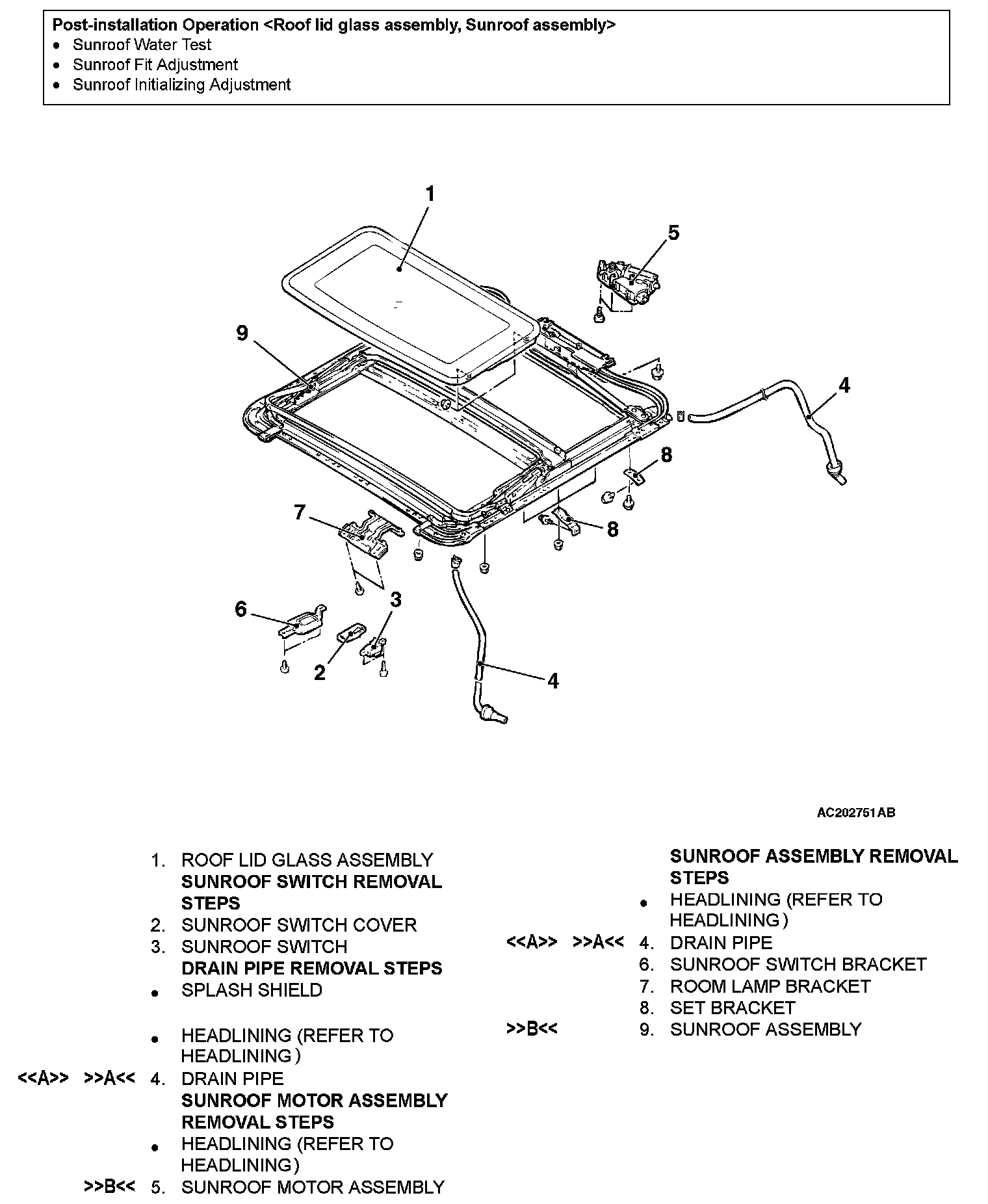

Removal And Installation:
REMOVAL AND INSTALLATION
Required Special Tool:
- MB991223: Harness set
REMOVAL SERVICE POINTS
[[A]] DRAIN PIPE REMOVAL

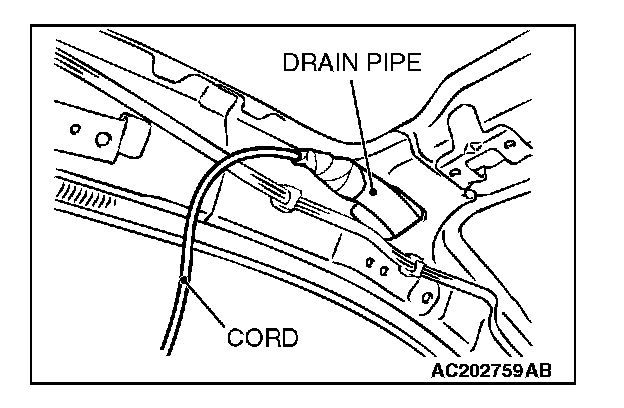

Tie a cord to the end of the drain pipe, and wind tape around it so that there is no unevenness. Then pull the drain pipe out to the wheel house side.
[[B]] SUNROOF ASSEMBLY REMOVAL

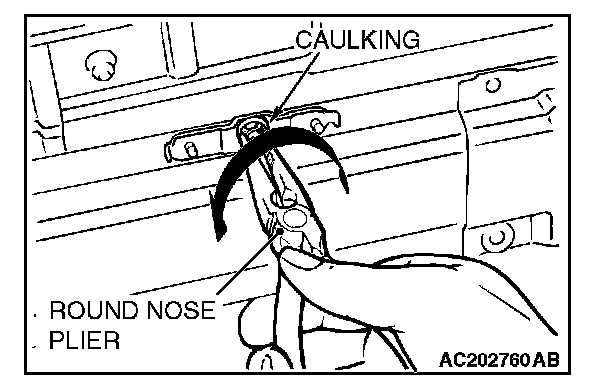

Using round nose pliers or the like, turn the caulking the way shown in the illustration and then remove the sunroof assembly.
INSTALLATION SERVICE POINTS
]]A[[ DRAIN PIPE INSTALLATION
1. Tie the cord that was used during removal to the end of the drain pipe, and wind tape around it so that there is no unevenness.

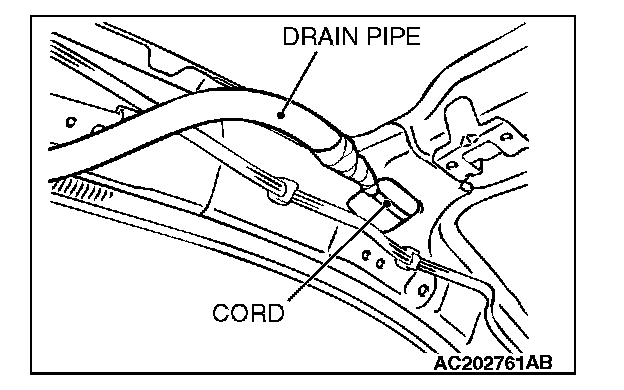

2. Pull the cord to pass through the drain pipe.

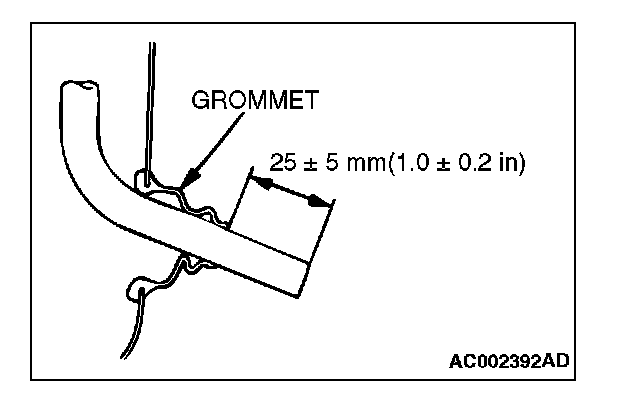

3. Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.
]]B[[ SUNROOF MOTOR ASSEMBLY INSTALLATION
1. Using the sunroof open switch, move the roof lid glass to the fully-open position.
2. Using the sunroof close switch, move the roof lid glass ib steps of approx. 30mm (1.8 in) to the fully-forward position. Then, using the sunroof close switch, move the glass to the tilt-up position and continue to hold the switch for 3 seconds or more.
3. Verify proper operation.
NOTE: During initialization (learning-mode), use only the CLOSE/OPEN switch to move the roof lid glass from the fully-closed position to the fully-open position. During initialization, the TILT-UP switch will not work when pressed.
