Paint - Paint Codes
No: TSB-05-51-004REVDATE: August, 2005
MODEL: All 2006 Models
SUBJECT:
2006 EXTERIOR COLOR CODES AND MODEL APPLICATIONS
This bulletin revised TSB-05-51-004, issued June 2005, which should be discarded. New and revised information is indicated by a mark.
PURPOSE
This bulletin contains exterior color information for all 2006 Mitsubishi Motors passenger vehicles.
The tables are as follows:
1. 2006 Exterior factory Color Codes and Model Applications
2. Paint Manufacturers' Stock Numbers for 2006 Exterior Refinishing
3. 2006 Two-Tone Color Combinations
Use these tables when ordering refinishing materials from your local automotive paint dealer.
AFFECTED VEHICLES
All 2006 Models
2006 EXTERIOR COLORS
There are thirty-nine (39) colors included in the 2006 model line-up. Twenty-eight (28) colors are carried over from previous years and eleven (11) are new. Also, there are three (3) two-tone exterior color combinations for the Montero. Regardless of the main body color, some Outlander models have front and rear bumpers and side sill plates painted in Medium Argent Silver (see Tables 1 and 2).
Table 1 contains Mitsubishi factory Color Codes and Model Applications. The new colors for 2006 are identified by bold characters.
Table 2 contains the manufacturers' stock numbers from several automotive refinish companies, which correspond with the Color Codes and Model Applications shown in Table 1. The new colors for 2006 are identified by bold characters.
Table 3 on Page 4 shows the two-tone color combinations for 2006 models.

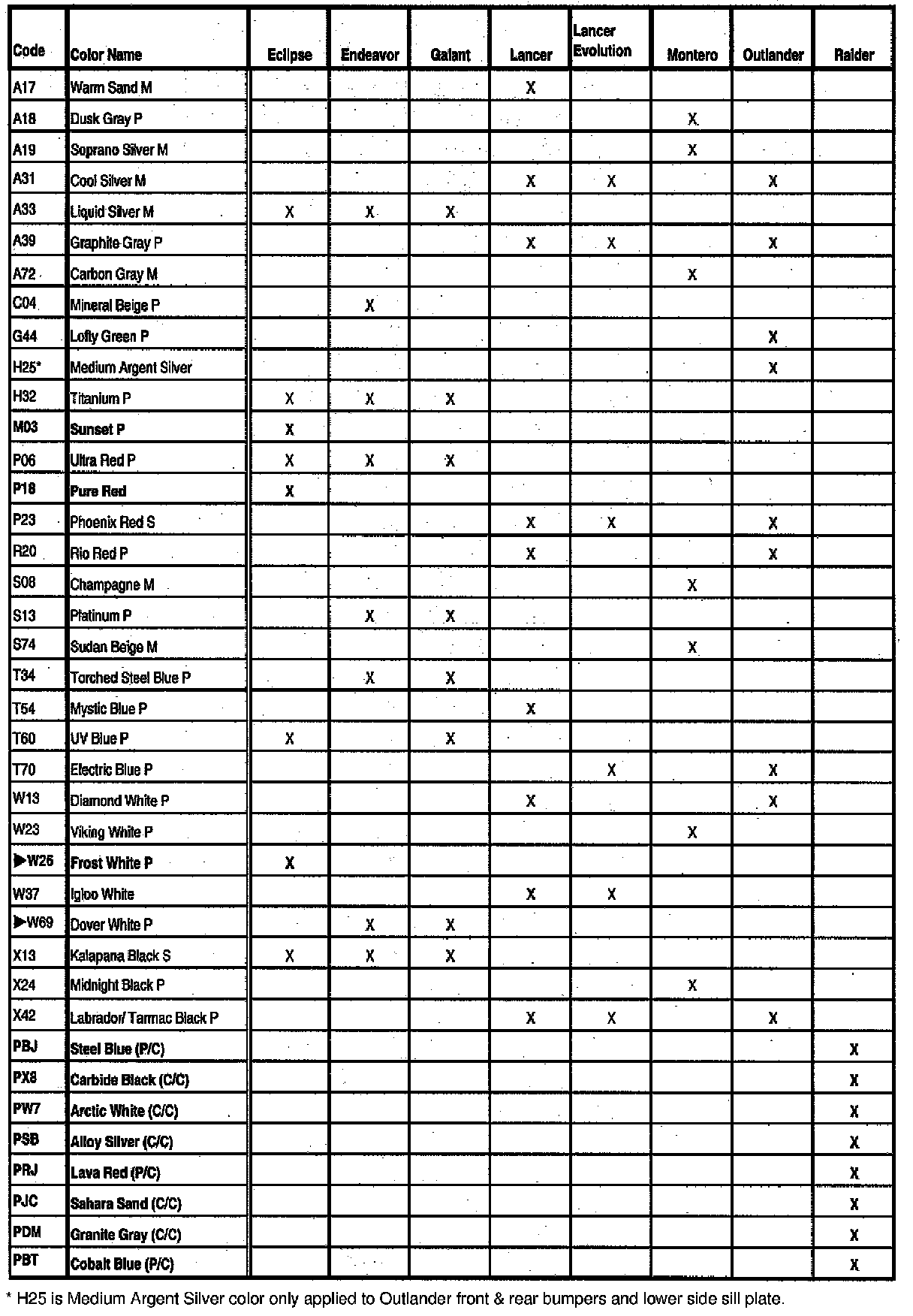

TABLE 1: 2006 EXTERIOR COLOR CODES AND MODEL APPLICATIONS

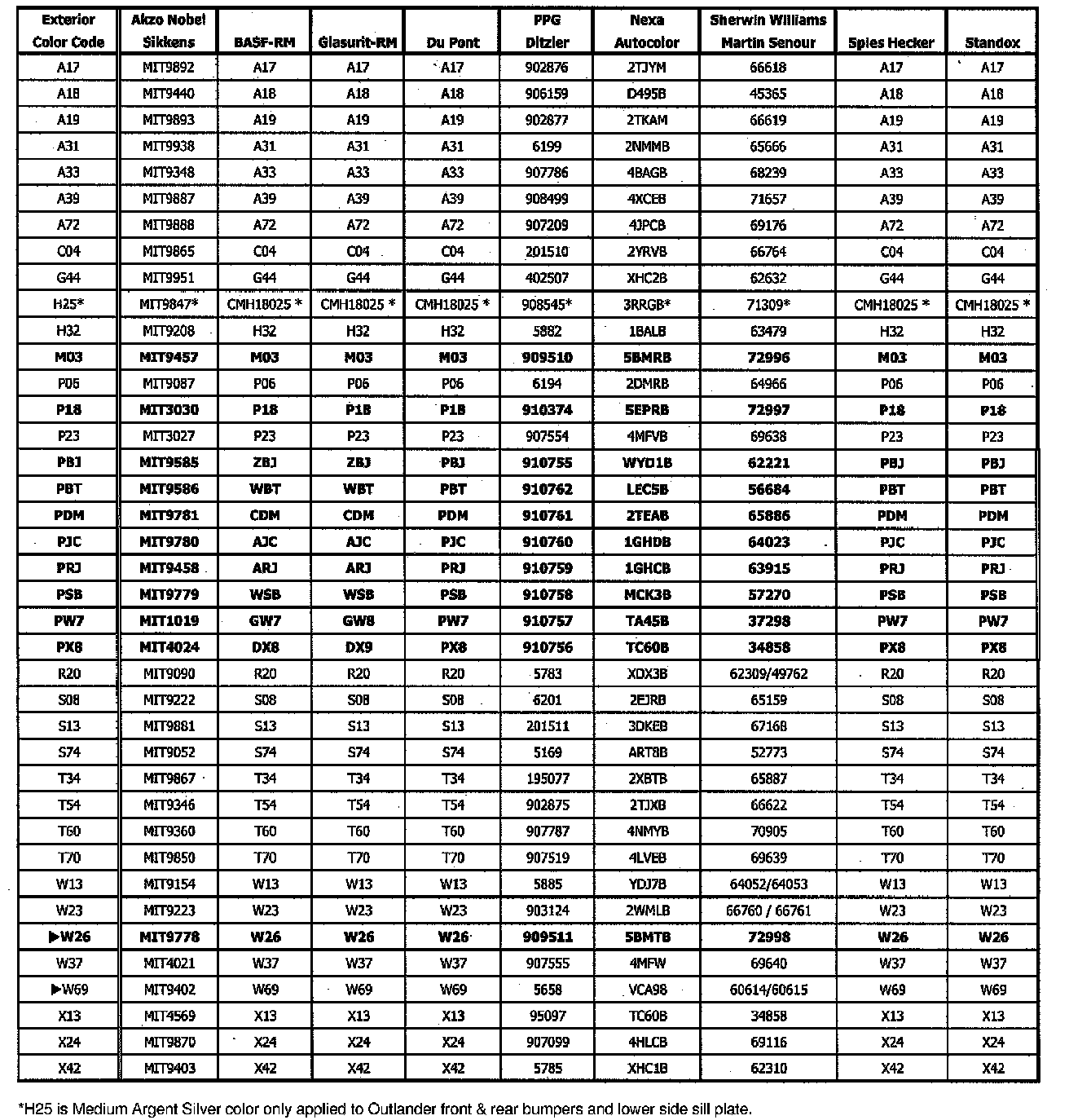

TABLE 2: PAINT MANUFACTURERS' STOCK NUMBER FOR 2006 EXTERIOR REFINISHING

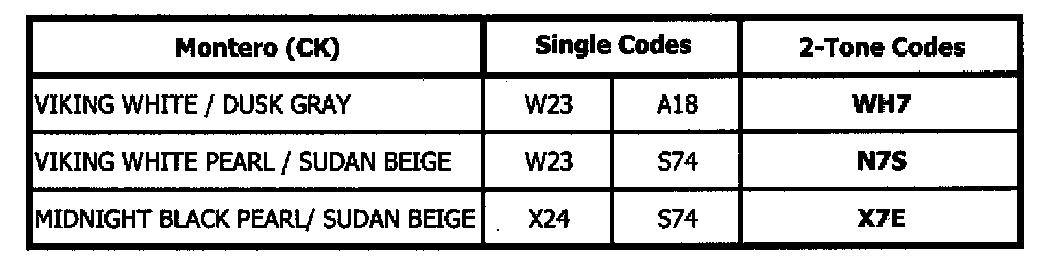

TABLE 3: 2006 MONTERO TWO-TONE COLOR COMBINATIONS
