Mirrors: Testing and Inspection

INSPECTION

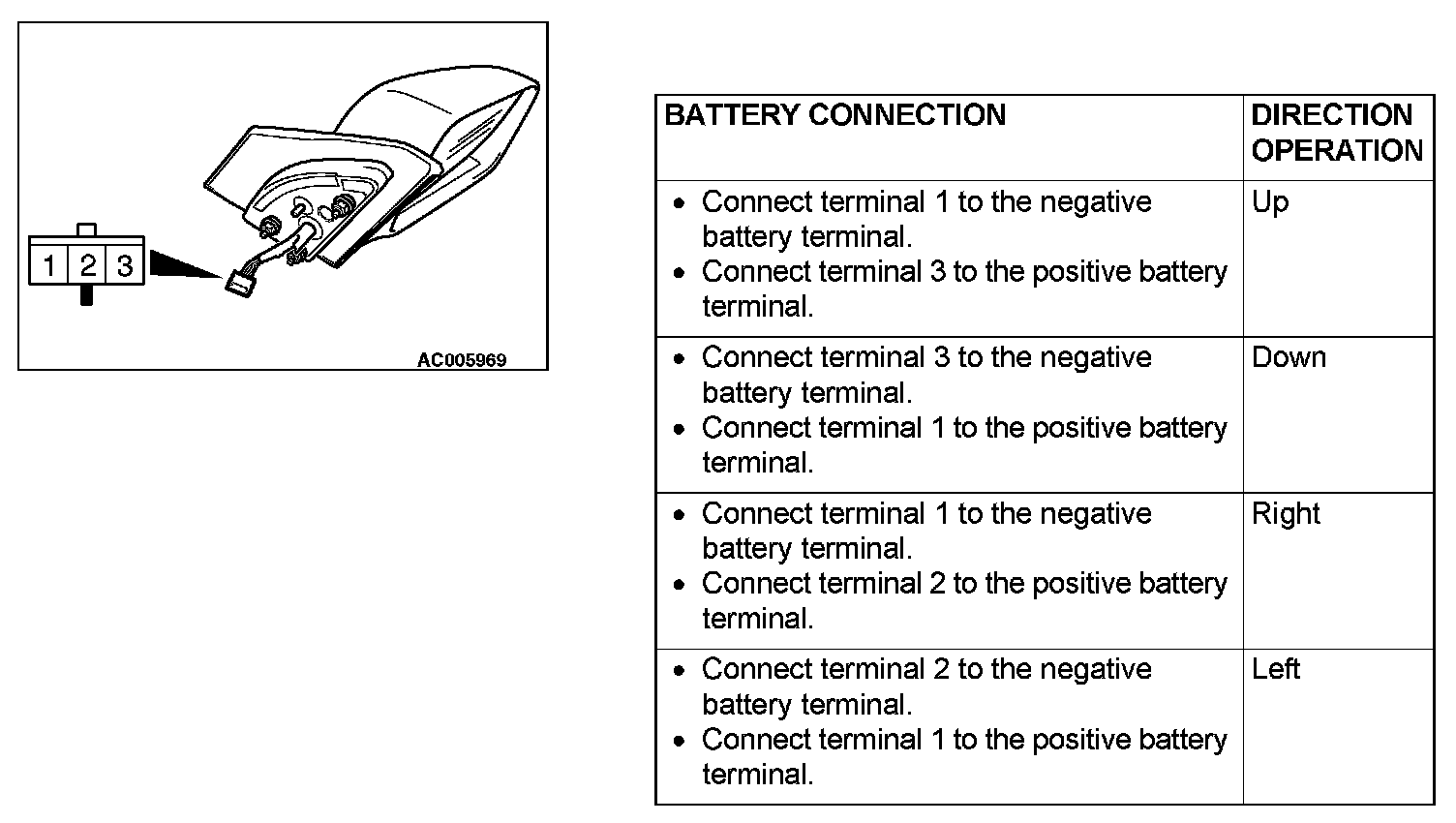

ELECTRIC REMOTE CONTROLLED MIRROR OPERATION CHECK

Check that the mirror moves as described in the table when each terminal is connected to the battery

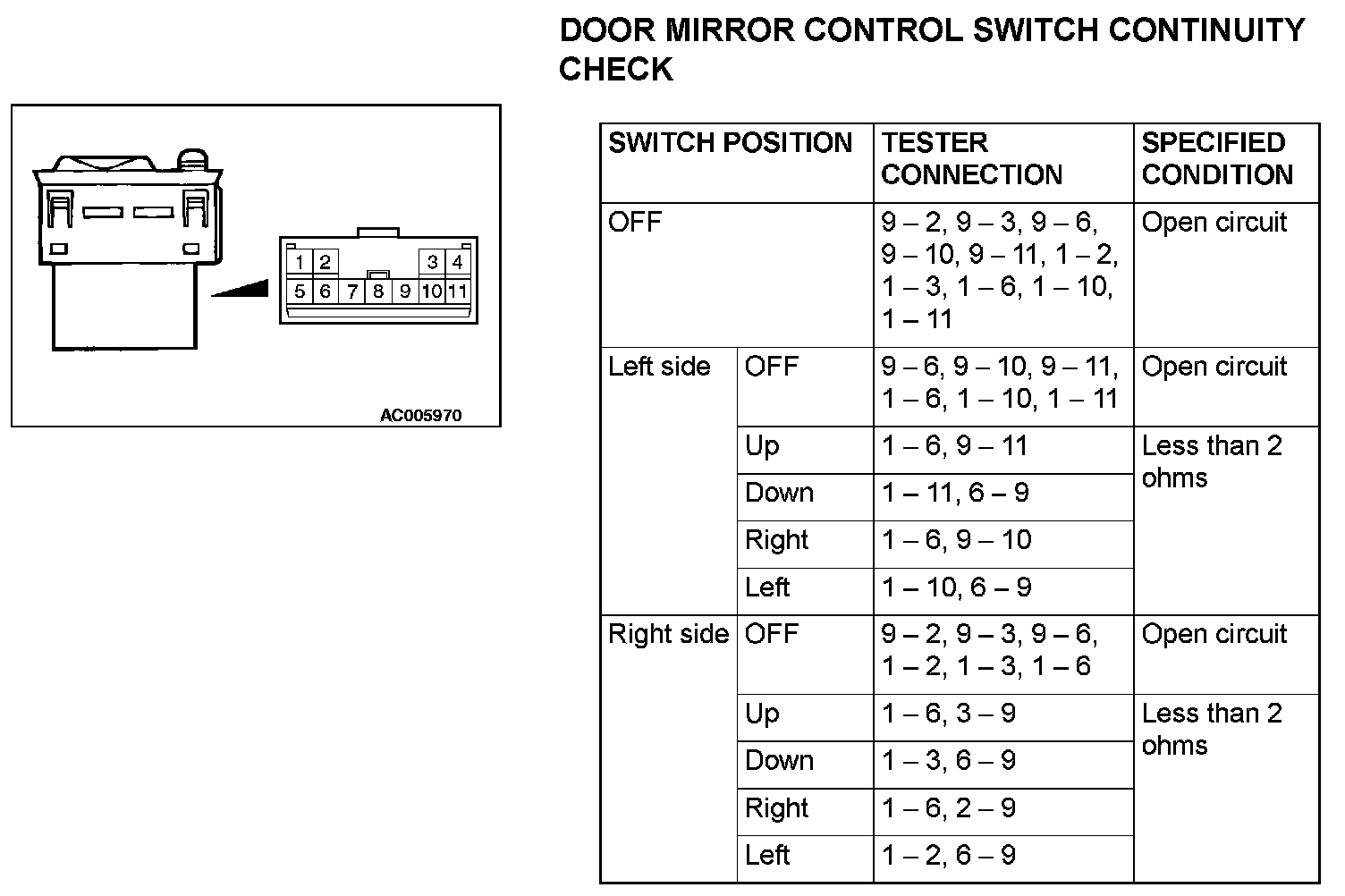

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK
