Mirrors: Service and Repair

DOOR MIRROR

REMOVAL AND INSTALLATION

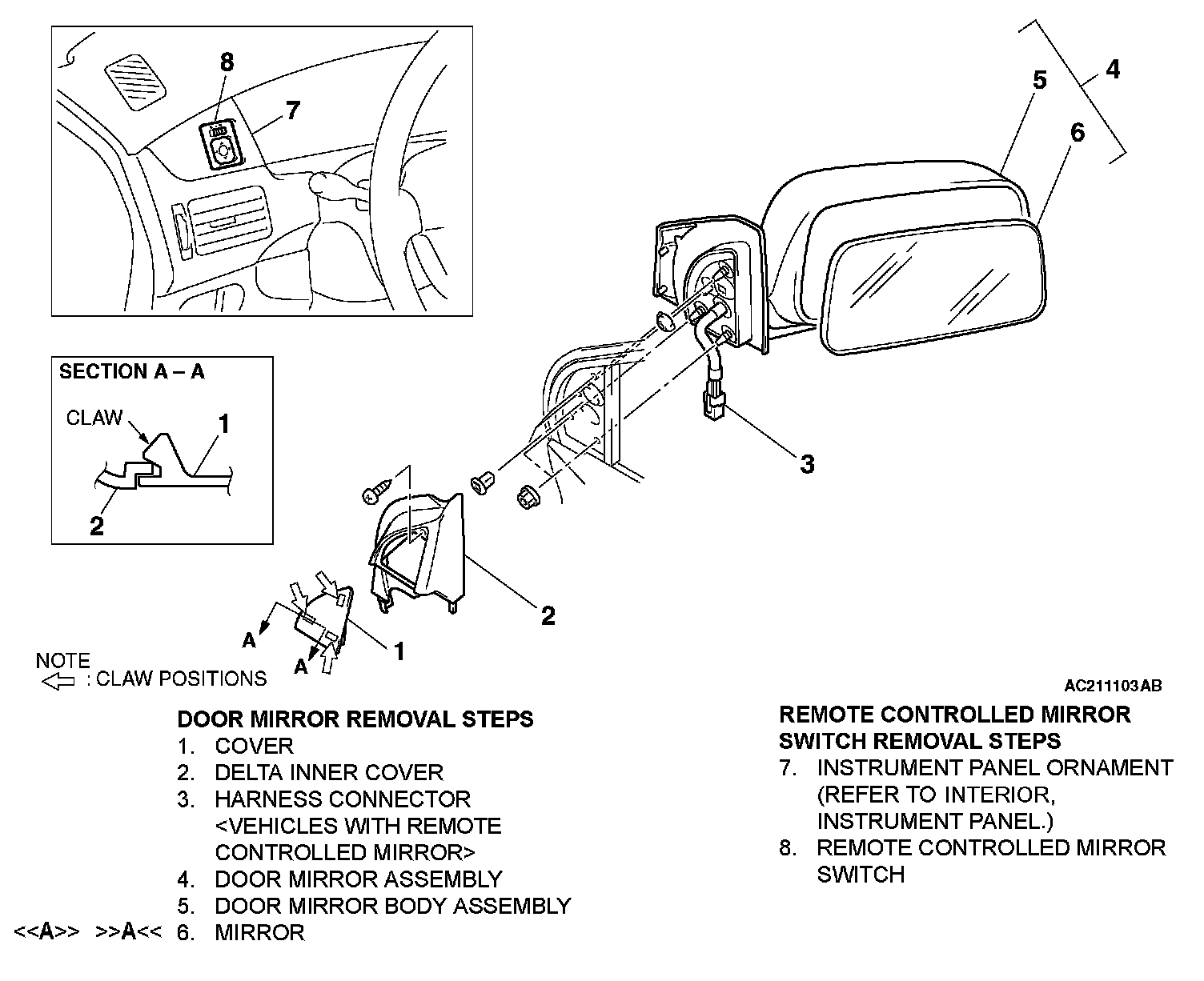

Removal Steps 1-8:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

[[A]] MIRROR REMOVAL

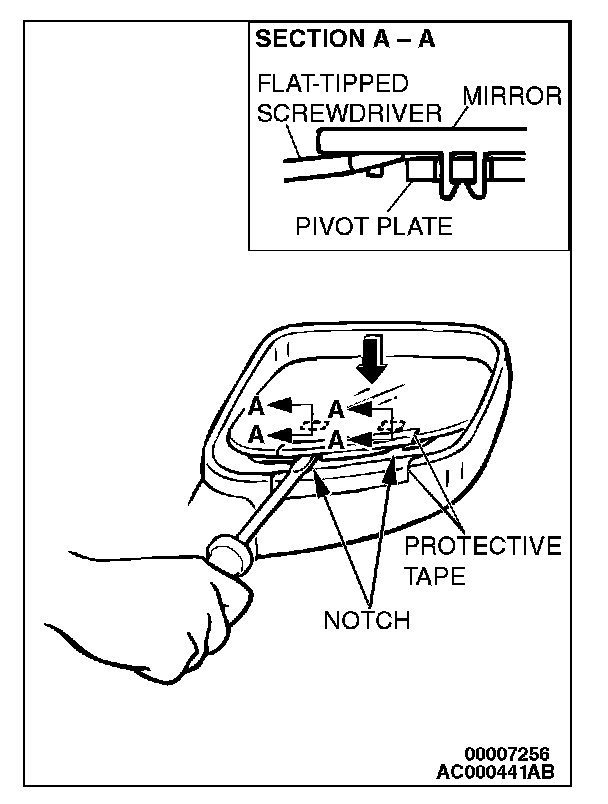

Push the top of the mirror with your hand to tilt it and attach the protective tape as shown in the illustration. Then insert a flat-tipped screwdriver in between the notch at the rear of the mirror and the pivot plate and disengage the bottom of the mirror.

INSTALLATION SERVICE POINT

]]A[[ MIRROR INSTALLATION

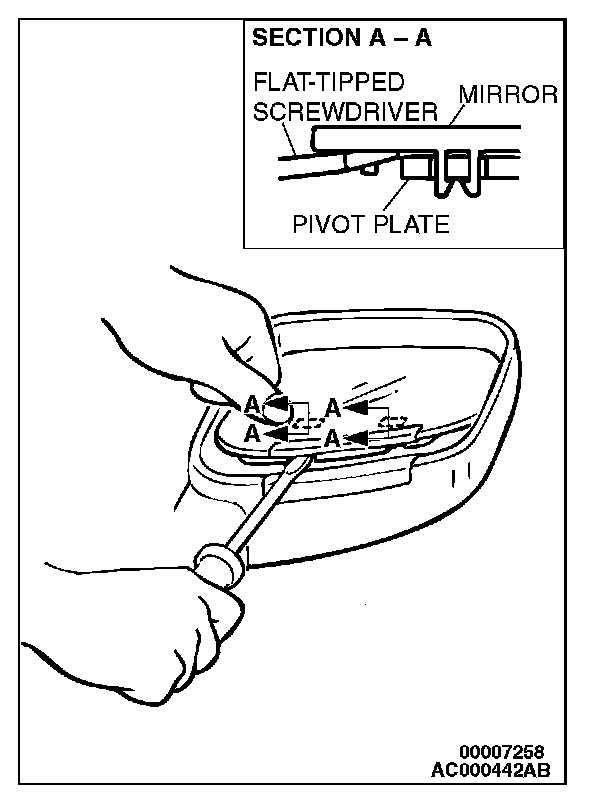

While supporting the clip position on the underside of the pivot plate with a flat-tipped screwdriver press the clip at the front of the mirror to engage the bottom of the mirror.
