Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Testing and Inspection

Power Door Lock Actuator: Testing and Inspection

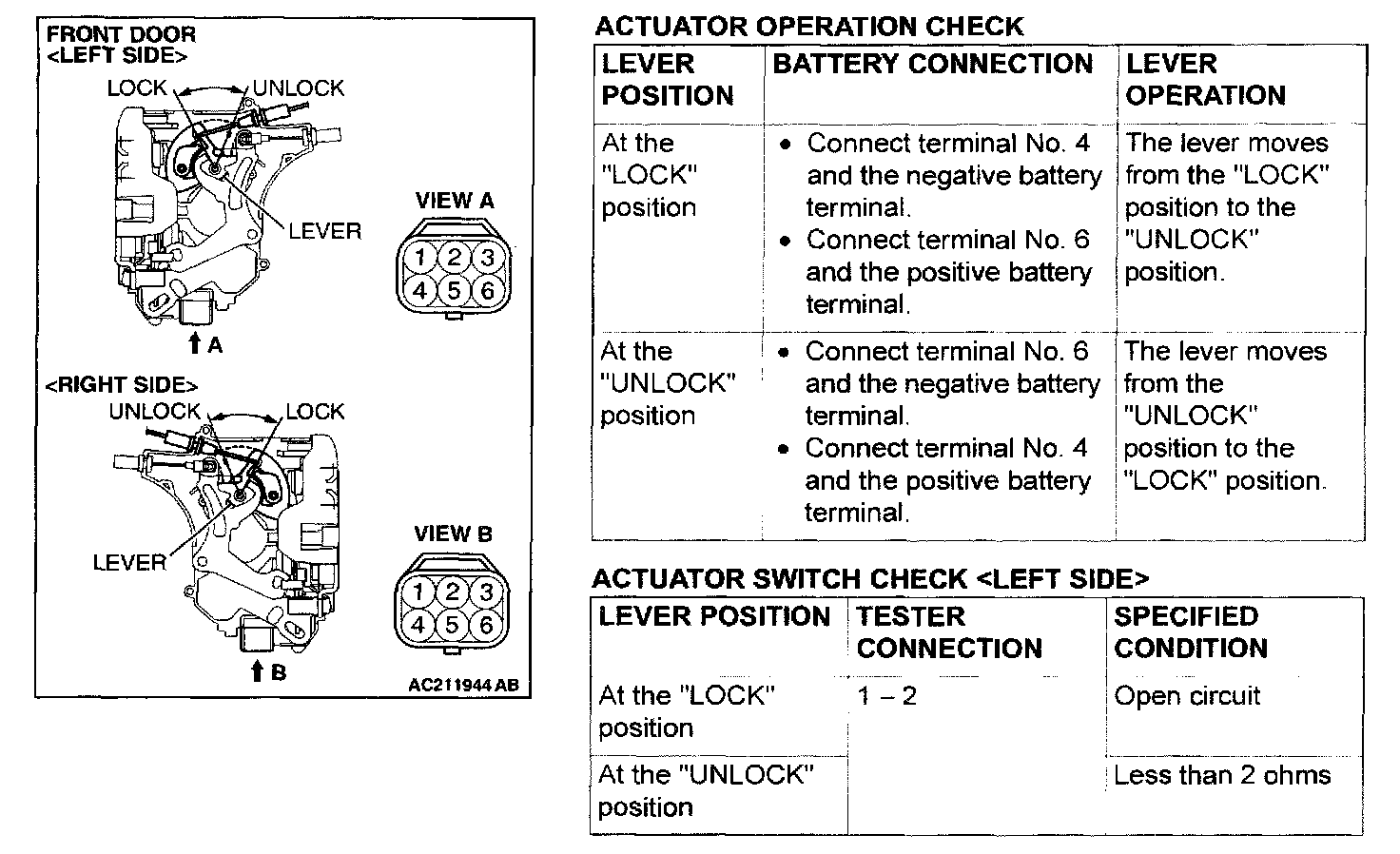

Front Door Lock Actuator Check:

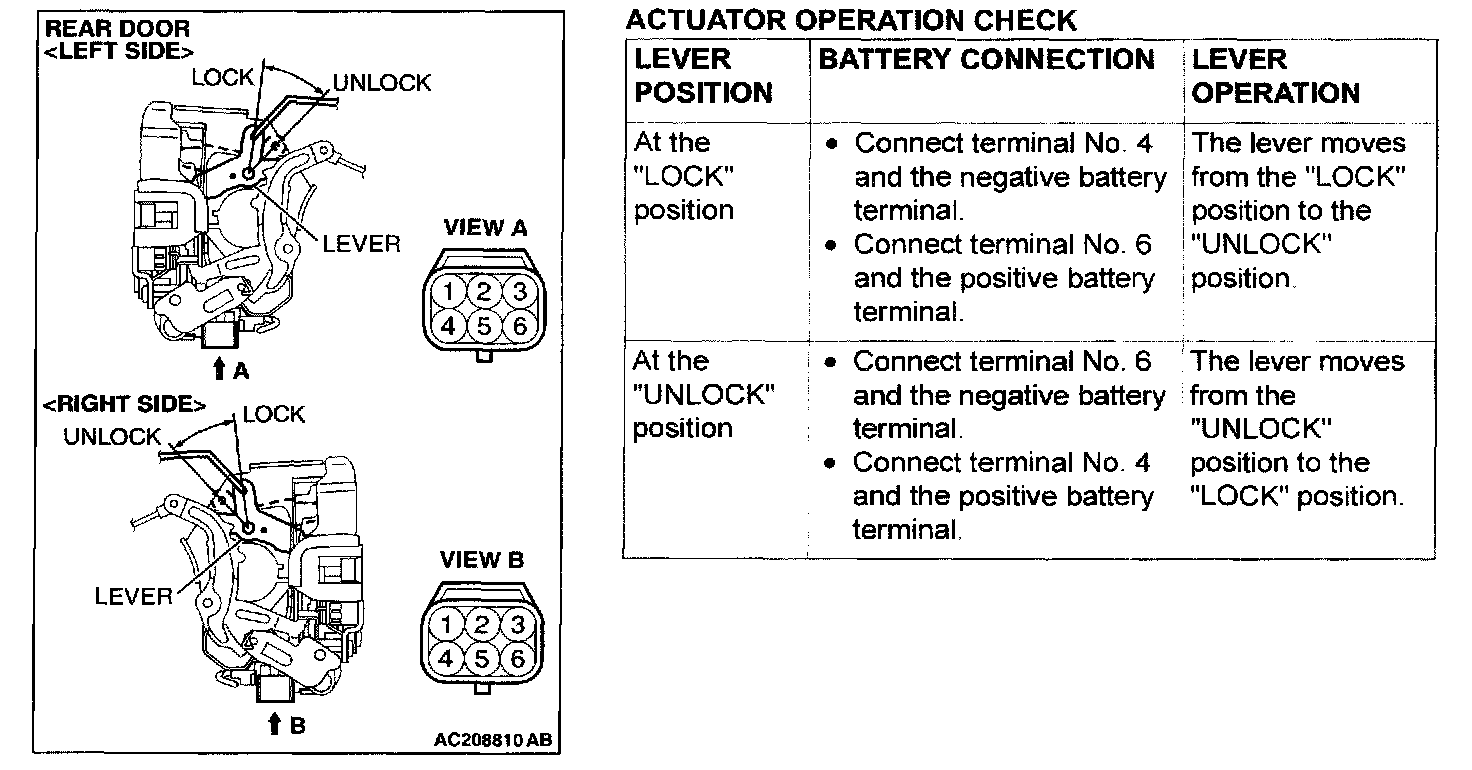

Rear Door Lock Actuator Check:
