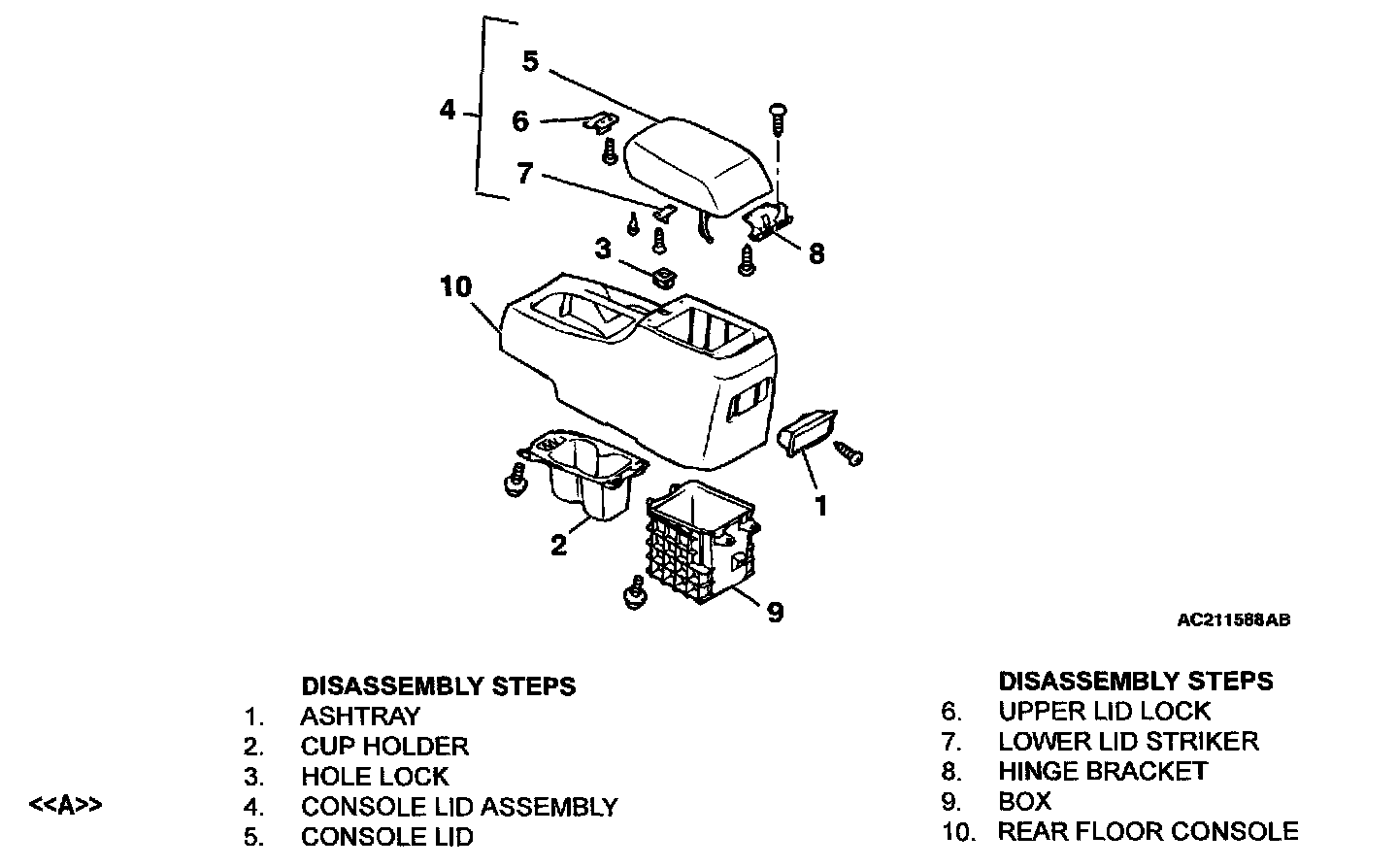

Disassembly and Assembly

CONSOLE:

Required Special Tool:
- MB990784: Ornament remover

DISASSEMBLY SERVICE POINT

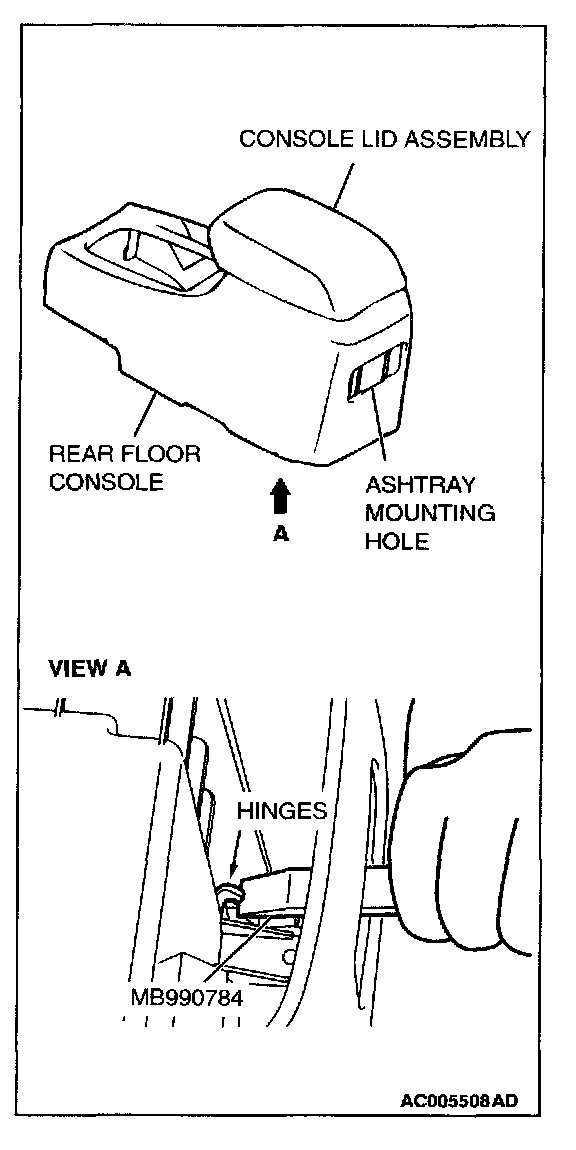

<> CONSOLE LID ASSEMBLY REMOVAL
Insert the special tool into the hinges of the console lid assembly and the rear floor console through the ashtray mounting hole to pry for removal.
