Fender: Service and Repair

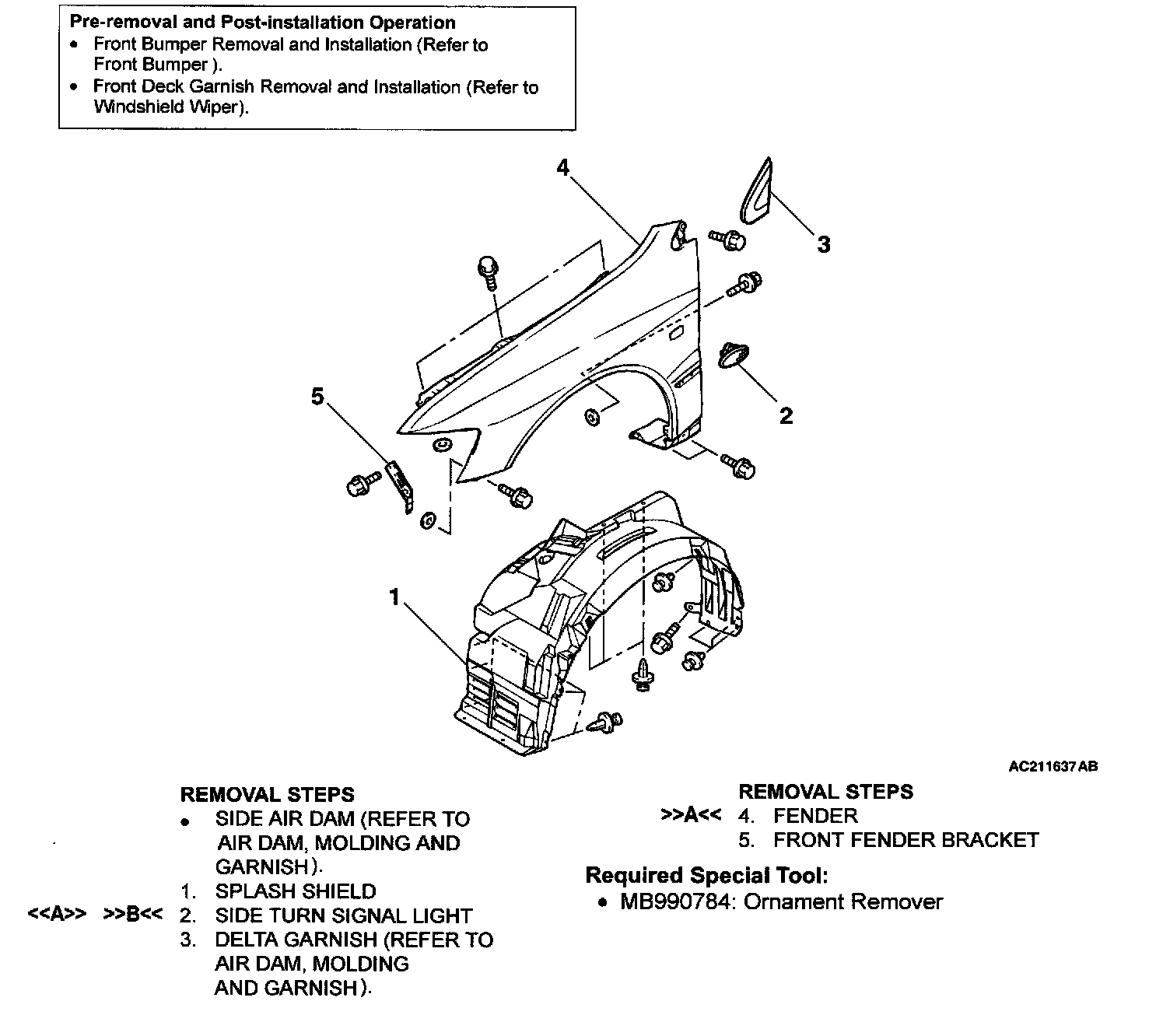

FENDER:

REMOVAL SERVICE POINT

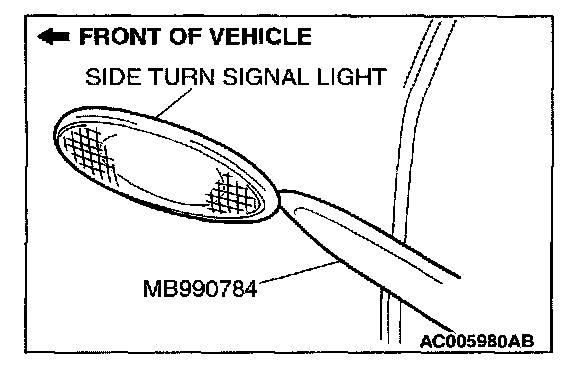

<> SIDE TURN SIGNAL LIGHT REMOVAL
Use an appropriate tool such as MB990784 to pry out the tab from the fender, and remove the side turn signal light.


INSTALLATION SERVICE POINT

>>A<< FENDER INSTALLATION

CAUTION: Use the special fasteners to secure the fender. They have special coating for anti-corrosion.

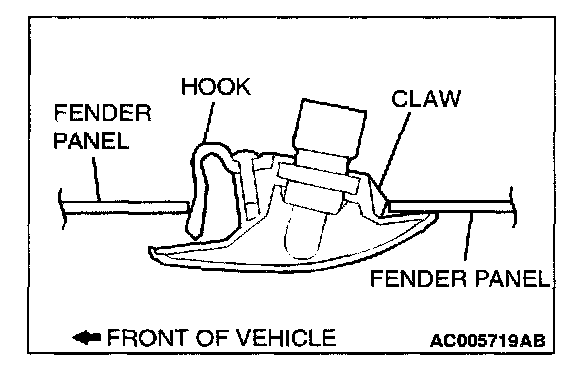

>>B<< SIDE TURN SIGNAL LIGHT INSTALLATION
Engage the claw with the fender panel, and install the side turn signal light.
