Installation and Removal of Adhesive Components
INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

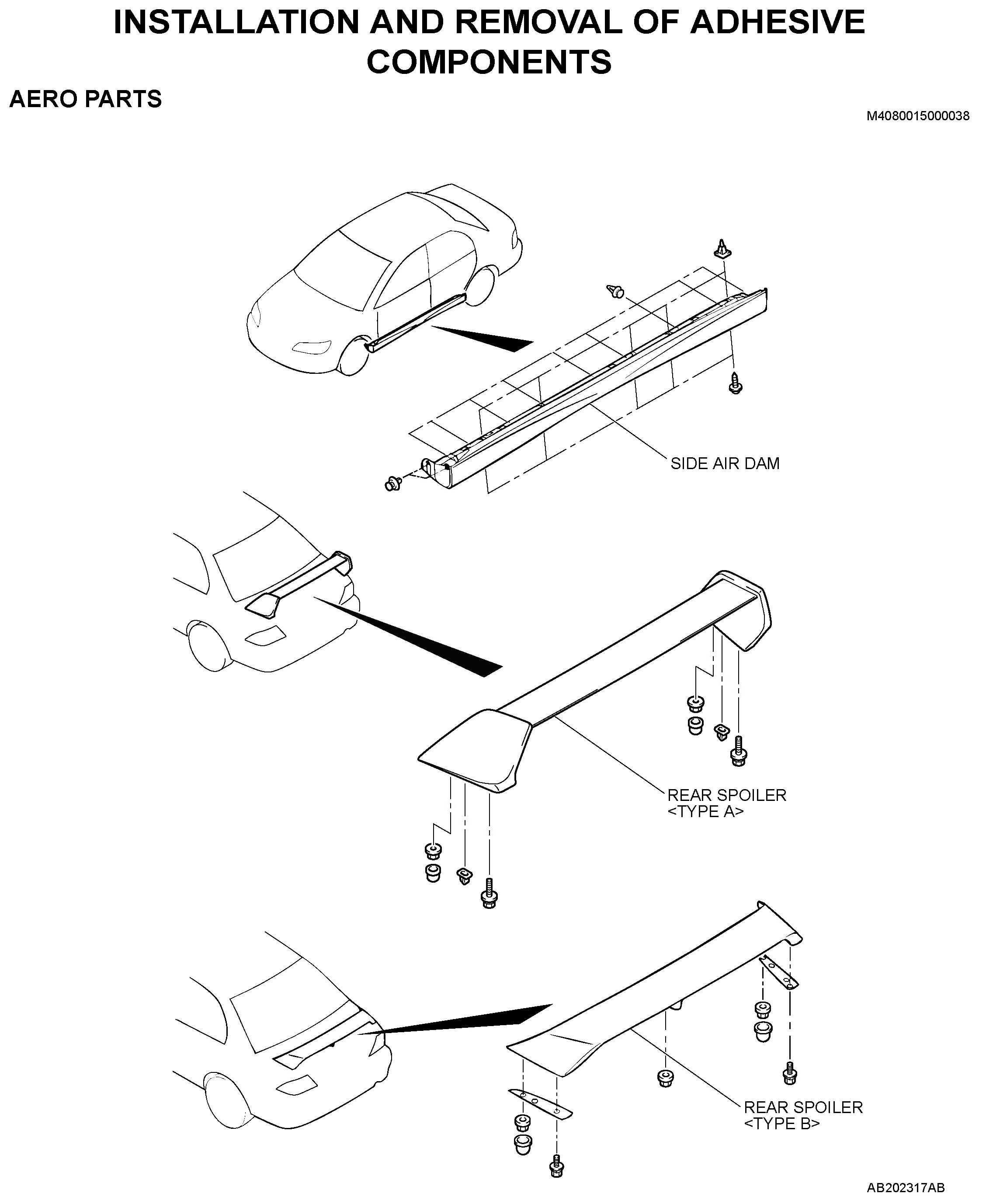

AERO PARTS

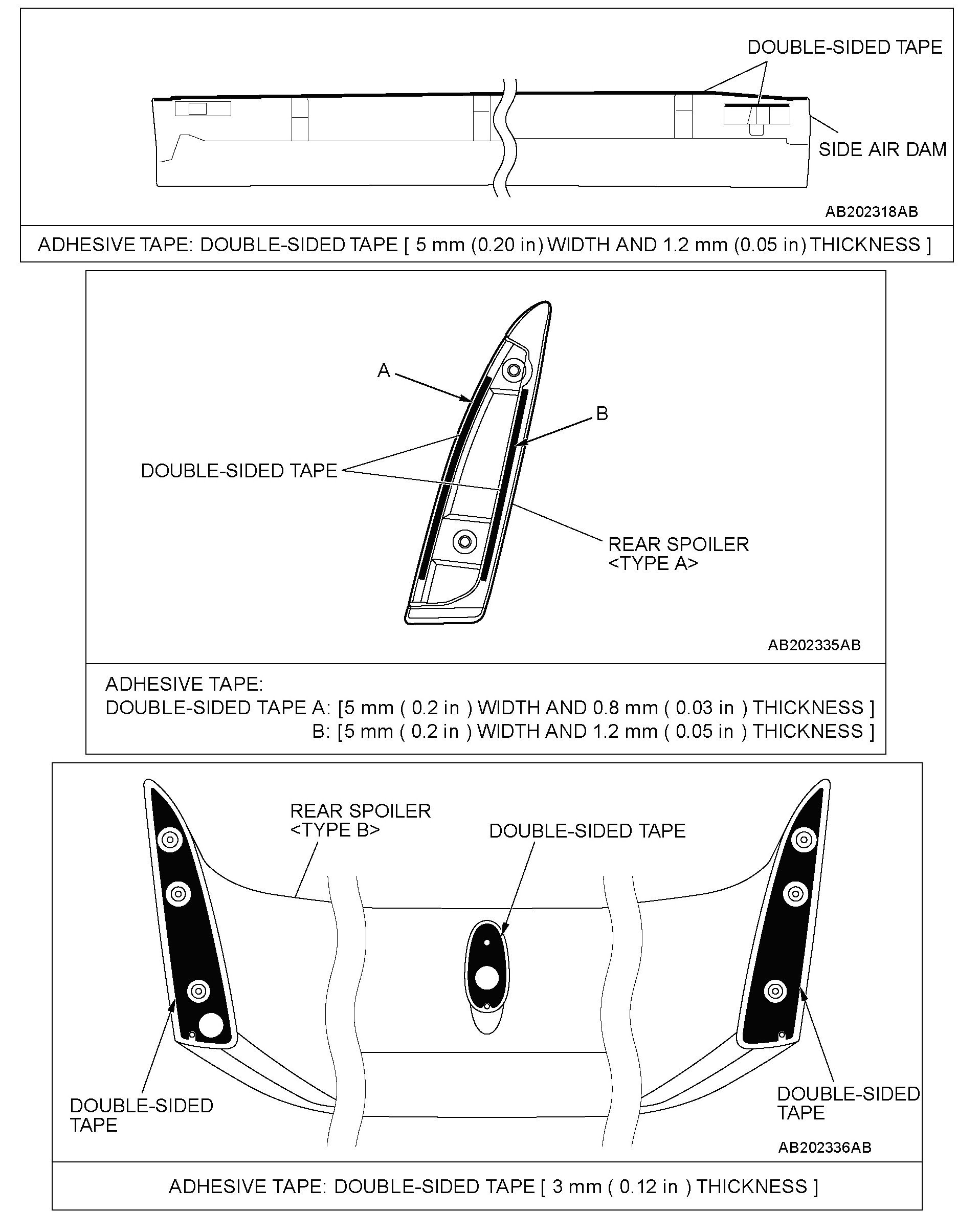

ADHESIVE TAPE POSITION
REMOVAL

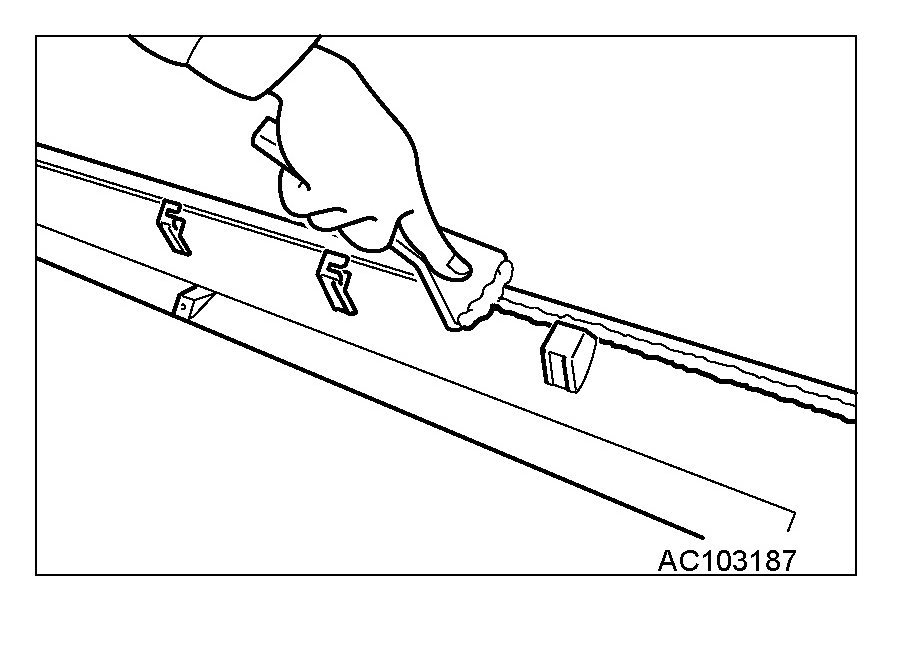

Gently lift and remove the side air dam. If there is any double- side tape remaining on the side air dam remove according to the following instructions.
Remove double-side tape remaining on the body surface

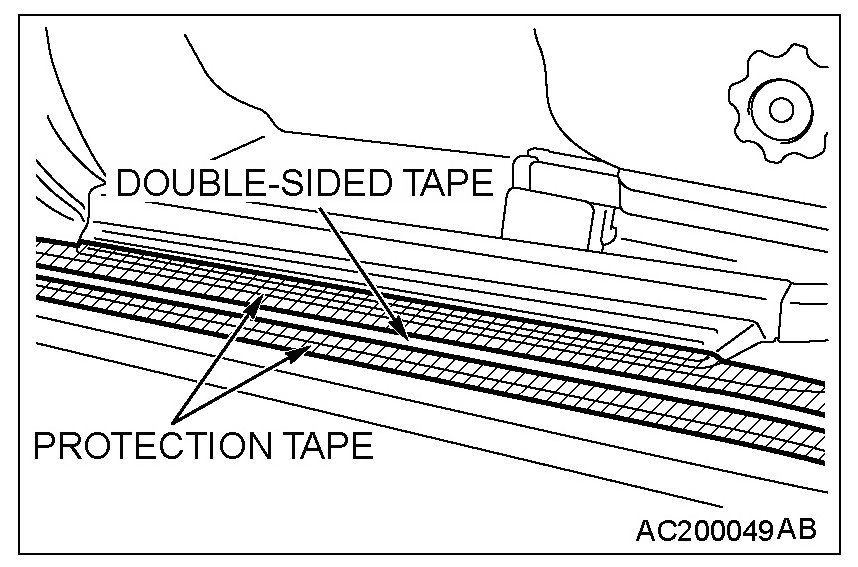

1. Attach protection tape all the way along the edges of the double-sided tape which is still adhering to the body.
2. Scrape off the double-sided tape with a resin spatura as possible.

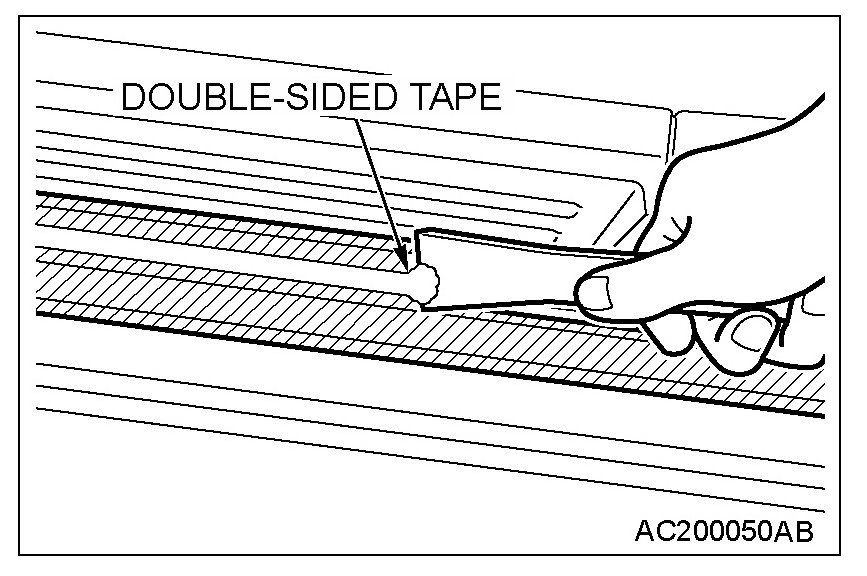

3. Peel off the protection tape.
4. Use a shop towel moistened with 3M(TM) AAD Part number 8906 or equivalent to wipe the body.
1. Scrape off the double-sided tape on the side air dam with a resin spatura as possible.
2. Use a shop towel moistened with 3M(TM) AAD Part number 8906 or equivalent to wipe the side air dam surface.
3. Remove only a small portion of the residual adhesive.
4. Adhere the double-side tape as specified on the side air dam.
INSTALLATION

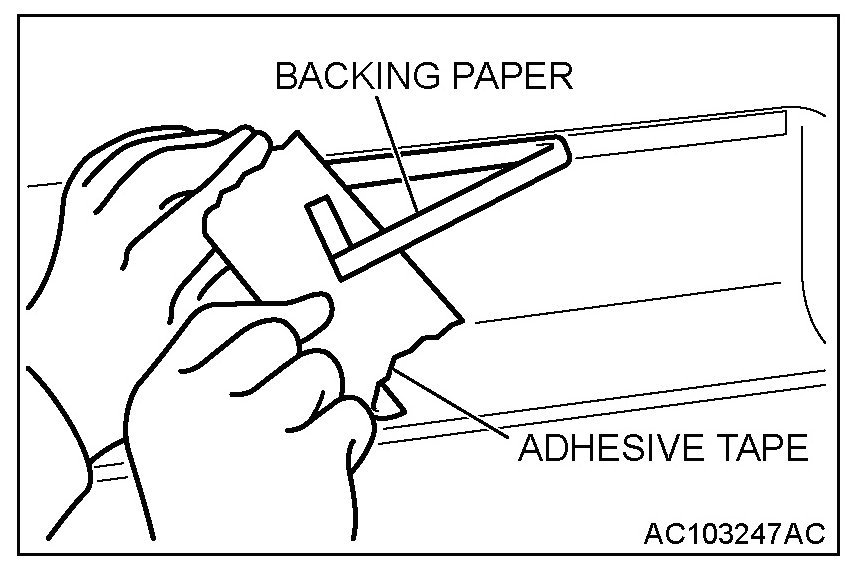

1. Tear off the double-sided tape backing paper.
NOTE: If you attach the adhesive tape to the edge of the backing paper; it will be easy to tear off
2. Install the side air dam.
NOTE: If the double-sided tape is difficult to affix in cold temperature, etc., warm the bonding surfaces of the body and side air dam to about 40 -60 degrees C (104 - 140 degrees F) before affixing the tape.
3. Firmly press in the side sill garnish.
