Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Adjustments >> Trunk Lid Clearence

Trunk Lid Clearence







Trunk Lid Clearence

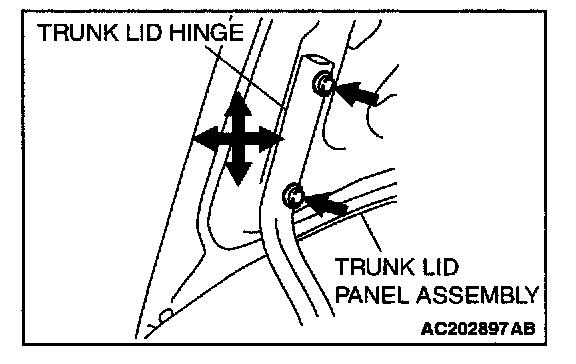

Loosen the trunk lid panel assembly mounting bolts and move the trunk lid panel assembly to make the clearance around the trunk lid uniform.
