Hood: Service and Repair
HOOD:

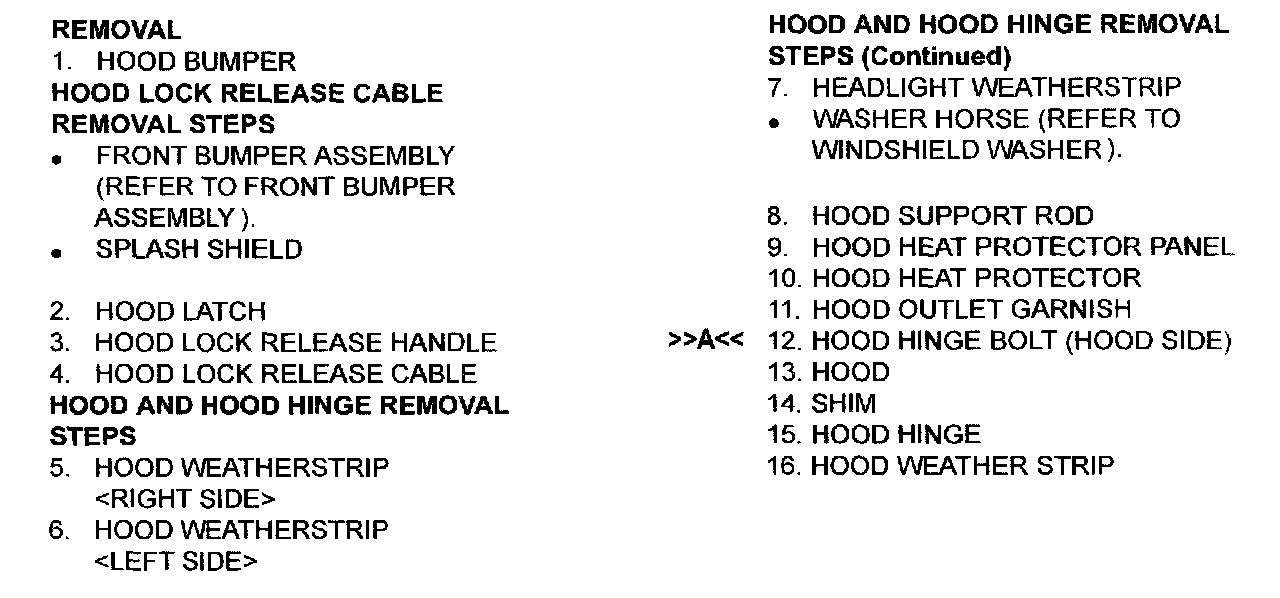

REMOVAL SERVICE POINT
]]A[[
HOOD HINGE
BOLT INSTALLATION
CAUTION:
Use the special bolts when securing the hinge to the
hood
. They have special coating for anti-corrosion.
