Fuel Door: Adjustments

FUEL FILLER LID

ADJUSTMENT OF FUEL FILLER LID FIT

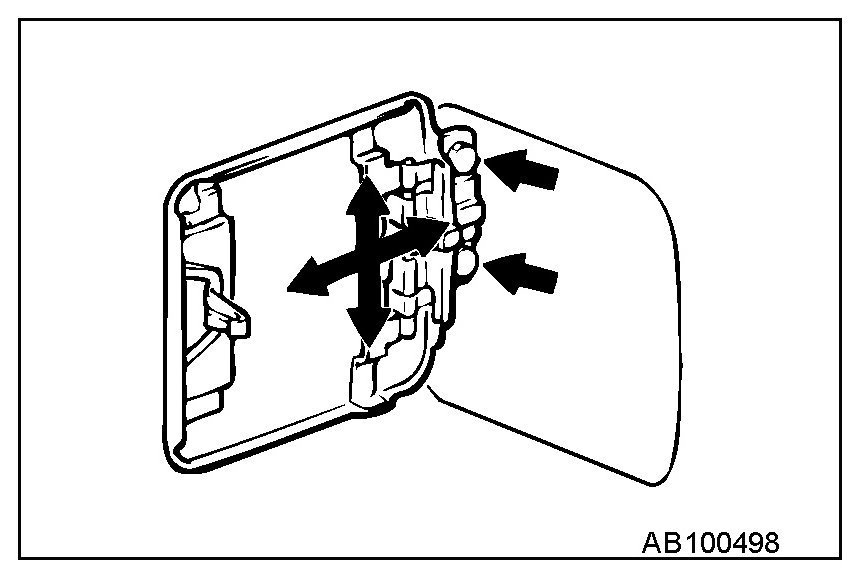

If the leveling and clearance of the fuel filler door is uneven loosen the fuel filler door assembling bolt then move and adjust the fuel filler door.

Fuel filler door assembling bolt tightening torque: 5.0 ± 1.0 N.m (44 ± 9 in-lb)
