Rear Door Panel: Service and Repair

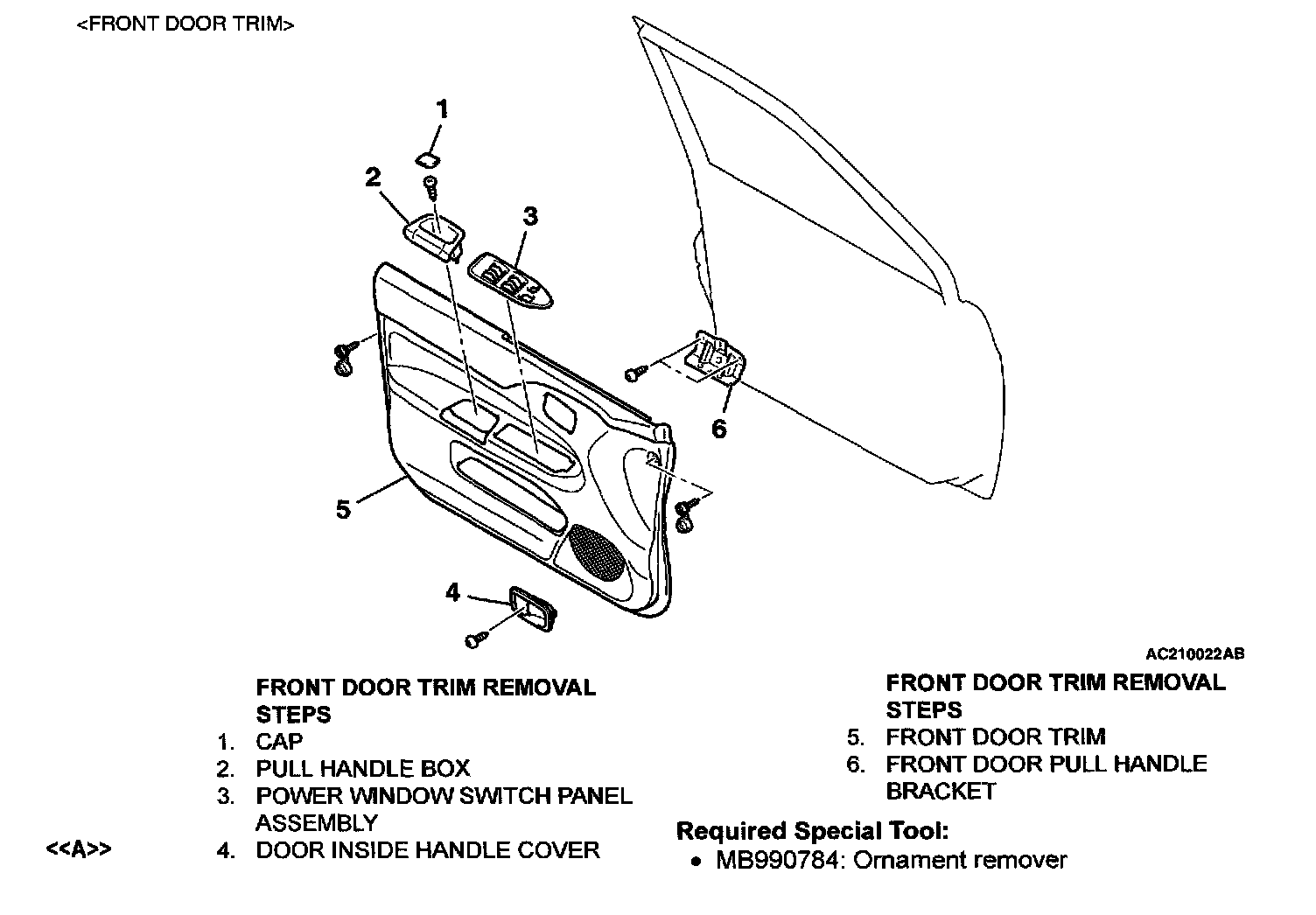

Front Door Trim:

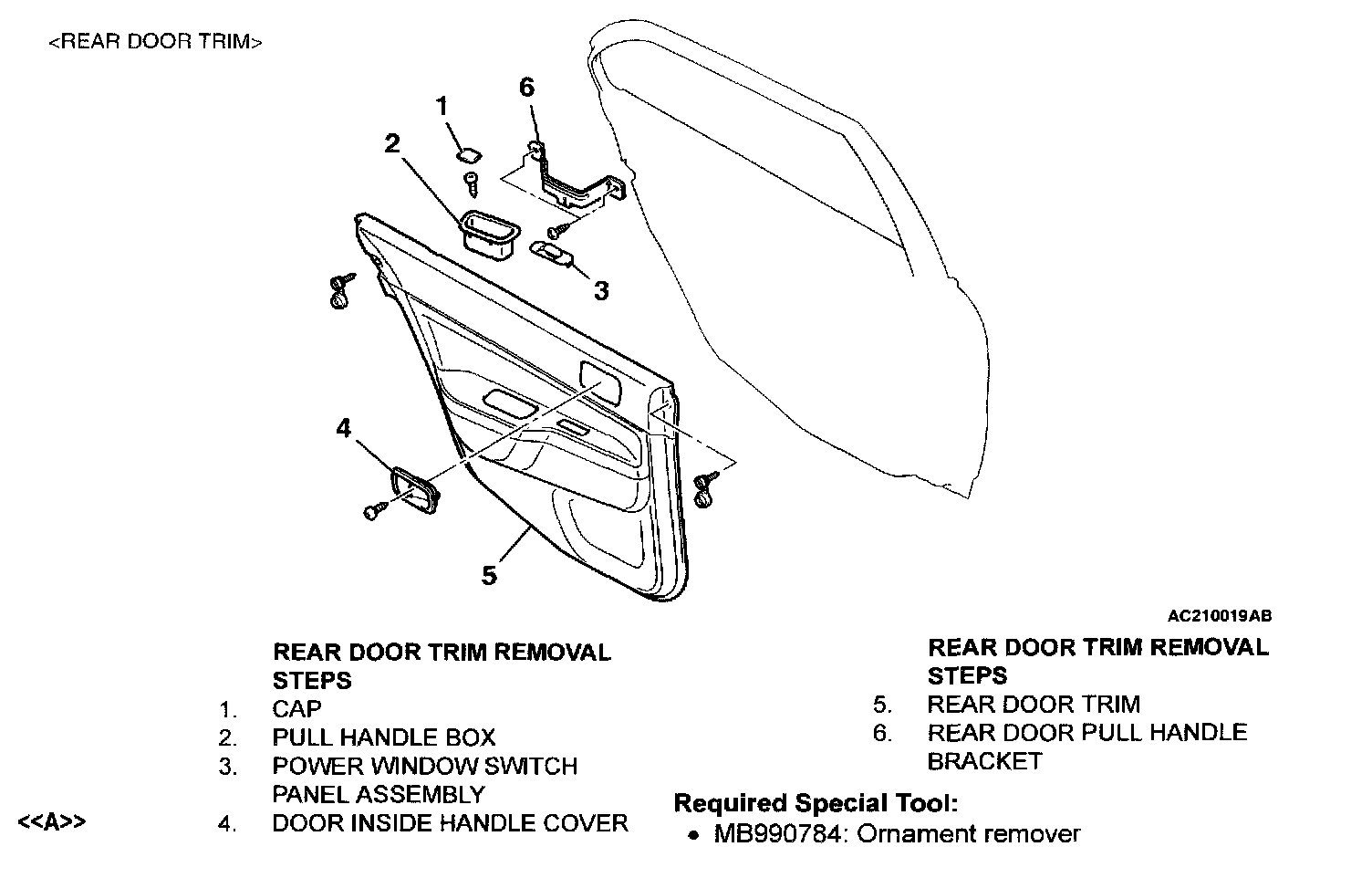

Rear Door Trim:

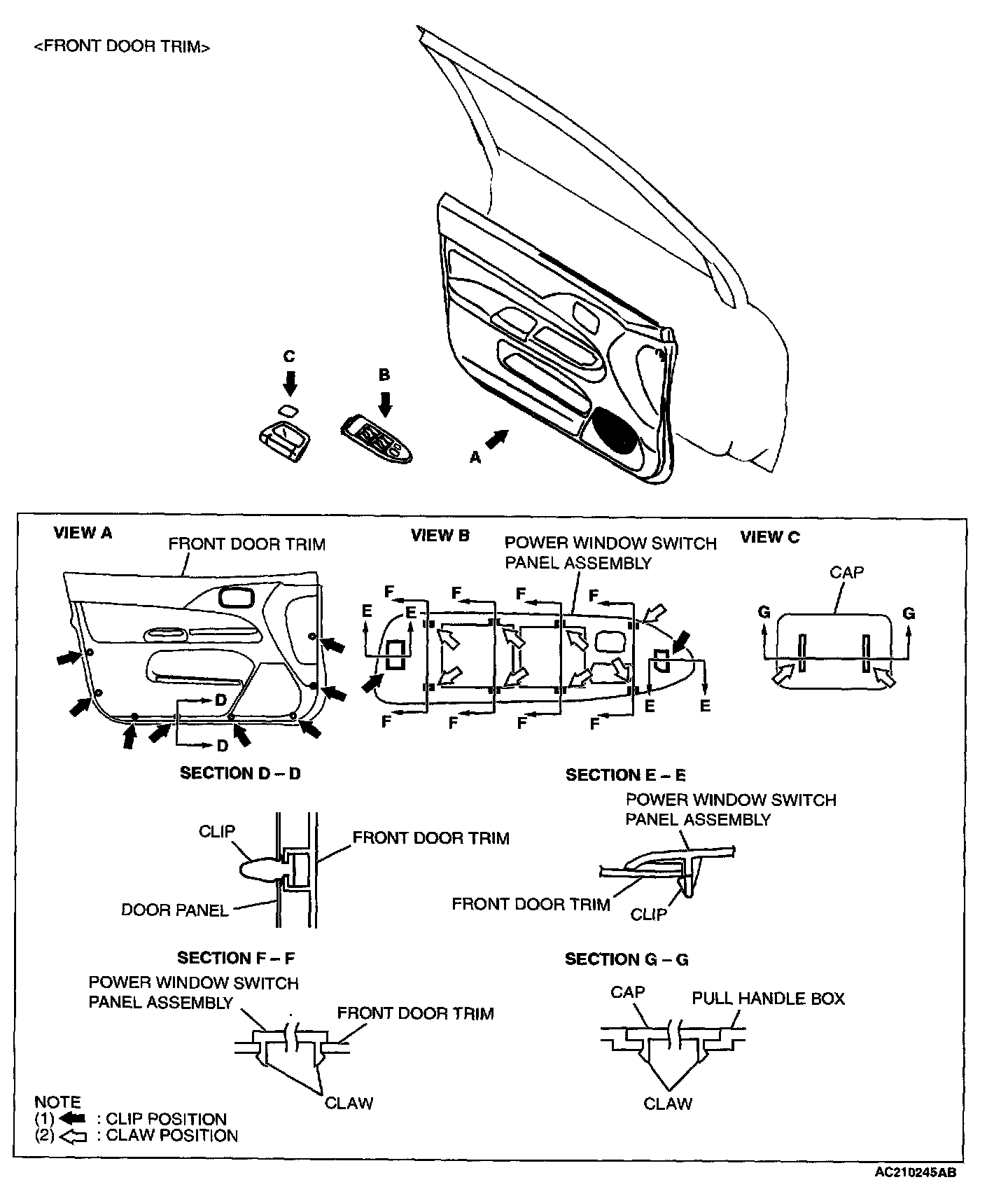

Clip And Claw Positions Part 1:

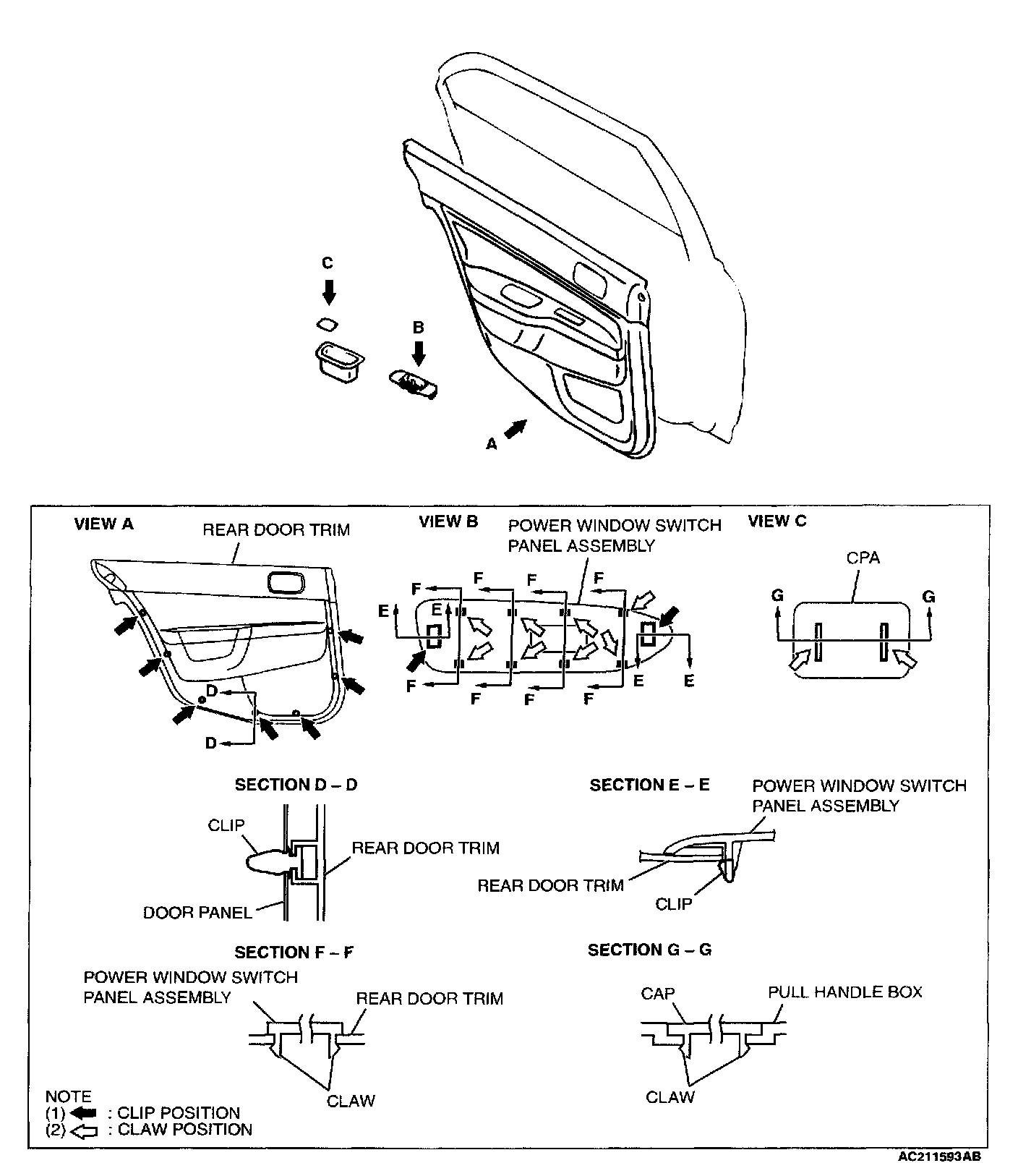

Clip And Claw Positions Part 2:

REMOVAL SERVICE POINT

[[A]] DOOR INSIDE HANDLE COVER REMOVAL

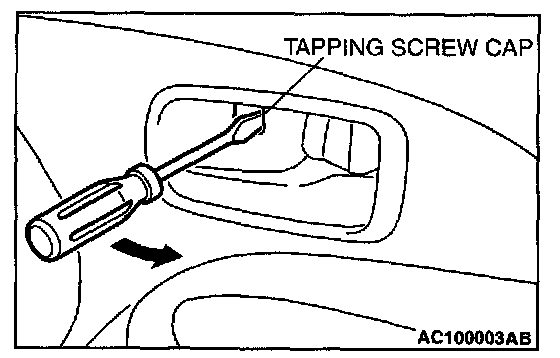

1. Insert a flat-tipped screwdriver into the rear end of the tapping screw cap on the door inside handle cover, and pry out the cap in the direction shown. Then remove the tapping screw.

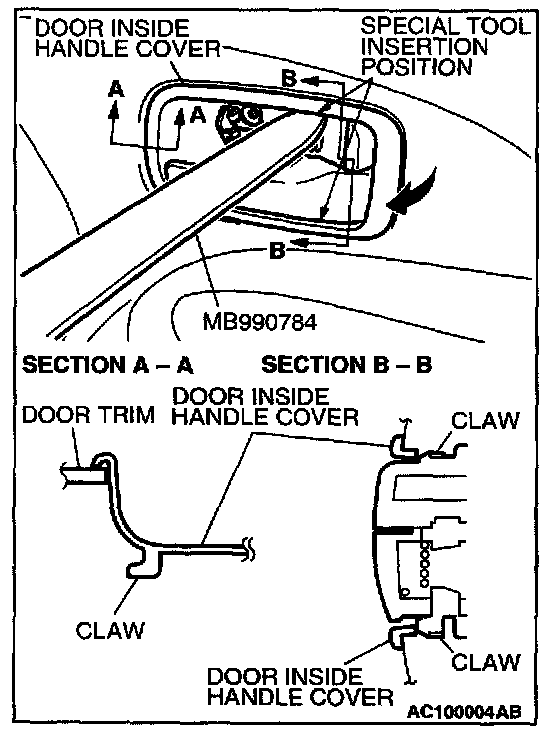

2. Insert special tool MB990784 into the clearance between the door inside handle cover and the door inside handle, and disengage the claws of the door inside handle.
3. Insert special tool MB990784 into the rear end of the inside handle cover, and pry out the cover in the direction shown. Then remove the door inside handle cover.
