Exploded Views

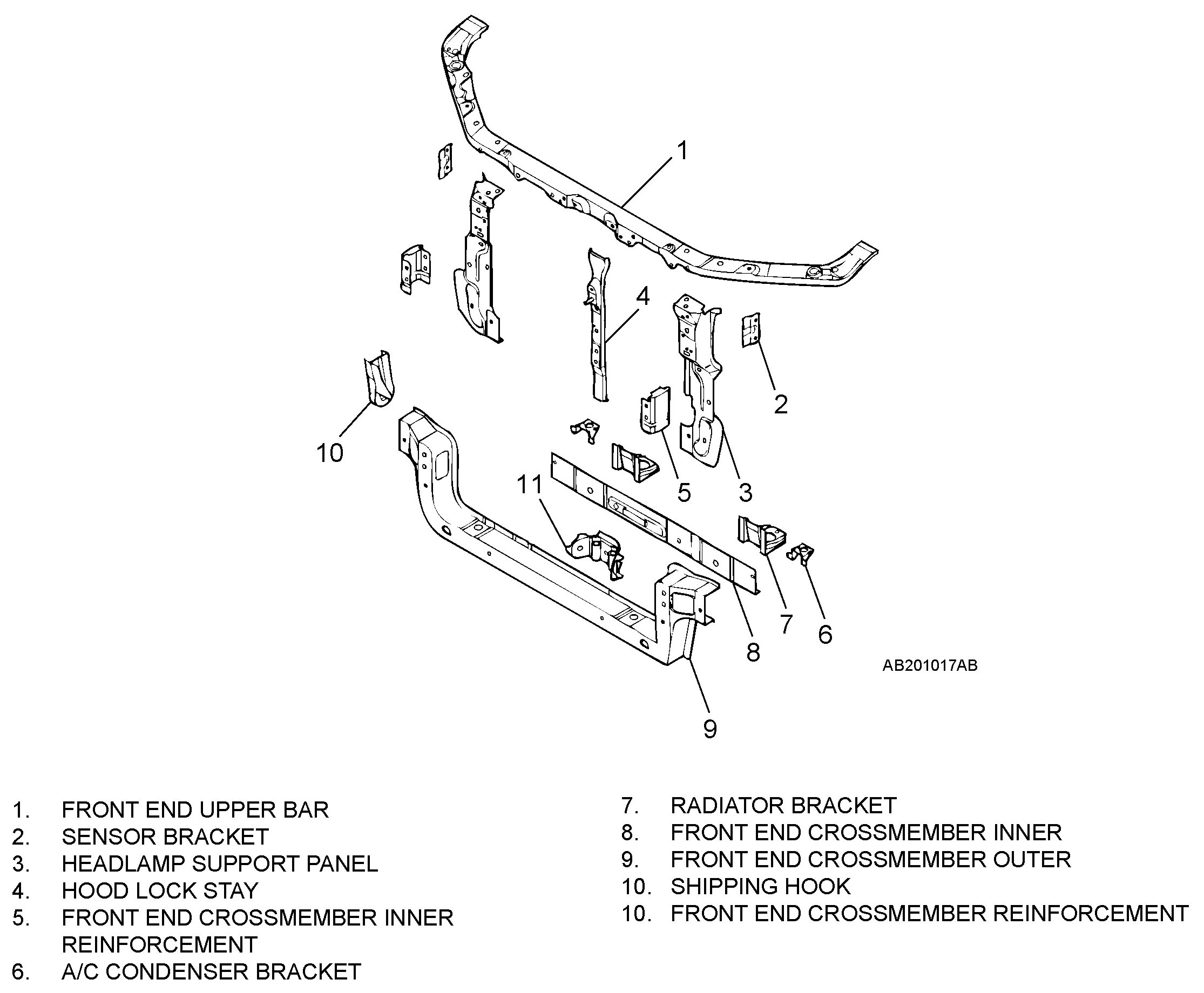

HEADLAMP SUPPORT




By adopting a steel sheet with variable thickness for the front end crossmember outer the steel sheet thickness on the right side of the vehicle has been increased to improve safety in collision and body rigidity.

NOTE: Steel sheets with different thickness welded to form one steel sheet.
