Overhaul

DISASSEMBLY AND ASSEMBLY

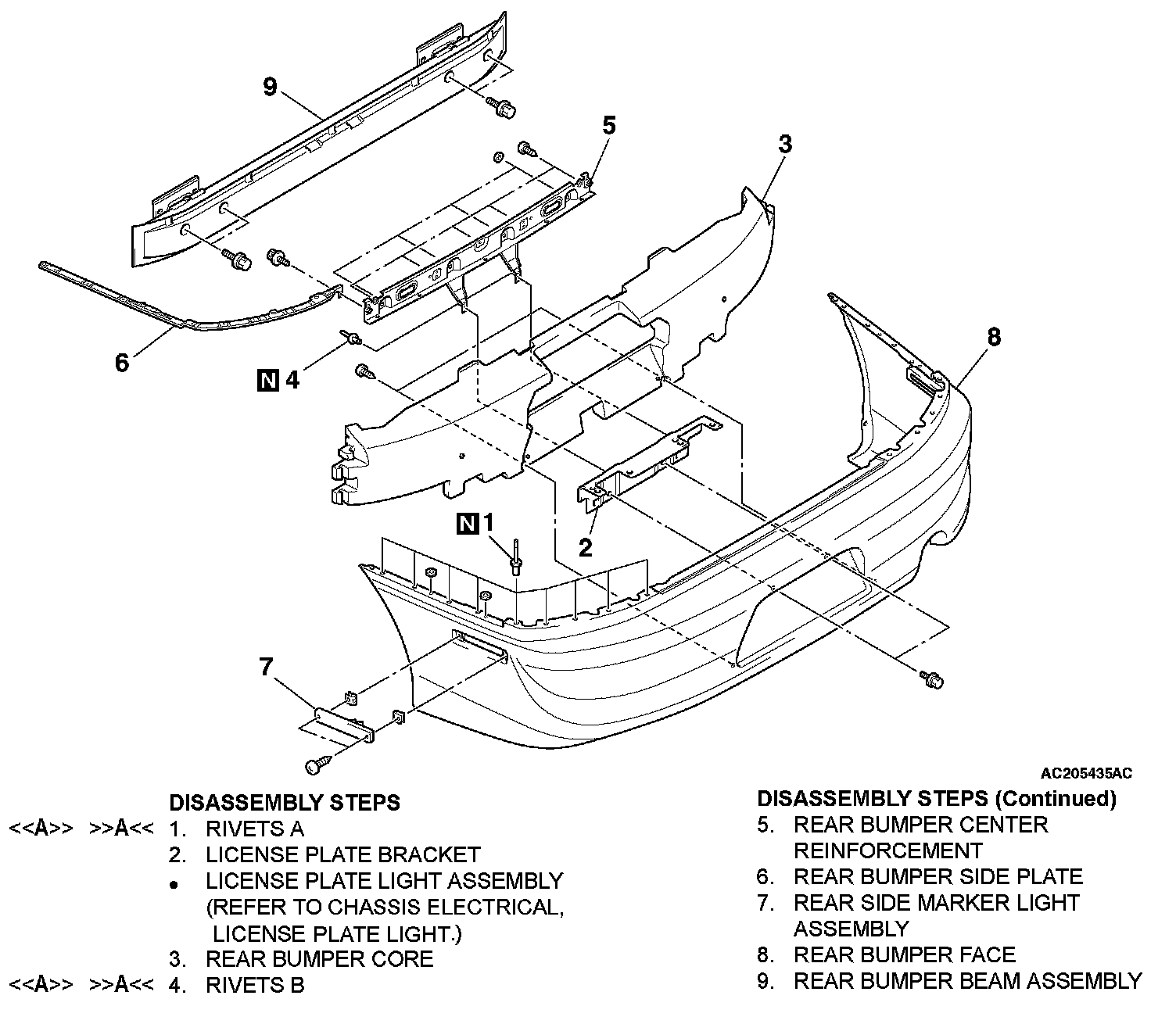

Disassembly Steps 1-9:

DISASSEMBLY SERVICE POINT

[[A]] RIVETS A AND B REMOVAL

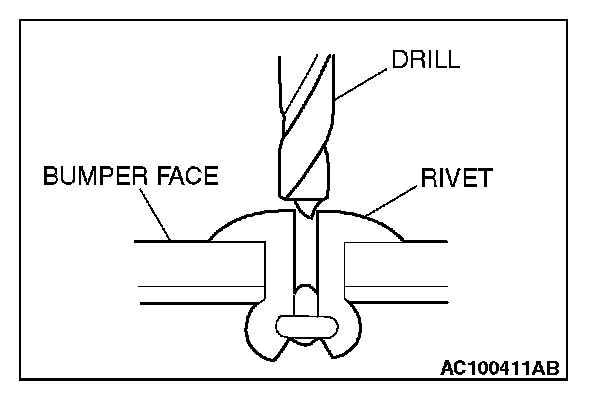

Use a drill [4.0 mm (0.16 inch)] to make a hole in the rivet to break it and then remove the rivet.

ASSEMBLY SERVICE POINT

]]A[[ RIVETS A AND B ASSEMBLY

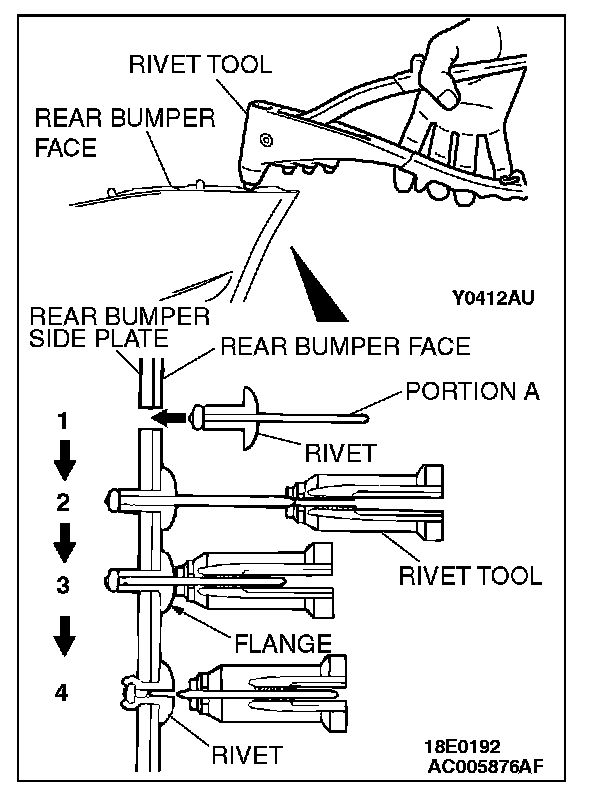

Use the rivet tool shown in the illustration to attach the rivet by the following procedures.

1. Insert the rivet into the rear bumper face and rear bumper side plate.
2. Place the rivet tool over portion A of the rivet.
3. While pushing the flange surface of the rivet with the rivet tool press the handle of the tool.
4. The thin part of portion A is cut out and the rivet is held in position.
