Procedures

This article has been updated per manufacturer's TSB #06-00-012.

Front Bumper, Disassembly and Assembly
-2006 Lancer Evolution IX Special Edition (SE)

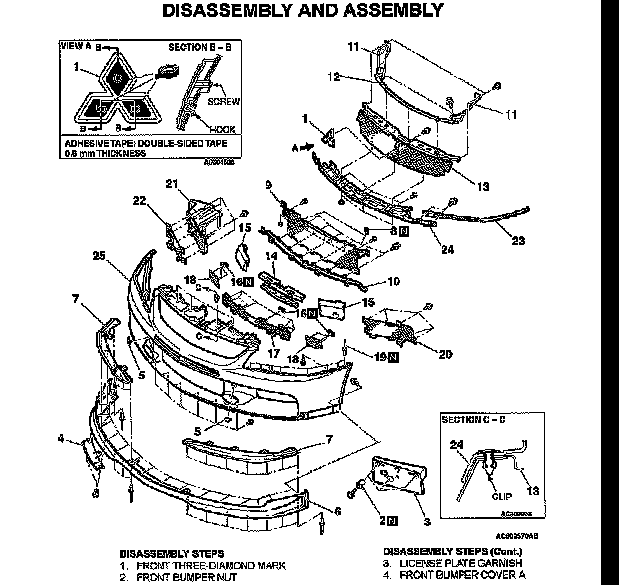

Exploded View, And Steps 1-4:

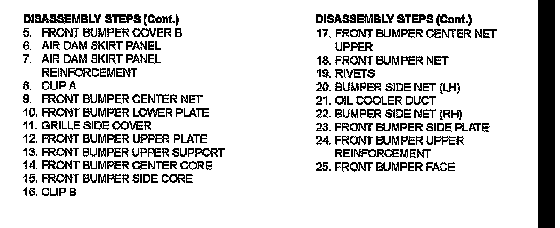

Steps 5-25:

Construction Diagram:
