Part 2 of 2

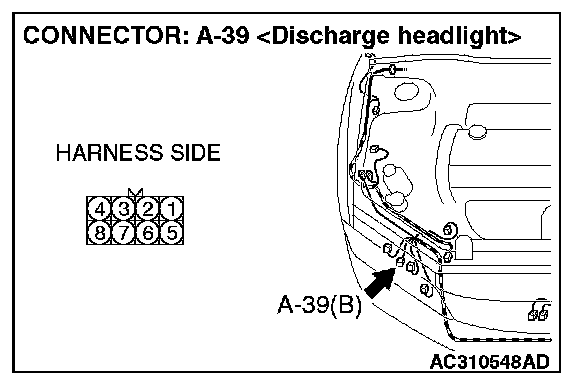

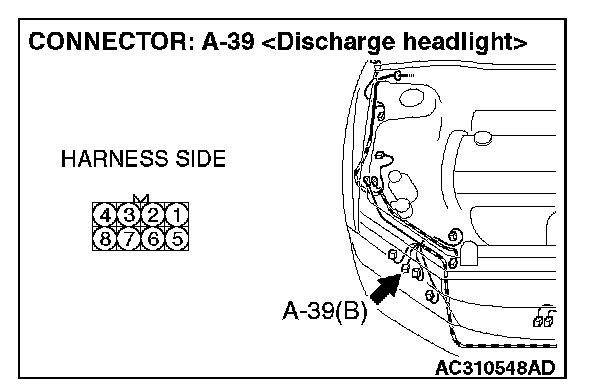

STEP 26. Check the wiring harness between front combination light assembly (RH) connector A-39 (terminal 7) and ground.

Q: Is the wiring harness between front combination light assembly (RH) connector A-39 (terminal 7) and ground in good condition?

YES: Replace the front combination light assembly (RH). Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

STEP 27. Check the wiring harness between front combination light assembly (RH) connector A-39 (terminal 2) and junction block connector C-214 (terminal 27).

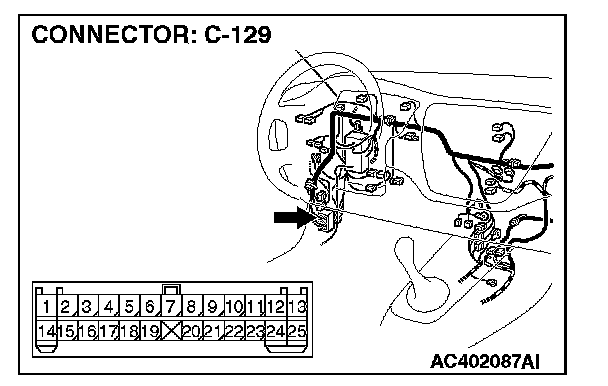

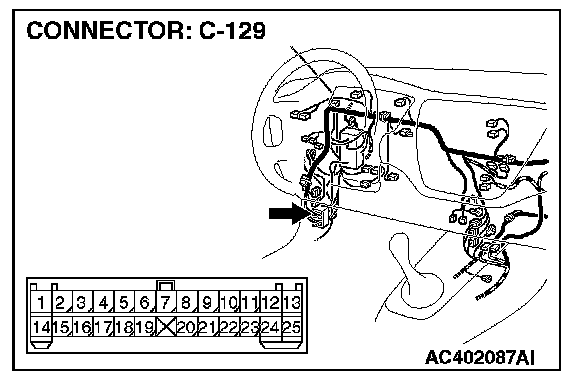

NOTE: Also check intermediate connector C-129 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-129 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between front combination light assembly (RH) connector A-39 (terminal 2) and junction block connector C-214 (terminal 27) in good condition?

YES: Replace the front combination light assembly (RH). Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

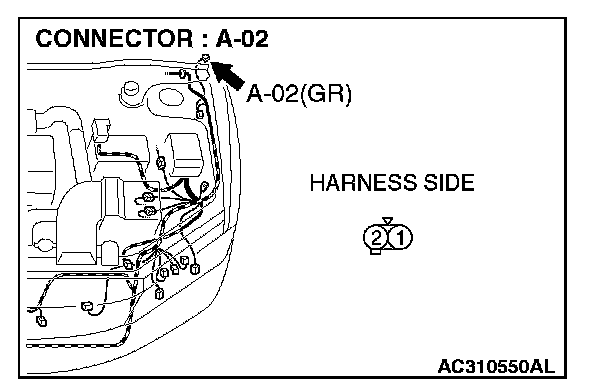

STEP 28. Check side turn-signal light (LH) connector A-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is the side turn-signal light (LH) connector A-02 in good condition?

YES: Go to Step 29.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 29. Check the side turn-signal light bulb (LH).

1. Remove the side turn-signal light (LH) bulb.
2. Verify that the side turn-signal light bulb (LH) is not damaged or burned out.

Q: Is the side turn-signal light (LH) bulb in good condition?

YES: Go to Step 30.

NO: Replace the side turn-signal light (LH) bulb. Verify that the turn-signal lights illuminate normally.

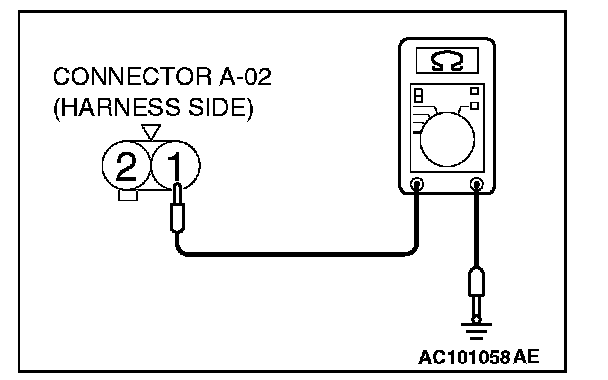

STEP 30. Check the ground circuit to the side turn-signal light (LH). Measure the resistance at side turn-signal light (LH) connector A-02.

1. Disconnect side turn-signal light (LH) connector A-02 and measure the resistance available at the wiring harness side of the connector.

2. Measure the resistance value between terminal 1 and ground.
- The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES: Go to Step 32.

NO: Go to Step 31.

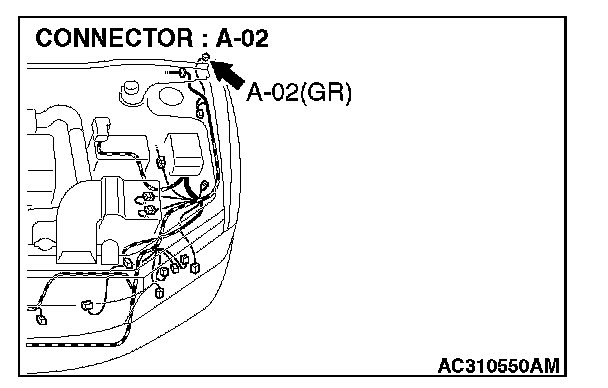

STEP 31. Check the wiring harness between side turn-signal light (LH) connector A-02 (terminal 1) and ground.

Q: Is the wiring harness between side turn-signal light (LH) connector A-02 (terminal 1) and ground in good condition?

YES: Replace the side turn-signal light (LH) socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

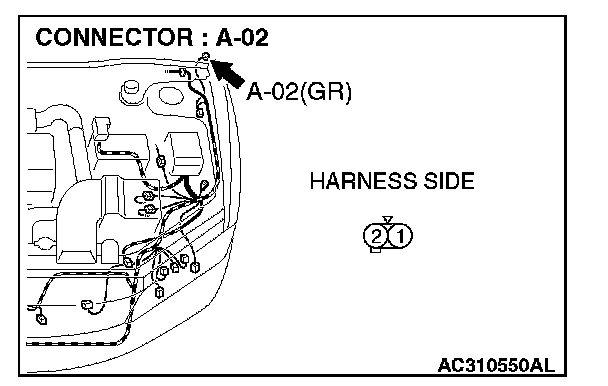

STEP 32. Check the wiring harness between side turn-signal light (LH) connector A-02 (terminal 2) and intermediate connector C-129 (terminal 20).

Q: Is the wiring harness between side turn-signal light (LH) connector A-02 (terminal 2) and intermediate connector C-129 (terminal 20) in good condition?

YES: Replace the side turn-signal light (LH) socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

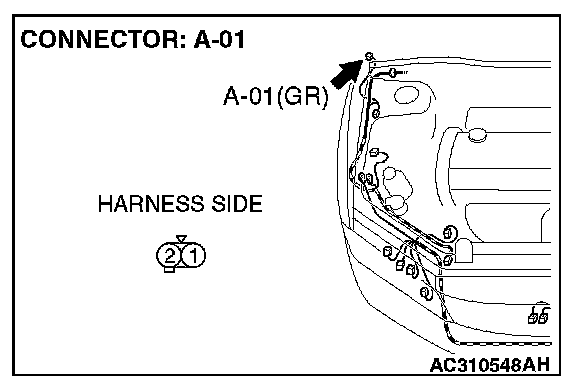

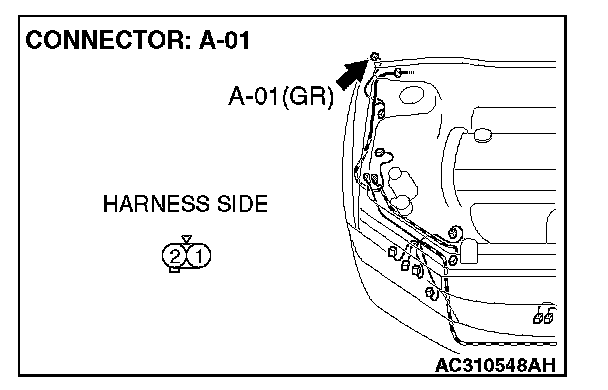

STEP 33. Check side turn-signal light (RH) connector A-01 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is the side turn-signal light (RH) connector A-01 in good condition?

YES: Go to Step 34.

NO: Repair or replace the damaged components). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 34. Check the side turn-signal light bulb (RH).

1. Remove the side turn-signal light (RH) bulb.
2. Verify that the side turn-signal light bulb (RH) is not damaged or burned out.

Q: Is the side turn-signal light (RH) bulb in good condition?

YES: Go to Step 35.

NO: Replace the side turn-signal light (RH) bulb. Verify that the turn-signal lights illuminate normally.

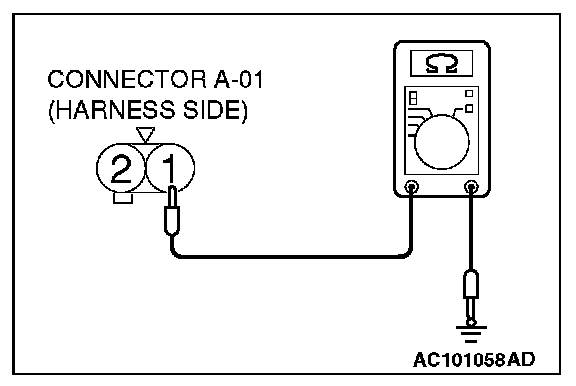

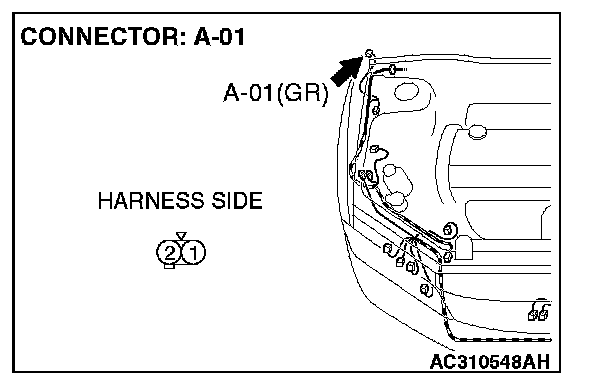

STEP 35. Check the ground circuit to the side turn-signal light (RH). Measure the resistance at side turn-signal light (RH) connector A-01.

1. Disconnect side turn-signal light (RH) connector A-01 and measure the resistance available at the wiring harness side of the connector.

STEP 36. Check the wiring harness between side turn-signal light (RH) connector A-01 (terminal 1) and ground.

Q: Is the wiring harness between side turn-signal light (RH) connector A-01 (terminal 1) and ground in good condition?

YES: Replace the side turn-signal light (RH) socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

STEP 37. Check the wiring harness between side turn-signal light (RH) connector A-01 (terminal 2) and junction block connector C-210 (terminal 7).

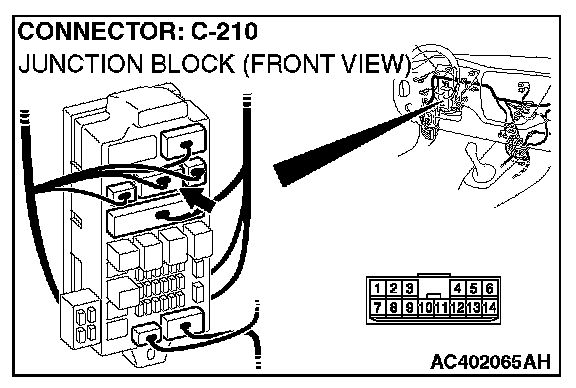

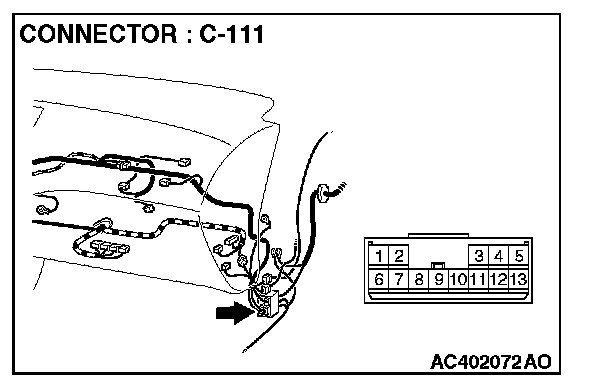

NOTE: Also check intermediate connector C-111 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-111 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between side turn-signal light (RH) connector A-01 (terminal 2) and junction block connector C-210 (terminal 7) in good condition?

YES: Replace the socket. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

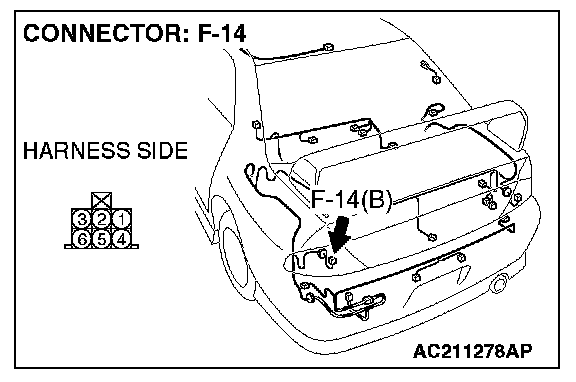

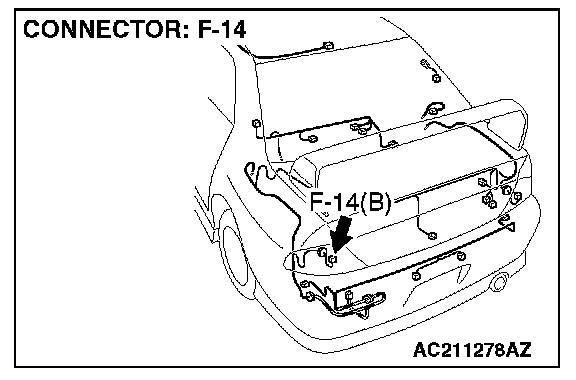

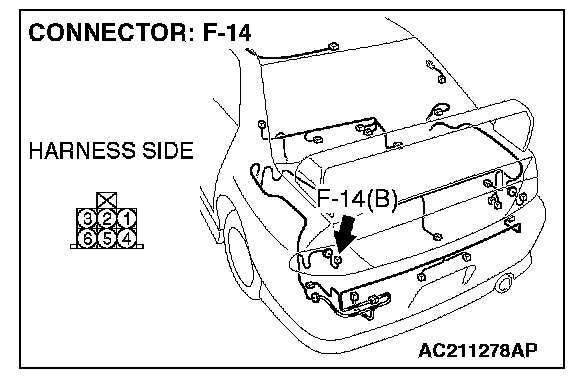

STEP 38. Check rear combination light (LH) connector F-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light (LH) connector F-14 in good condition?

YES: Go to Step 39.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 39. Check the rear turn-signal light bulb (LH).

1. Remove the rear turn-signal (LH) light bulb.
2. Verify that the rear turn-signal light bulb (LH) is not damaged or burned out.

Q: Is the rear turn-signal (LH) light bulb in good condition?

YES: Go to Step 40.

NO: Replace the rear turn-signal (LH) light bulb. Verify that the turn-signal lights illuminate normally.

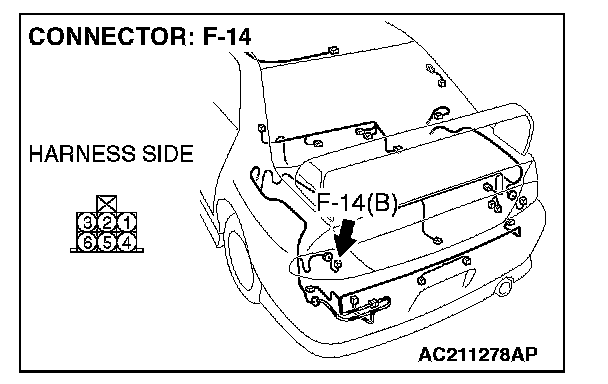

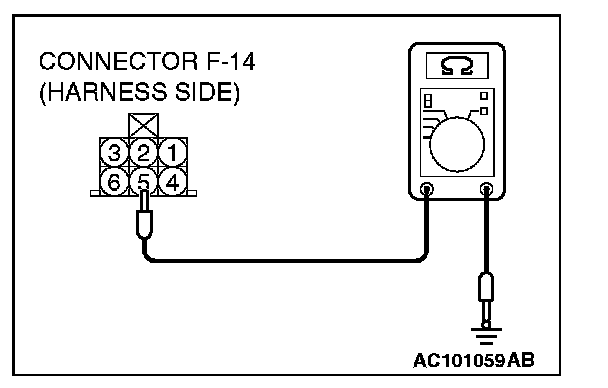

STEP 40. Check the ground circuit to the rear turn-signal light (LH). Measure the resistance at rear combination light (LH) connector F-14.

1. Disconnect rear combination light (LH) connector F-14 and measure the resistance available at the wiring harness side of the connector.

2. Measure the resistance value between terminal 5 and ground.
- The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES: Go to Step 42.

NO: Go to Step 41.

STEP 41. Check the wiring harness between rear combination light (LH) connector F-14 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (LH) connector F-14 (terminal 5) and ground in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

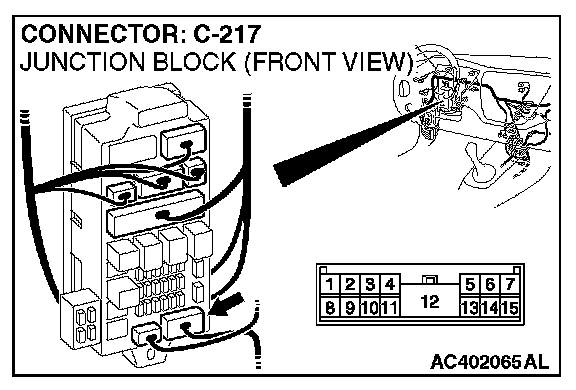

STEP 42. Check the wiring harness between rear combination light (LH) connector F-14 (terminal 1) and junction block connector C-217 (terminal 8).

Q: Is the wiring harness between rear combination light (LH) connector F-14 (terminal 1) and junction block connector C-217 (terminal 8) in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

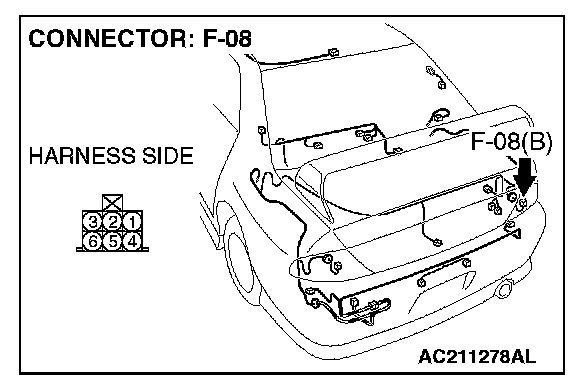

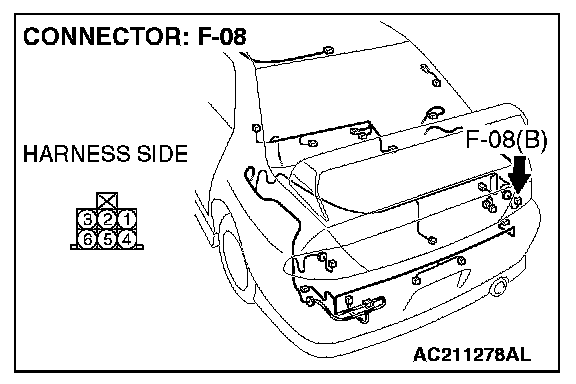

STEP 43. Check rear combination light (RH) connector F-08 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light (RH) connector F-08 in good condition?

YES: Go to Step 44.

NO: Repair or replace the damaged components). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 44. Check the rear turn-signal light bulb (RH).

1. Remove the rear turn-signal light bulb (RH).
2. Verify that the rear turn-signal light bulb (RH) is not damaged or burned out.

Q: Is the rear turn-signal light bulb (RH) in good condition?

YES: Go to Step 45.

NO: Replace the rear turn-signal (RH) light bulb. Verify that the turn-signal lights illuminate normally.

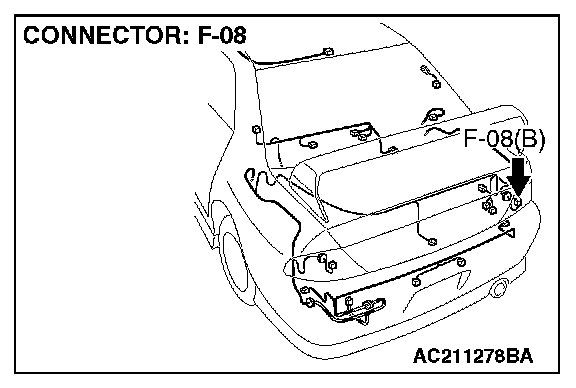

STEP 45. Check the ground circuit to the rear turn-signal light (RH). Measure the resistance at rear combination light (RH) connector F-08.

1. Disconnect rear combination light (LH) connector F-08 and measure the resistance available at the wiring harness side of the connector.

STEP 46. Check the wiring harness between rear combination light (RH) connector F-08 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (RH) connector F-08 (terminal 5) and ground in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

STEP 47. Check the wiring harness between rear combination light (RH) connector F-08 (terminal 1) and junction block connector C-210 (terminal 7).

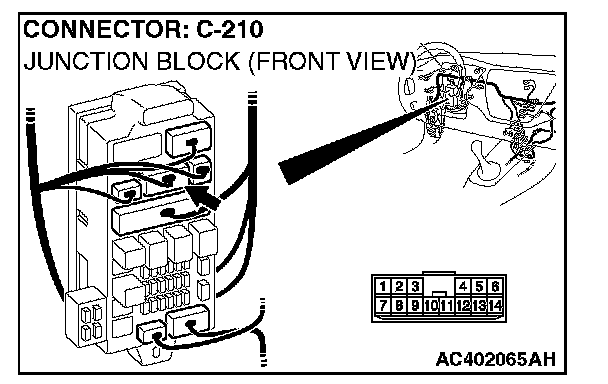

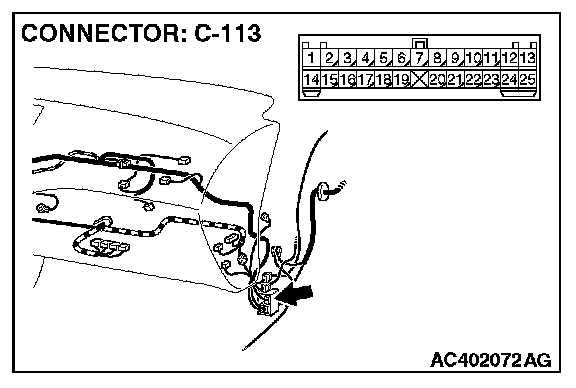

NOTE: Also check intermediate connector C-113 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-113 is damaged, repair or replace the damaged components) as described in Harness Connector Inspection.

Q: Is the wiring harness between rear combination light (RH) connector F-08 (terminal 1) and junction block connector C-210 (terminal 7) in good condition?

YES: Replace the socket assembly. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

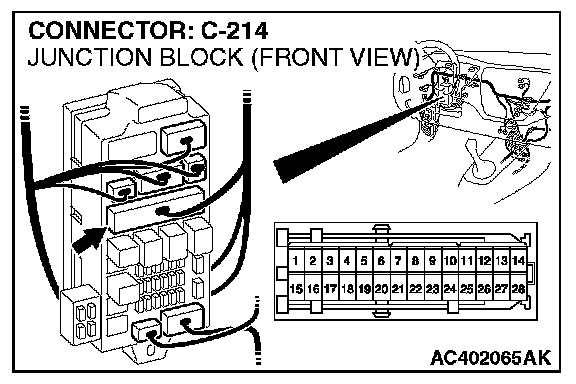

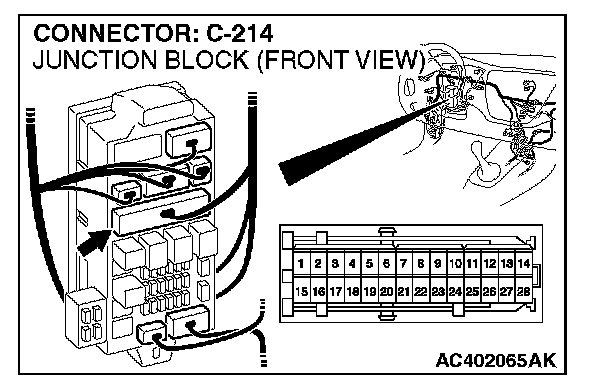

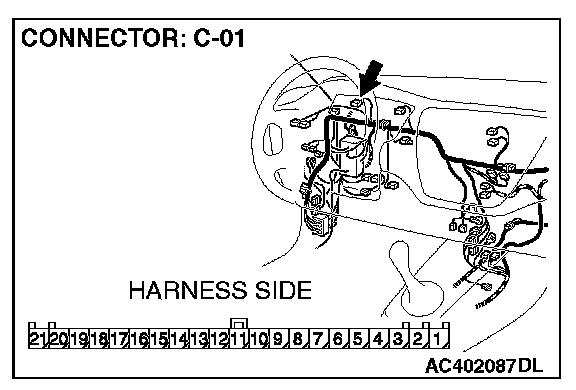

STEP 48. Check combination meter connector C-01 and junction block connector C-214 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are combination meter connector C-01 and junction block connector C-214 in good condition?

YES: Go to Step 49.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 49. Check the wiring harness between combination meter connector C-01 (terminal 3) and junction block connector C-214 (terminal 22).

Q: Is the wiring harness between combination meter connector C-01 (terminal 3) and junction block connector C-214 (terminal 22) in good condition?

YES: Replace the combination meter. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

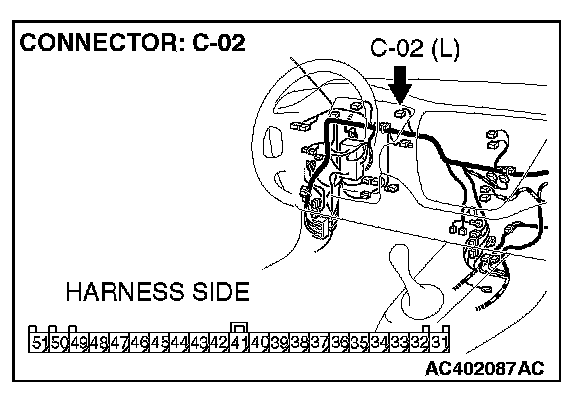

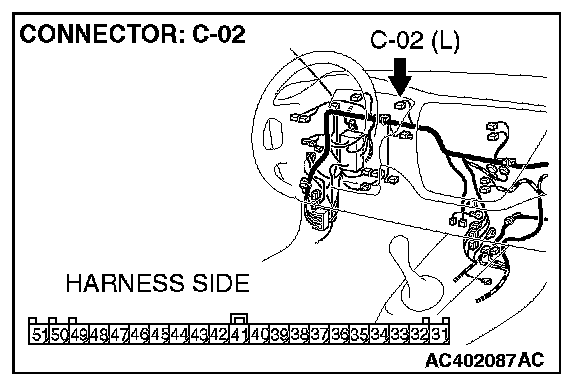

STEP 50. Check combination meter connector C-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is combination meter connector C-02 in good condition?

YES: Go to Step 51.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 51. Check the wiring harness between combination meter connector C-02 (terminal 49) and junction block connector C-214 (terminal 27).

Q: Is the wiring harness between combination meter connector C-02 (terminal 49) and junction block connector C-214 (terminal 27) in good condition?

YES: Replace the combination meter. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.

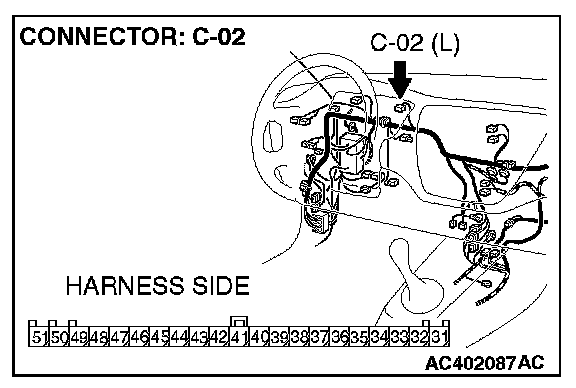

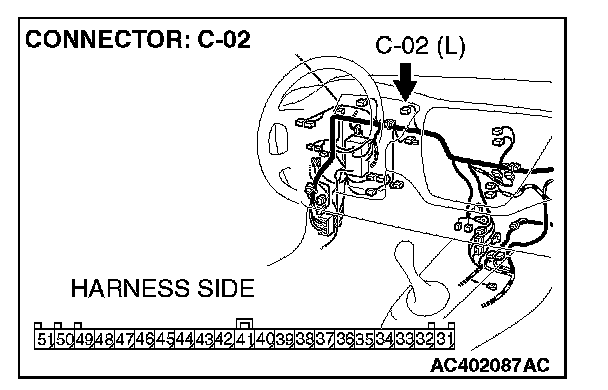

STEP 52. Check combination meter connector C-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is combination meter connector C-02 in good condition?

YES: Go to Step 53.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the turn-signal lights illuminate normally.

STEP 53. Check the wiring harness between combination meter connector C-02 (terminal 48) and ground.

Q: Is the wiring harness between combination meter connector C-02 (terminal 48) and ground in good condition?

YES: Replace the combination meter. Verify that the turn-signal lights illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the turn-signal lights illuminate normally.
