Part 2 of 5

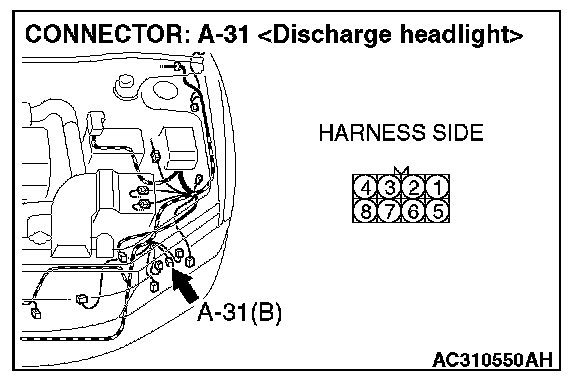

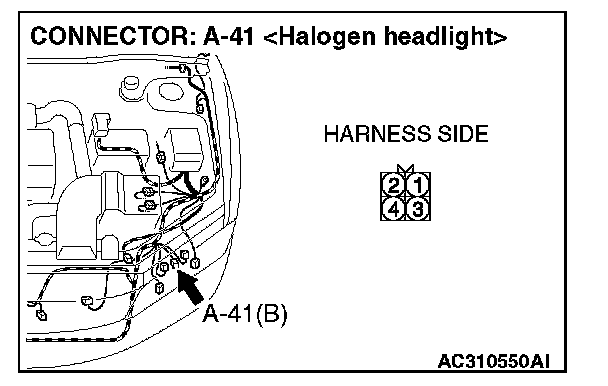

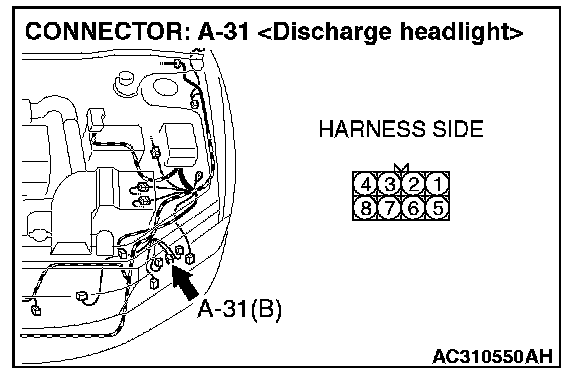

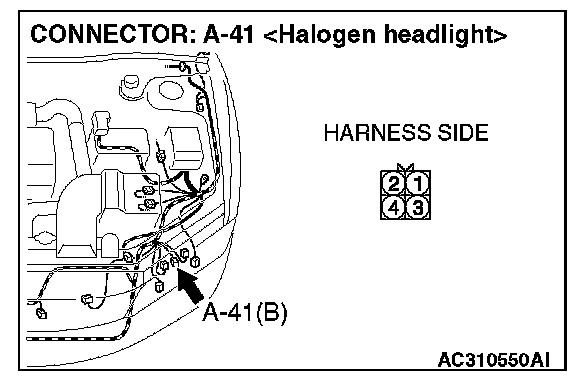

STEP 11. Check the wiring harness between front combination light assembly (LH) connector A-31 (terminal 7) and ground, or connector A-41 (terminal 3) and ground.

Q: Is the wiring harness between position light (LH) connector A-31 (terminal 7) and ground or between position light (LH) connector A-41 (terminal 3) and ground in good condition?

YES: Replace the front combination light assembly (LH). Verify that the position light (LH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the position light (LH) illuminates normally.

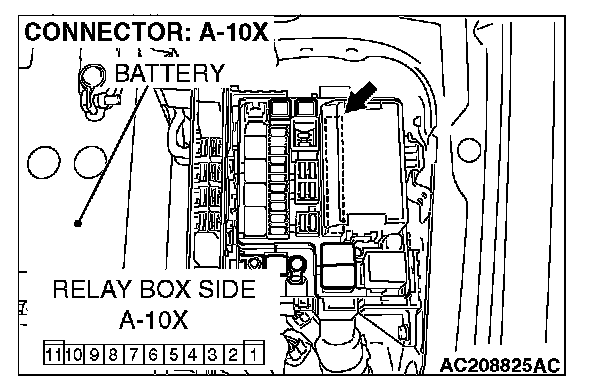

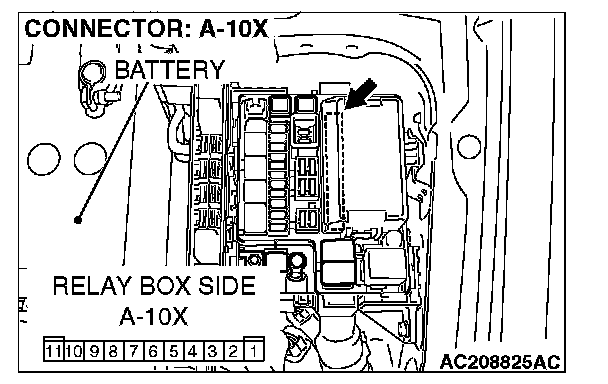

STEP 12. Check the wiring harness between front combination light assembly (LH) connector A-31 (terminal 3) or A-41 (terminal 2) and front-ECU connector A-1 OX (terminal 8).

Q: Is the wiring harness between front combination light assembly (LH) connector A-31 (terminal 3) or A-41 (terminal 2) and front-ECU connector A-1 OX (terminal 8) in good condition?

YES: Replace the front combination light assembly (LH). Verify that the position light (LH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the position light (LH) illuminates normally.

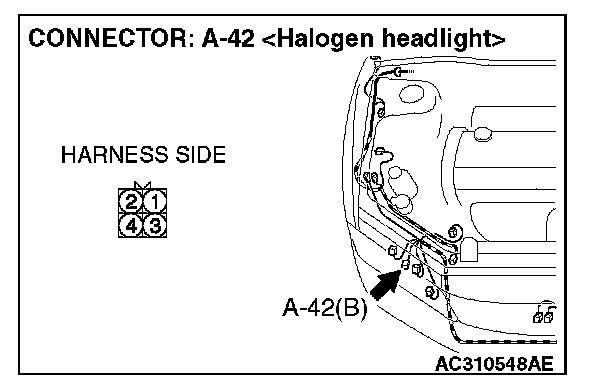

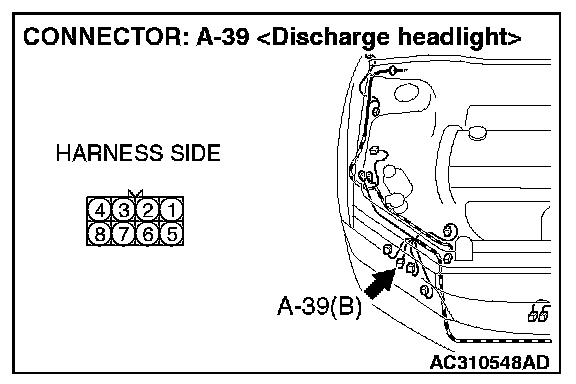

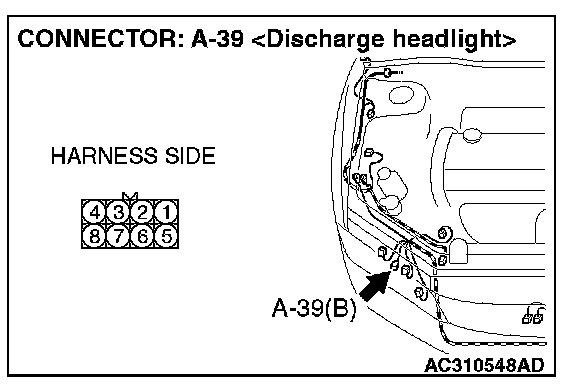

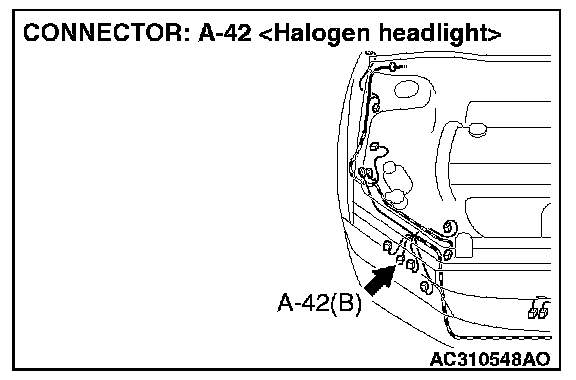

STEP 13. Check front combination light assembly (RH) connector A-39 or A-42 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is front combination light assembly (RH) connector A-39 or A-42 in good condition?

YES: Go to Step 14.

NO: Repair or replace the damaged components). Refer to Harness Connector Inspection. Verify that the position light (RH) illuminates normally.

STEP 14. Check the position light bulb (RH).

1. Remove the position light bulb (RH).
2. Verify that the position light bulb (RH) is not damaged or burned out.

Q: Is the position light bulb (RH) in good condition?

YES: Go to Step 15.

NO: Replace the position light bulb (RH). Verify that the position light (RH) illuminates normally.

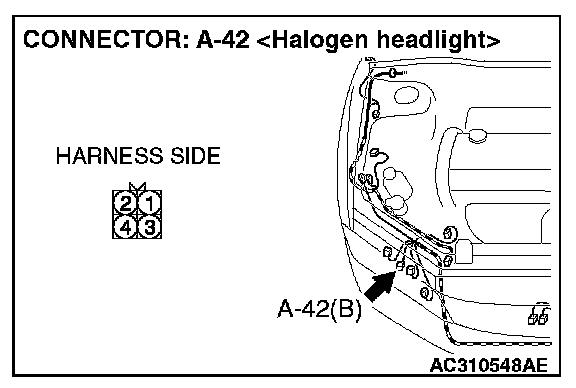

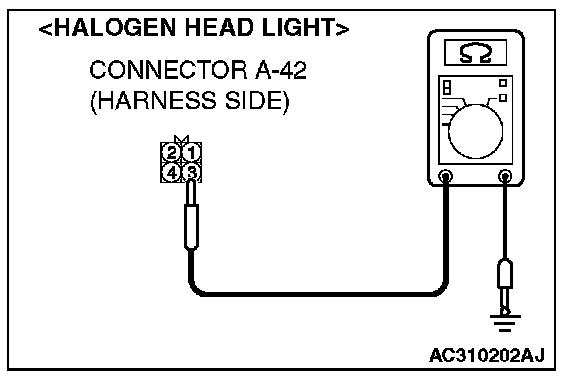

STEP 15. Check the ground circuit to the position light (RH). Measure the resistance at front combination light assembly (RH) connector A-39 or A-42 .

1. Disconnect front combination light assembly (RH) connector A-39 or A-42 and measure the resistance available at the wiring harness side of the connector.

2. Measure the resistance value between terminal 7 and ground.
- The resistance should equal 2 ohms or less.

3. Measure the resistance value between terminal 3 and ground.
- The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES: Go to Step 17.

NO: Go to Step 16.

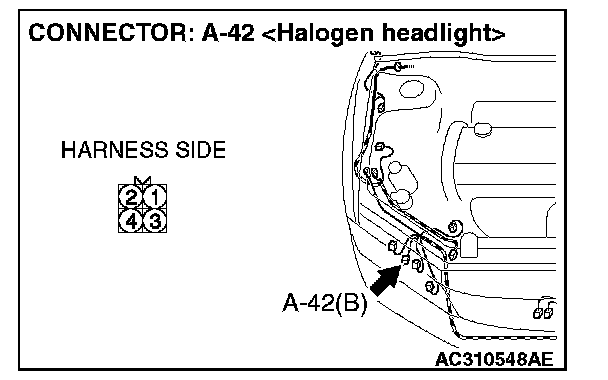

STEP 16. Check the wiring harness between front combination light assembly (RH) connector A-39 (terminal 7) or A-42 (terminal 3) and ground.

Q: Is the wiring harness between front combination light assembly (RH) connector A-39 (terminal 7) or A-42 (terminal 3) and ground in good condition?

YES: Replace the front combination light assembly (RH). Verify that the position light (RH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the position light (RH) illuminates normally.

STEP 17. Check the wiring harness between front combination light assembly (RH) connector A-39 (terminal 3) or A-42 (terminal 2) and front-ECU connector A-1 OX (terminal 8).

Q: Is the wiring harness between front combination light assembly (RH) connector A-39 (terminal 3) or A-42 (terminal 2) and front-ECU connector A-1 OX (terminal 8) in good condition?

YES: Replace the front combination light assembly (RH). Verify that the position light (RH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the position light (RH) illuminates normally.

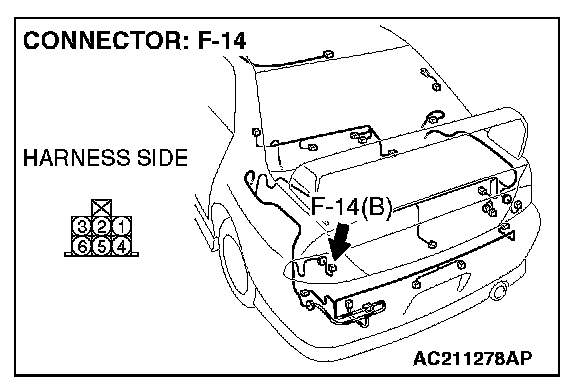

STEP 18. Check rear combination light assembly (LH) connector F-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light assembly (LH) connector F-14 in good condition?

YES: Go to Step 19.

NO: Repair or replace the damaged components). Refer to Harness Connector Inspection. Verify that the taillights (LH) illuminate normally.

STEP 19. Check the stop/taillight bulb (LH).

1. Remove the stop/taillight bulb (LH).
2. Verify that the stop/taillight bulb (LH) is not damaged or burned out.

Q: Is the stop/taillight bulb (LH) in good condition?

YES: Go to Step 20.

NO: Replace the stop/taillight bulb (LH). Verify that the taillights (LH) illuminate normally.

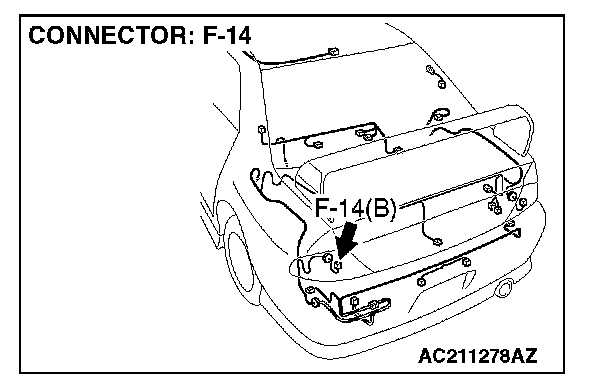

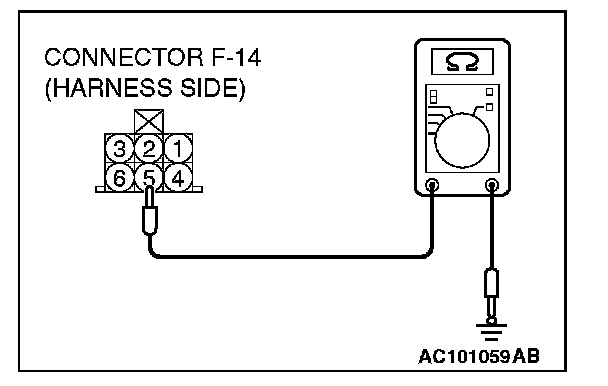

STEP 20. Check the ground circuit to the rear combination light (LH). Measure the resistance at rear combination light assembly (LH) connector F-14.

1. Disconnect rear combination light assembly (LH) connector F-14 and measure the resistance available at the wiring harness side of the connector.

2. Measure the resistance value between terminal 5 and ground.
- The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES: Go to Step 22.

NO: Go to Step 21.
