Inspection Procedure D-5

Power Windows: Front passenger's or rear power windows do not work at all by operating the power window main switch.

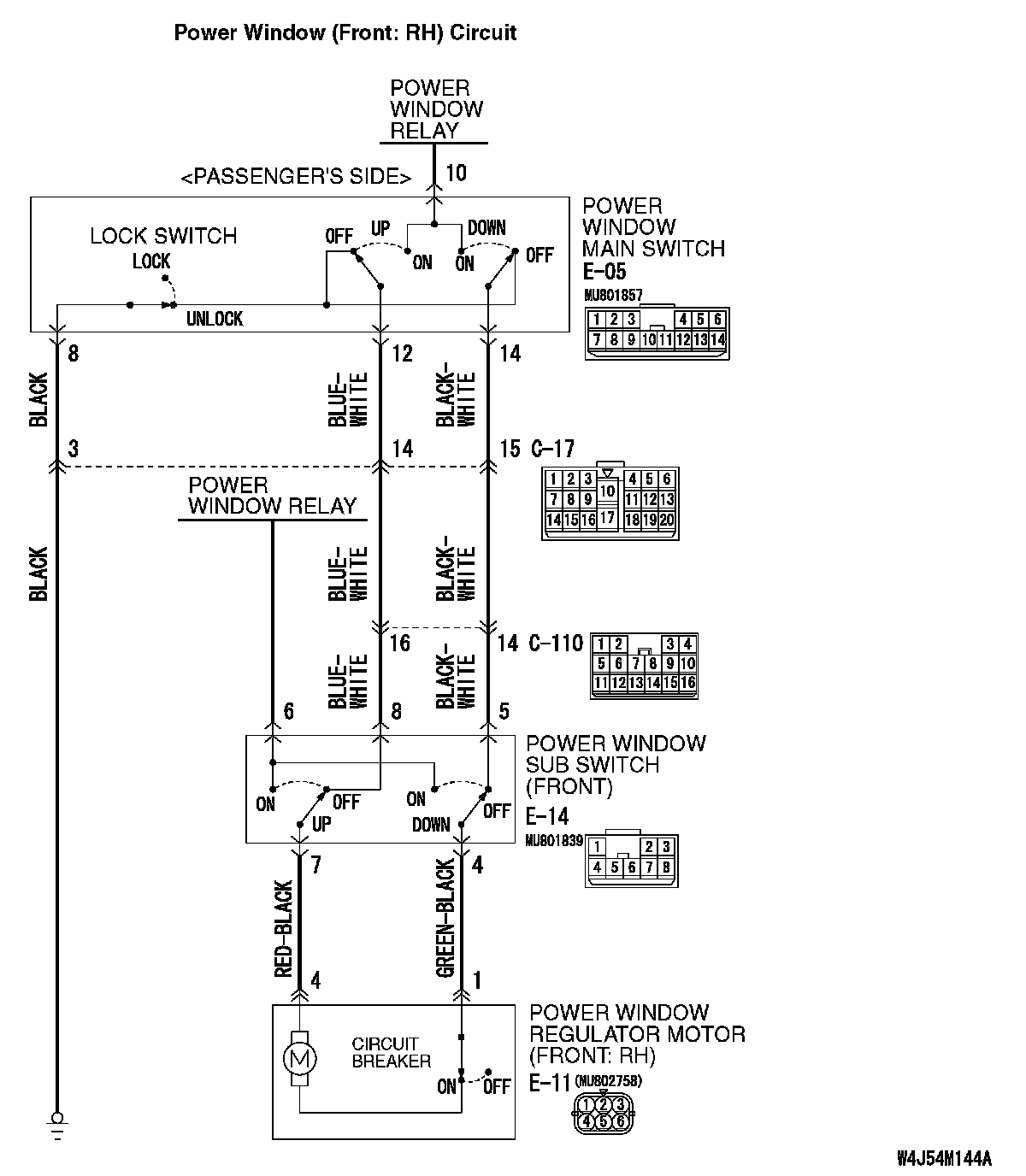

Power Window (Front: RH) Circuit:

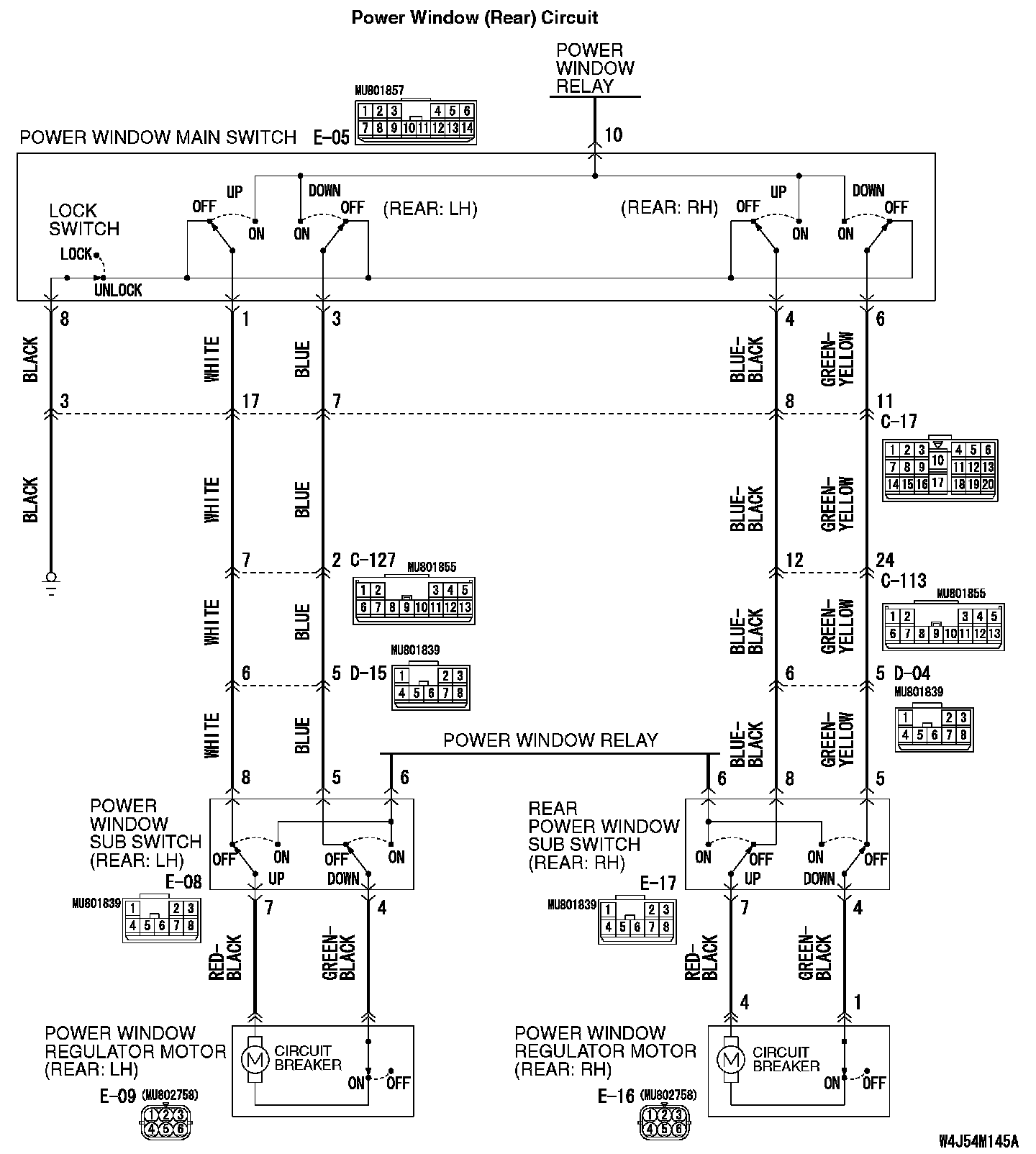

Power Window (Rear) Circuit:

CIRCUIT OPERATION
When you operate each power window sub switch for front passenger's or rear (incorporated in the power window main switch), the corresponding power window motor operates, thus causing each power window to close or open.

TECHNICAL DESCRIPTION (COMMENT)
If the corresponding power window opens and closes normally when each power window sub switch is operated, the power window main switch may be defective.

TROUBLESHOOTING HINT
- The power window main switch may be defective

DIAGNOSIS

Verify that power window sub switches operate normally.

Q: A power window can not work by means of the power window main switch. Can you operate the power window by means of the corresponding power window sub switch?

YES: Replace the power window main switch. Verify that the front passenger's or rear power window can work normally by means of power window main switch.

NO: Refer to Symptom Chart before resolving this trouble.
