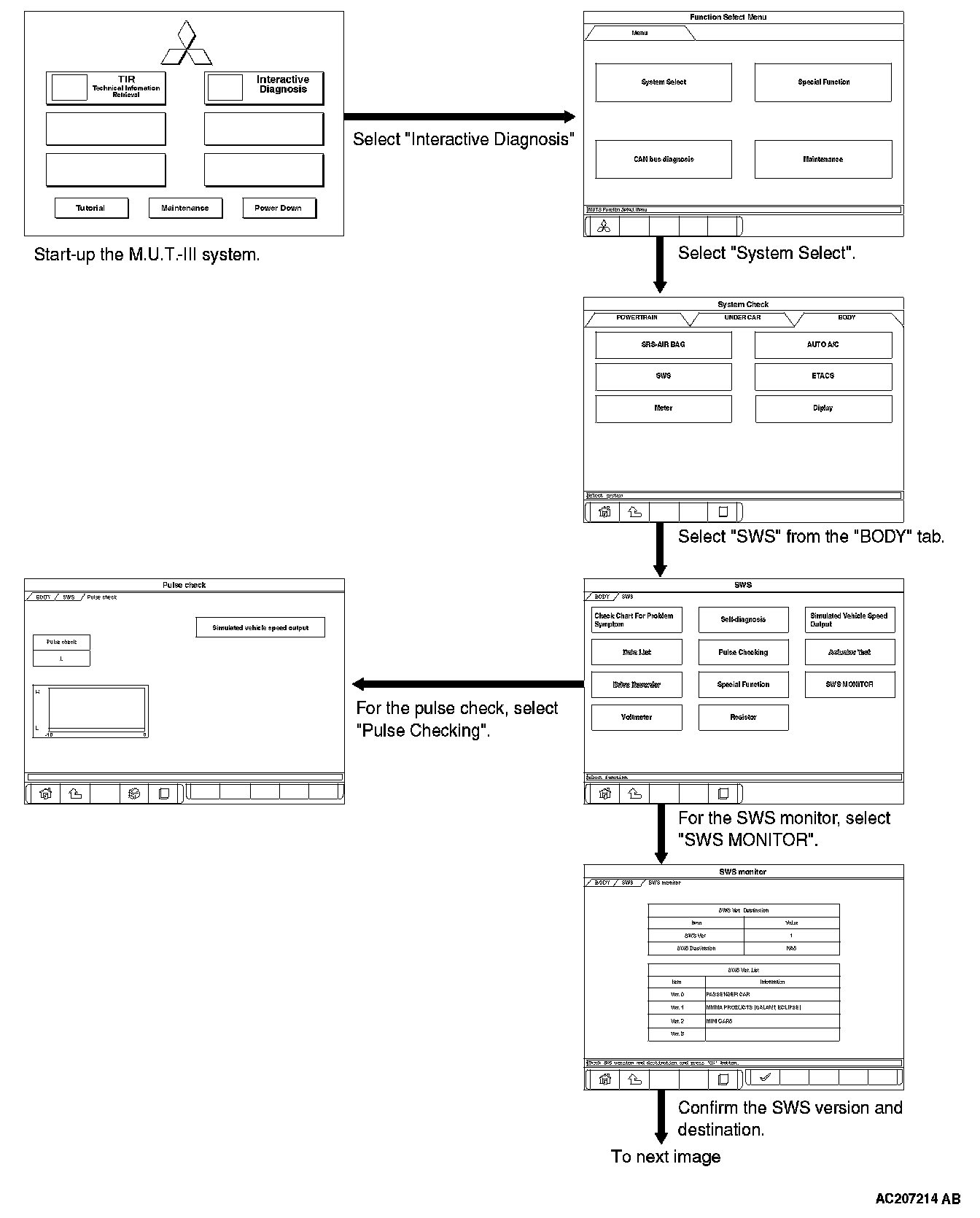

HOW TO USE SWS MONITOR
Part 1:
Part 2:
To carry out troubleshooting, operate scan tool MB991958 (M.U.T.-III Sub Assembly) as above.
