Data Reference Table

Data List REFERENCE TABLE

Data List Reference Table - Column ECU (Column Switch):

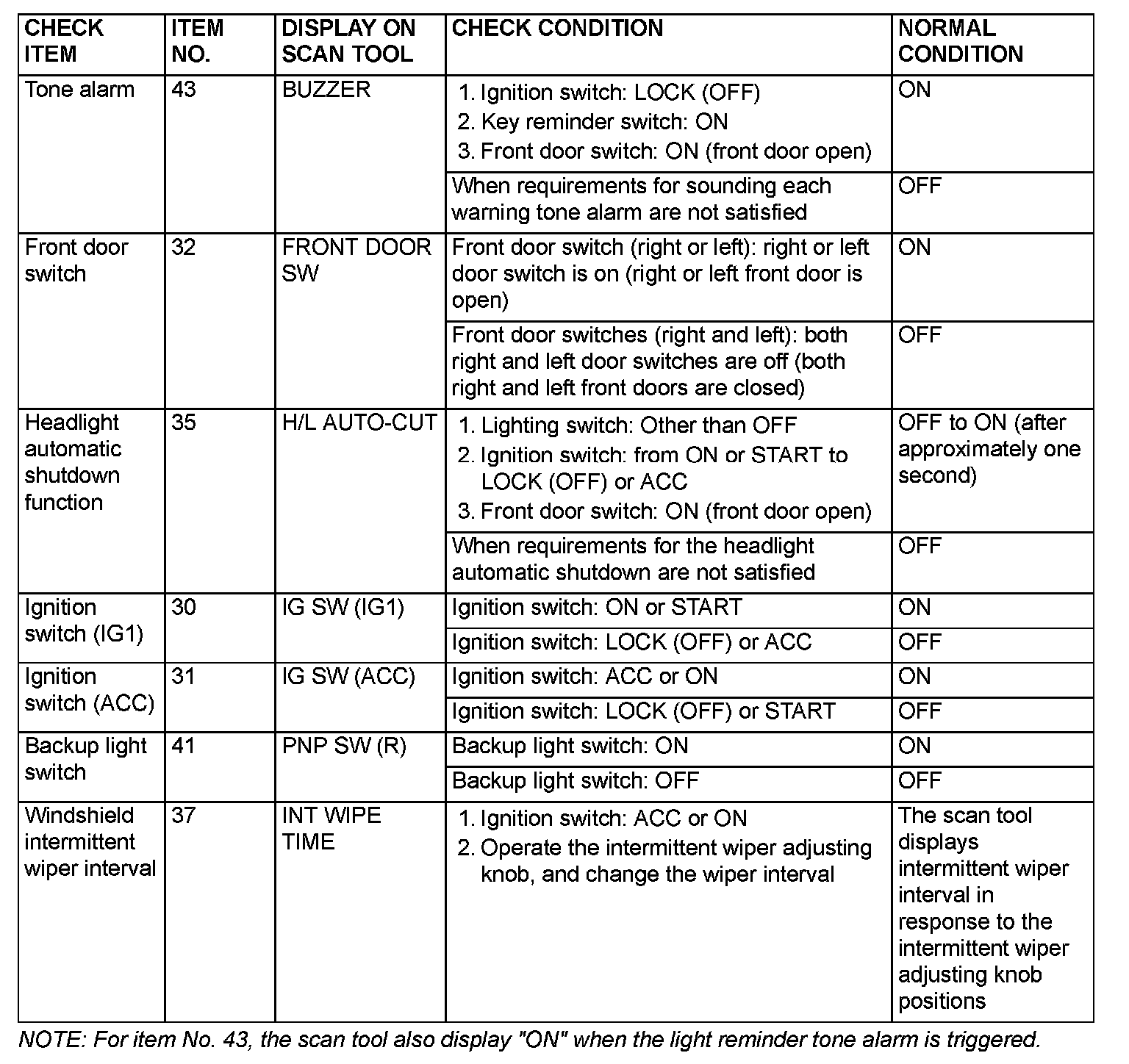

COLUMN ECU (column switch)

Data List Reference Table - ETACS ECU:

ETACS ECU

Data List Reference Table - Front ECU:

FRONT ECU

Data List Reference Table - Sunroof ECU (Sunroof Motor Assembly):

SUNROOF ECU (sunroof motor assembly)

FUNCTION DIAGNOSIS
The table shows the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal conditions" shows values which are shown when each operation is made.

Data List Reference Table - Wiper Part 1:

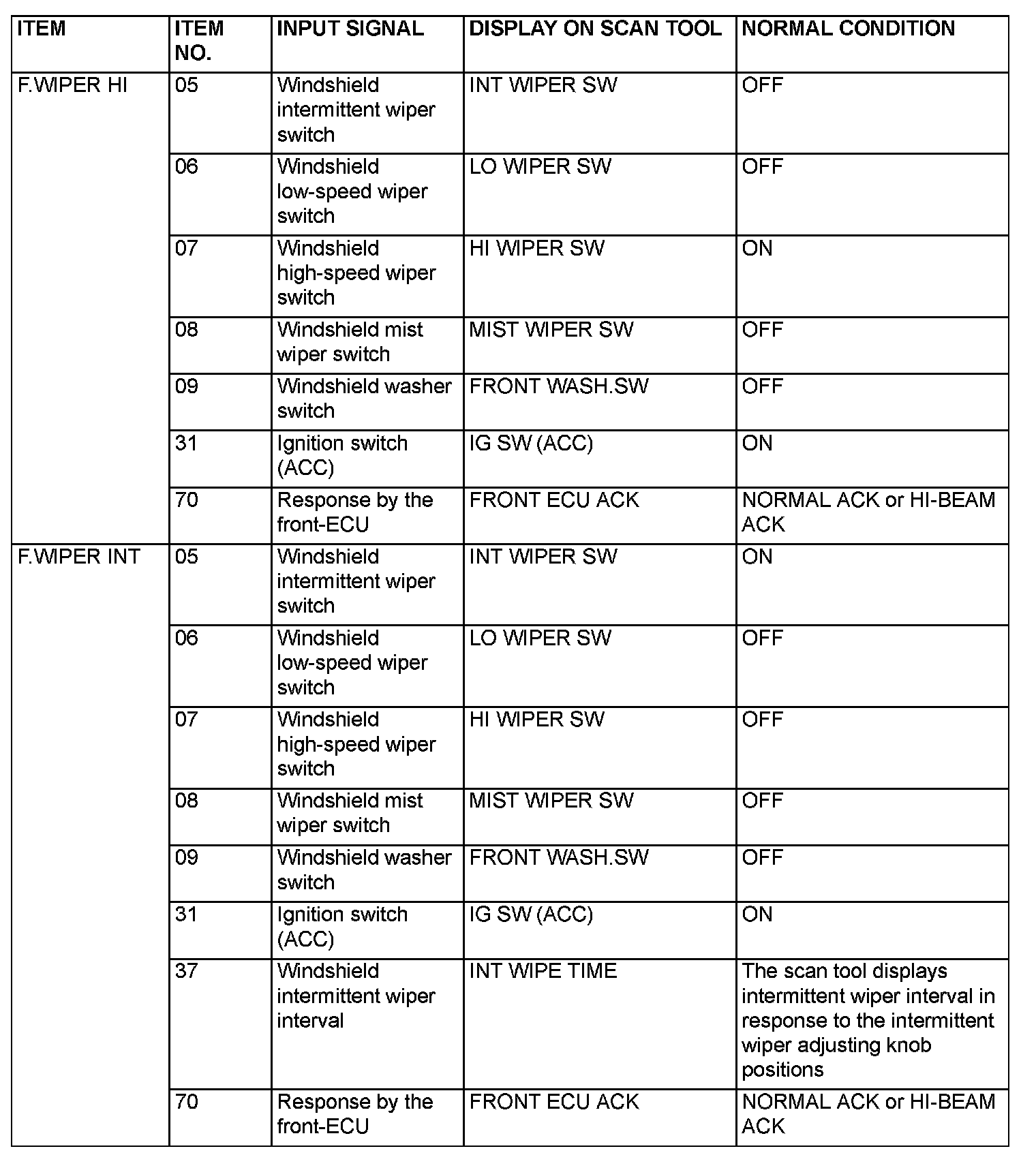

Data List Reference Table - Wiper Part 2:

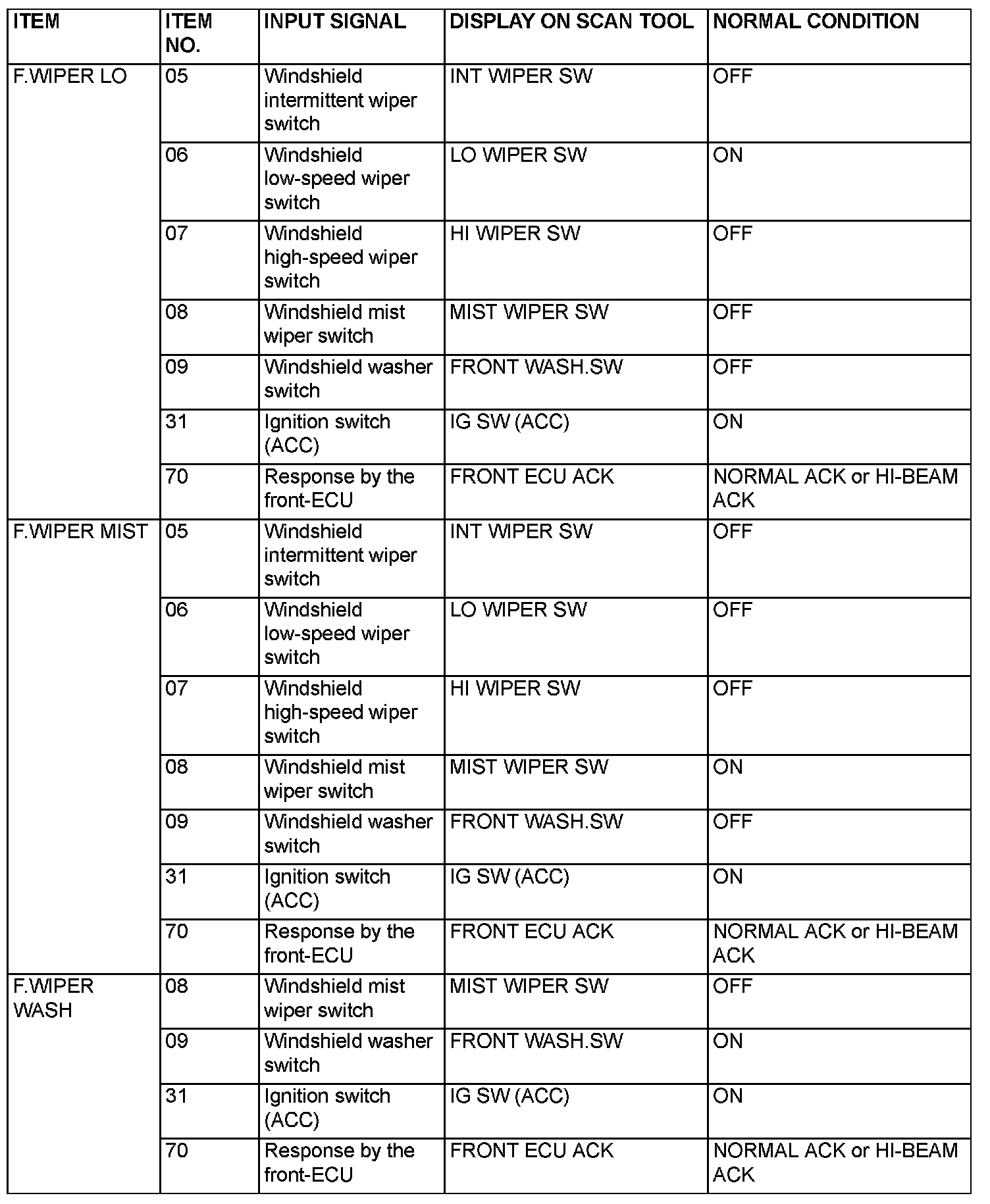

WIPER

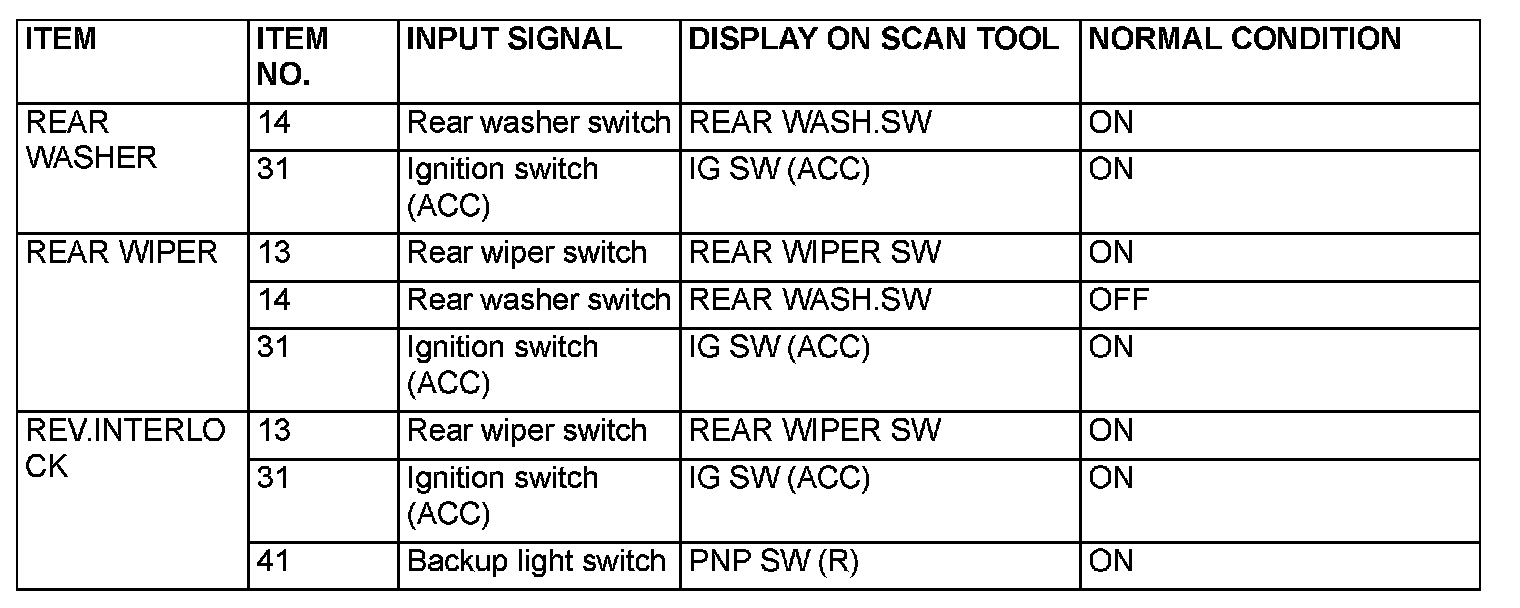

Data List Reference Table - Rear Wiper Part 1:

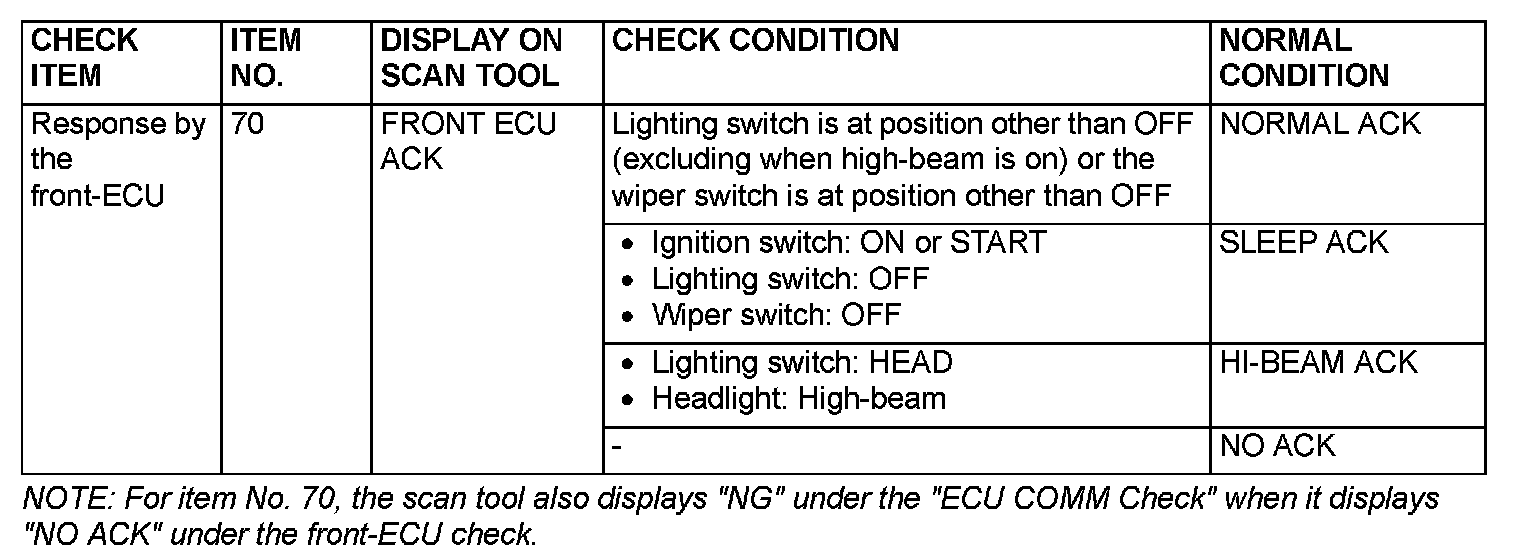

REAR WIPER

Data List Reference Table - Lighting Part 1:

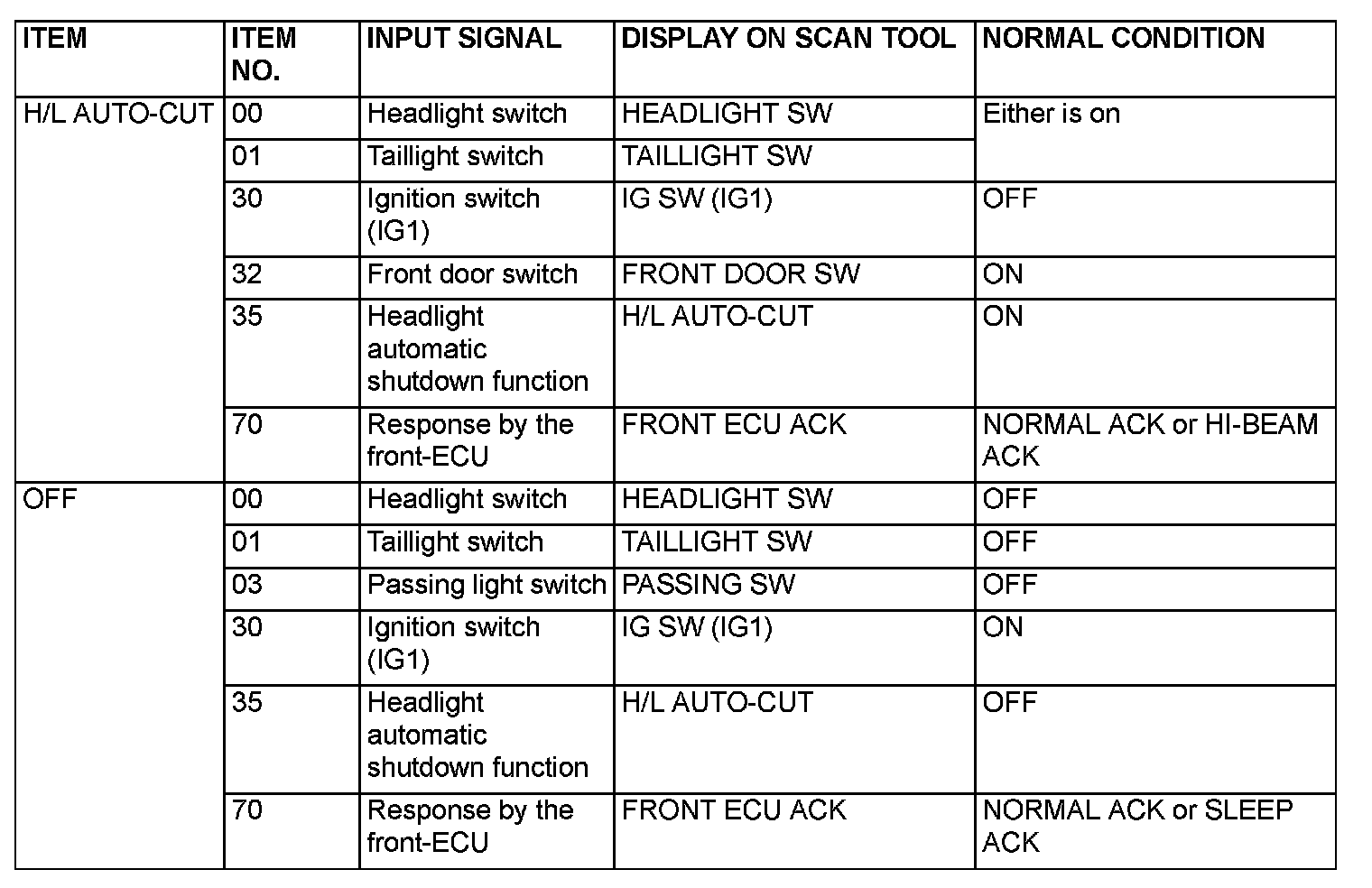

Data List Reference Table - Lighting Part 2:

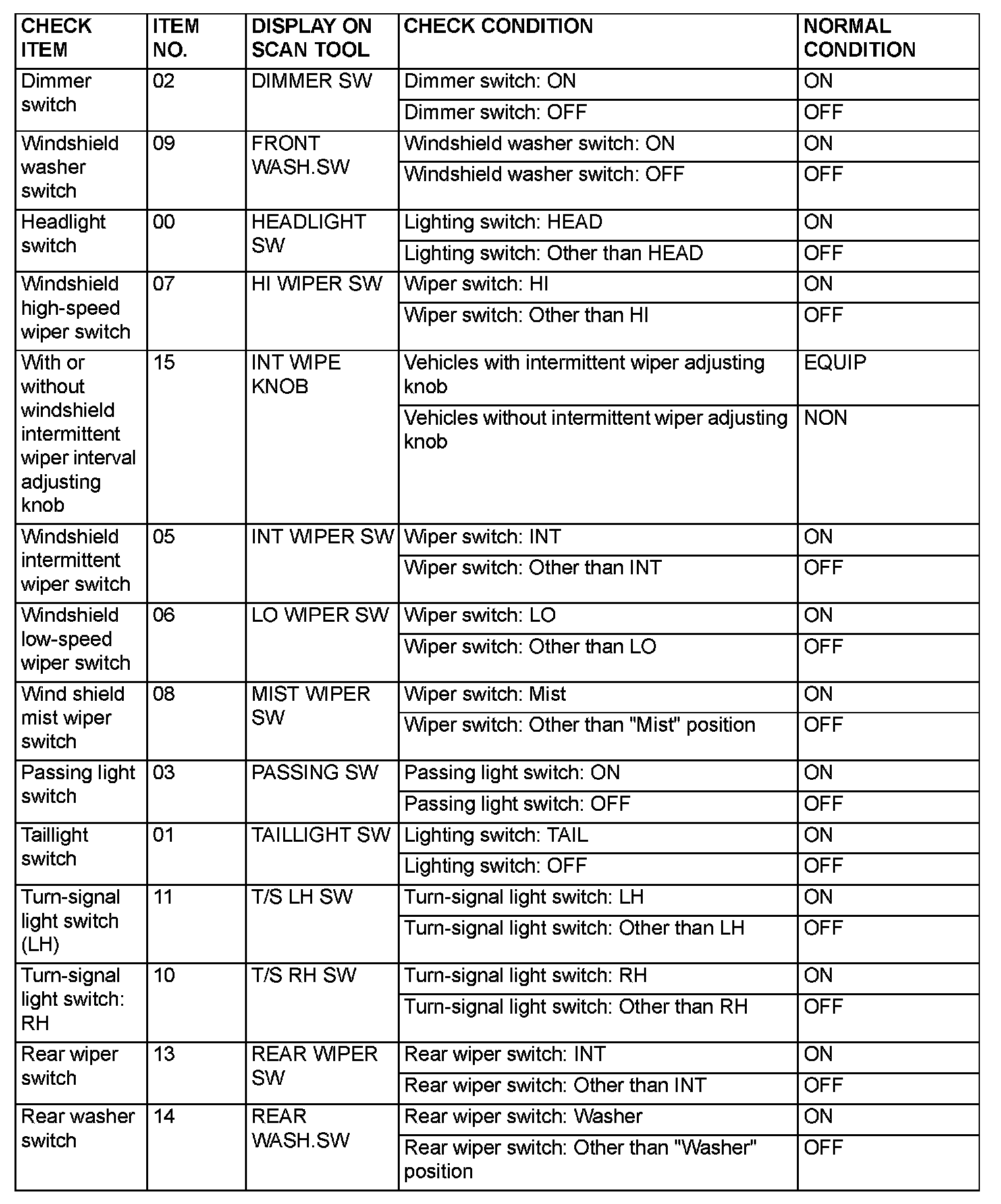

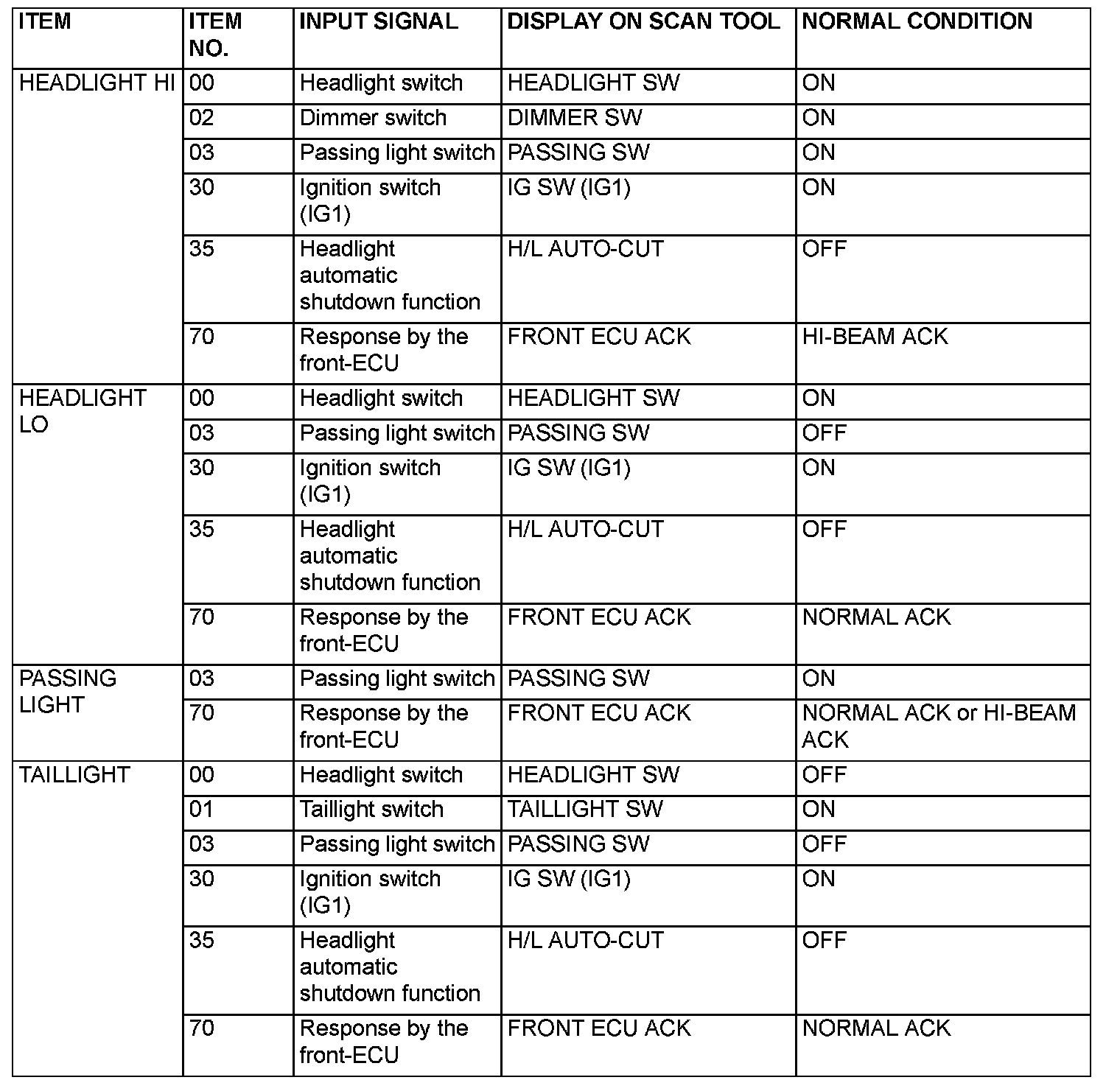

LIGHTING

NOTE: When checking the input signals (off, tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function. However, the headlight operation does not depend on the ignition switch positions, the scan tool does not display the title "IGNITION SWITCH". For checking item "HI (High-beam)", the scan tool displays "OFF" on the item No.2 "Dimmer SW" when the headlights are at high-beam. Therefore, the scan tool should display "ON" momentarily when the dimmer switch is operated.

Data List Reference Table - Turn Signal:

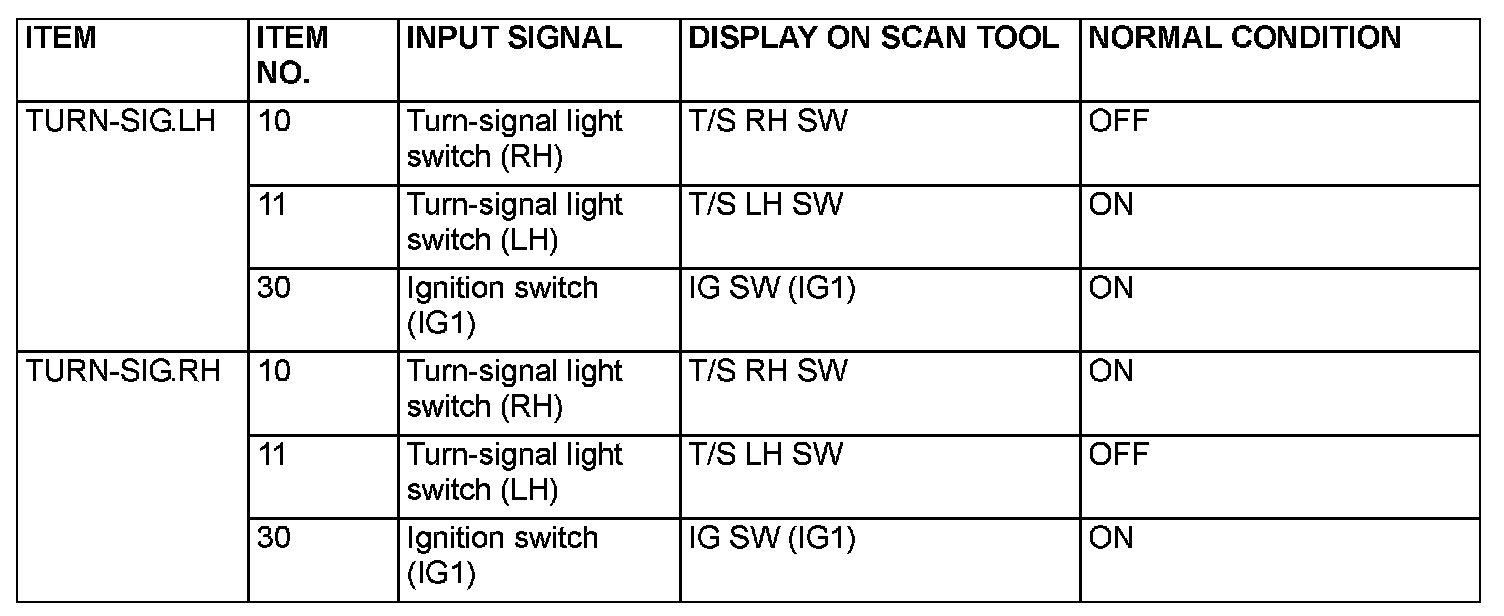

TURN SIGNAL

Data List Reference Table - Buzzer:

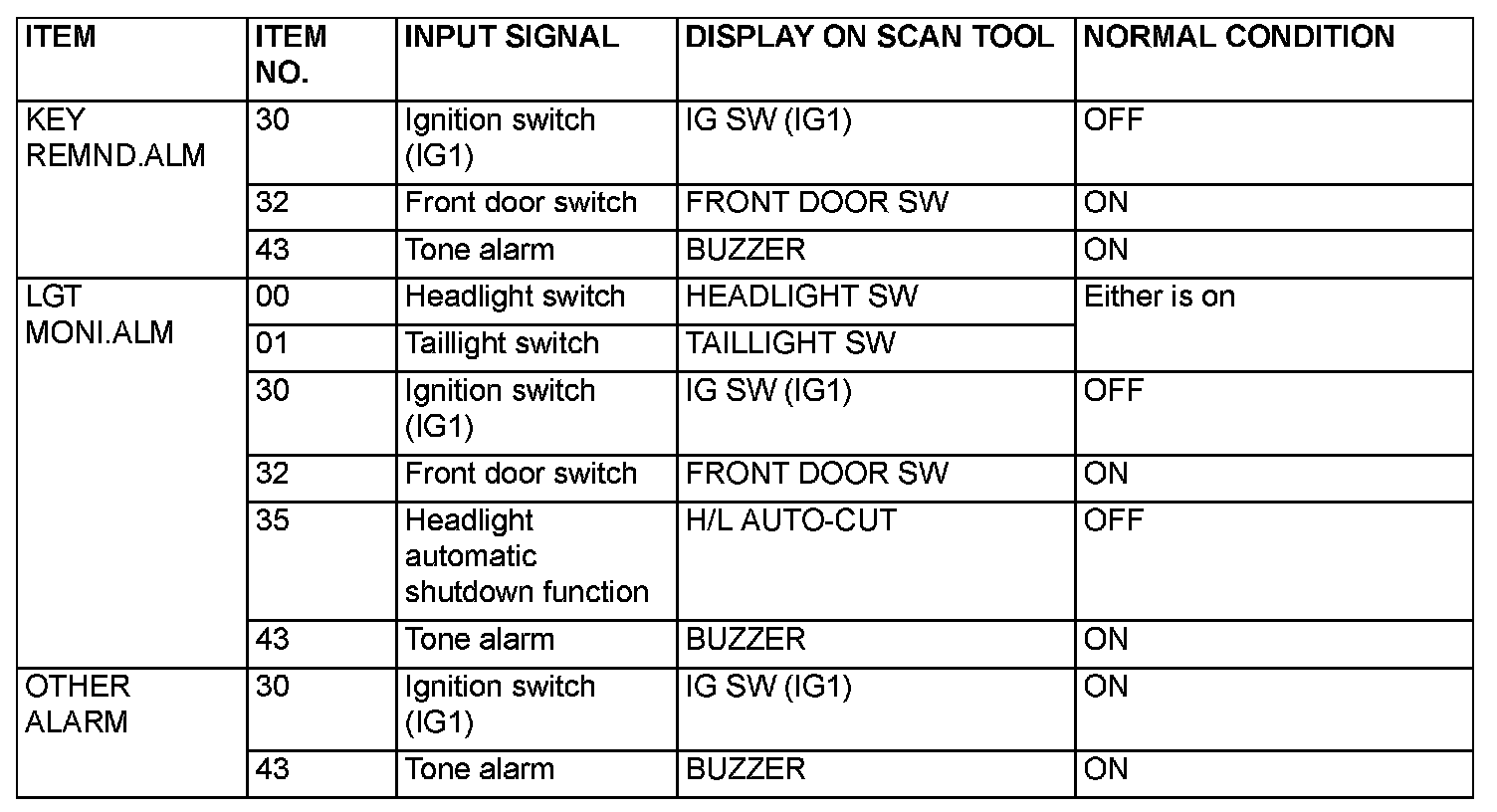

BUZZER

Data List Reference Table - Sunroof:

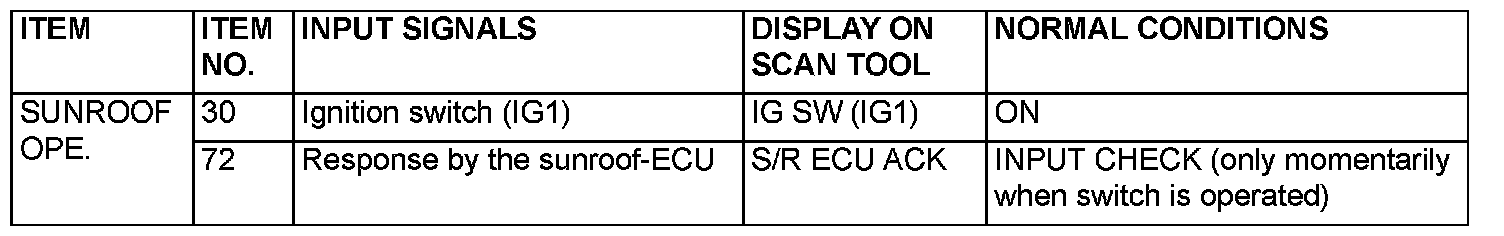

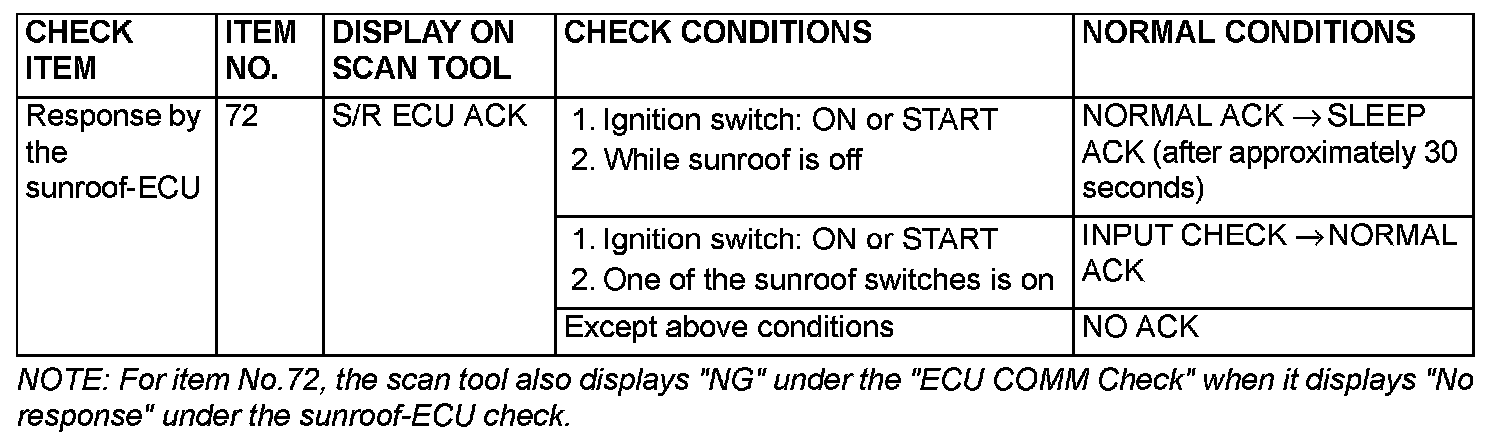

SUNROOF
