Communication Method

GENERAL DESCRIPTION

COMMUNICATION METHOD

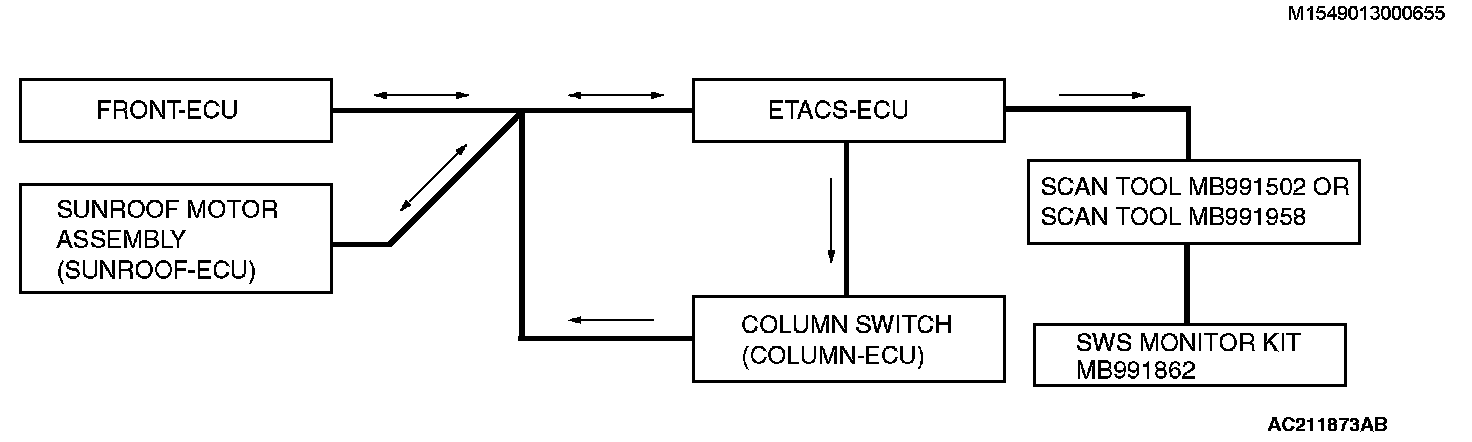

Communication Method:

As shown, signal wires used exclusively for transmitting multiplex signal data connect the ETACS-ECU, front-ECU, column switch (incorporating the column-ECU) and sunroof motor assembly (incorporating the sunroof-ECU) and these components communicate with each other.

OPERATION

TONE ALARM FUNCTION

IGNITION KEY REMINDER TONE ALARM FUNCTION
When the driver's door is opened (driver's door switch ON) without removing the ignition key [ignition switch to the "LOCK" (OFF) or "ACC" position], the tone alarm will sound intermittently to remind the driver that the ignition key has not been removed.

LIGHT REMINDER TONE ALARM FUNCTION
When the driver's door is opened (driver's door switch ON) with lighting switch (taillight switch or headlight switch) in the ON position and ignition switch in the "LOCK" (OFF) or "ACC" position, the tone alarm will sound continuously to remind the driver that the lights (taillights or headlights) are ON. This function does not work if the taillights or headlights are switched off through the headlight automatic shutdown function. In addition, the ignition key reminder tone alarm function has a priority over this function.

SEAT BELT TONE ALARM FUNCTION
When the ignition switch is turned to the "ON" position without fastening the seat belts (seat belt switch OFF), the tone alarm will sound for approximately six seconds to warn the driver to fasten the seat belts. When the seat belts are fastened, the tone alarm will stop sounding.

SEAT BELT TONE ALARM FUNCTION
If any of the following conditions is met with the ignition switch at "ON" or "ST", the ETACS-ECU sounds the tone alarm by using the driver's seat belt switch signal and the vehicle speed signal.
- Sounds the tone alarm for six seconds when the ignition switch is turned "ON" with the seat belt switch on (the driver's seat belt is not fastened) (timer operation).
- Sounds the tone alarm 12 cycles (after 0.5 seconds) if any of the following conditions is met when sixty seconds or more have elapsed since the ignition switch is turned "ON". One cycle consists of five-second "on" and then three-second "off".

NOTE: Once the tone alarm has sounded 12 cycles, it does not sound again until the vehicle speed reduces to 3 km/h (2 mph) or less even if any of the following conditions is met.

a. The vehicle speed has reached 8 km/h (5 mph) while the seat belt switch is turned on (driver's seat belt is not fastened) with the ignition switch "ON.
b. The seat belt switch has been turned on (driver's seat belt has not been fastened) for at least ten seconds while the ignition switch has been turned "ON" and the vehicle speed has been 8 km/h (5 mph) or more.
The tone alarm stops sounding if the ignition switch or the seat belt switch is turned off (the driver's seat belt is fastened) while the timer operation is active.

CENTRAL DOOR LOCKING SYSTEM

CENTRAL DOOR LOCKING SYSTEM OPERATION
- When the driver's inside lock knob is locked or unlocked, the lock relay inside the ETACS-ECU turns on to lock or unlock all doors.
- With all the doors locked, turning the key in the driver's door unlocks the door. Turning it again makes the door unlock relay close to send a signal for unlocking all doors.
- When the door lock switch (built into the power window switch) is operated, the lock or unlock relay inside the ETACS-ECU is turned on to lock or unlock all doors.

POWER WINDOW RELAY CONTROL

POWER WINDOW RELAY OPERATION
If the ignition switch is turned to "ON" position, the power window relay is energized to activate the power windows.

POWER WINDOW TIMER FUNCTION
When the ignition switch is turned from the "ON" position to "LOCK" (OFF) or "ACC" position, the power windows can be operated for 30 seconds. If any door is opened for the 30 seconds, the power windows will be immobilized at that point.

KEYLESS ENTRY SYSTEM
If the RKE transmitter "LOCK" or "UNLOCK" button is pressed while the ignition key is removed, the doors can be locked or unlocked. If the doors are closed, the hazard warning lights, the dome light and the horn will operate due to answer back function.

Because of the answer back function, the hazard warning lights flash twice, and the horn sounds once, the dome light flashes twice when the doors are locked. Meanwhile, when the doors are unlocked, the hazard warning lights flash and the dome light illuminates for 15 seconds. The hazard and the horn answer back functions can be cancelled by using the RKE transmitter.

SUNROOF

Sunroof operation
- All of the slide open/close, tilt up/down, and stop operations can be performed by a single switch.
- When the roof lid glass is tilted up, the sunshade opens approximately 98 mm (3.9 inches) in combined operation with the roof lid glass for better ventilation.
- A jam preventing mechanism is used. When a slide-close or tilt-down operation is blocked by an external force, the roof lid glass moves back and stops.
- The electronic sunroof system cannot be operated manually. The sunroof wrench that was used in previous models is not provided. If the anti-jam mechanism reverses the sunroof five or more times consecutively due to deformation or other problem with the sunroof components, it deactivates and allows the sunroof to make small movements [30 mm (1.2 inches)] until it closes completely.

SUNROOF TIMER FUNCTION
When the ignition switch is turned from "ON" position to "LOCK" (OFF) or "ACC" position, the sunroof can be operated for thirty seconds. If any door is opened for the 30 seconds, the sunroof will be immobilized at that point.

WINDSHIELD WIPERS AND WASHERS

WINDSHIELD LOW-SPEED (AND HIGH-SPEED) WIPER OPERATION
- If the windshield low-speed wiper switch is turned to the ON position with the ignition switch at the "ACC" or "ON" position, the column switch sends a low-speed wiper ON and high-speed wiper OFF signals to the front-ECU. This turns the wiper signal on and the wiper speed control relay off (low-speed), causing the wipers to operate at low-speed.
- If the windshield high-speed wiper switch is turned to the ON position, the column switch sends a low-speed wiper OFF and high-speed wiper ON signals to the front-ECU. This turns both the wiper signal and the wiper speed switching relay on (high-speed), causing the wipers to operate at high-speed.

NOTE: The windshield wiper speed is changed by wiper speed control relay incorporated in front-ECU. When the wiper speed control relay is at "ON" position, the windshield wiper operates at high-speed, and the wiper speed control relay is at "OFF" position, the windshield wiper operates at low-speed.

WINDSHIELD INTERMITTENT WIPER OPERATION
The ETACS-ECU calculates the wiper operation interval according to the voltage signal sent from the column switch. Then the ETACS-ECU sends a signal to the front-ECU. The front-ECU determines the wiper operation interval and turns on the wiper relay signal relay. This causes the wiper auto stop relay to turn on. Then the wiper auto stop relay will turn off after the wipers reach the park position. This causes the wiper signal relay and then the wipers to turn off. If the wiper signal relay remains off for the wiper operation interval, the relay turns on again, causing the wipers to operate in intermittent mode.

WINDSHIELD MIST WIPER OPERATION
- If the windshield mist wiper switch is turned to the ON position with the ignition switch at the "ACC" or "ON" position, the mist wiper high-speed operation signal is sent to the front-ECU. This signal turns on the wiper speed switching relay, causing the wipers to work at high-speed while the mist switch is on.
- While the windshield mist wiper switch remains turned on when the intermittent mode is still working, the wipers work as the mist wiper. However, the wipers return to the intermittent mode again when the switch is changed back to "INT" position.
- To prevent the windshield mist wiper from operating when the windshield wiper switch is turned OFF, the windshield mist wiper does not work for 0.5 second after the windshield intermittent wiper switch, the windshield low-speed wiper switch and the windshield high-speed wiper switch are turned OFF.

WINDSHIELD WASHER OPERATION
- If the windshield washer switch is turned to ON position with the ignition switch at "ACC" or "ON" position, the windshield washer ON signal is sent to the front-ECU, causing the windshield wiper signal to turn on after 0.3 second. After the windshield washer switch signal turns off, the windshield wiper signal turns off in three seconds.
- If the windshield washer switch is turned on while the windshield wiper is at intermittent mode, when the windshield washer switch is turned OFF within 0.2 second, the wiper works only once to perform mist operation by the windshield washer switch. When the ON condition of the windshield washer switch continues more than 0.2 second, the wiper performs the same movement as normal condition from the time when 0.2 second has elapsed and then returns to the intermittent motion.

REAR WIPER AND WASHER

REAR WIPER OPERATION
If the rear wiper and washer switch is turned to "INT" position with the ignition switch at "ACC" or "ON" position, the ETACS-ECU turns ON the rear wiper drive signal for three seconds (approximately two cycles), then 7.4 seconds later the intermittent motion operates every eight seconds. If the selector lever is moved to the "R" position when the rear wiper and washer switch is turned to the "INT" position and the ignition switch is at the "ACC" or "ON" position, the park/neutral position switch "R" turns ON. One second later, the ETACS-ECU turns ON the rear wiper drive signal for three seconds (approximately two cycles). Then, 7.4 seconds later, the intermittent motion of eight seconds cycle is restored.

REAR WASHER OPERATION
If the rear wiper and washer switch is turned to the ON (washer) position with the ignition switch at the "ACC" or "ON" position, the rear washer ON signal is sent to the ETACS-ECU, causing the rear wiper signal to turn on after 0.3 second. After the rear washer switch signal turns off, the rear wiper signal turns off in three seconds. If the rear washer switch is turned to the ON position while the rear wiper is in intermittent mode, the rear washer works for that period when the washer switch remains on. Then the rear wiper returns to the intermittent mode.

SEAT BELT WARNING LIGHT


If the driver turns the ignition switch to the "ON" position without wearing the seat belt, the seat belt warning light illuminates to alert the driver to wear the seat belt.


If any of the following conditions is met with the ignition switch at "ON" or "ST", the ETACS-ECU illuminates or extinguishes the seat belt indicator by using the driver's seat belt switch signal and the vehicle speed signal.
- The seat belt switch is turned on (driver's seat belt is not fastened) with the ignition switch at "ON"or"ST".
- Flashes the indicator 11 cycles (after 0.5 seconds) if any of the following conditions is met when sixty seconds or more have elapsed since the ignition switch is turned "ON", and then illuminates it for eight seconds. One cycle consists of five-second "on" and then three-second "off".

NOTE: Once this timer operation has been activated, it will not be activated again until the vehicle speed reduces to 3 km/h (2 mph) or less even if any of the following conditions is met.

a. The vehicle speed has reached 8 km/h (5 mph) while the seat belt switch is turned on (driver's seat belt is not fastened) with the ignition switch "ON.
b. The seat belt switch has been turned on (driver's seat belt has not been fastened) for at least ten seconds while the ignition switch has been turned "ON" and the vehicle speed has been 8 km/h (5 mph) or more.
The indicator stops illuminating if the ignition switch or the seat belt switch is turned off (the driver's seat belt is fastened) while the timer operation is active.

HEADLIGHT

HEADLIGHT AUTOMATIC SHUTDOWN FUNCTION
When the headlights or taillights are on, and the ignition switch is turned from "ON" to "LOCK" (OFF) or "ACC" position or the ignition key is removed, the headlights will be switched off in three minutes. If the driver's door is opened within that three-minute period, the headlights will be switched off automatically. This prevents the battery from discharging.

NOTE: The headlight automatic shutdown function can be disabled by the SWS configuration function.

HEADLIGHT DIMMER SWITCH AUTOMATIC RESETTING FUNCTION
This function allows the dimmer switch to be reset to the low-beam position whenever the headlight switch is turned to the ON position.

FLASHER TIMER

TURN-SIGNAL LIGHT
When the ignition switch is turned to the "ON" position and turn-signal light switch is placed in the ON position for right or left turn-signaling, the system generates turn-signal light drive signals (flashing signals). The system also notifies of a blown turn-signal light bulb by shortening the flashing intervals of the corresponding indicator light.

HAZARD WARNING LIGHT
The system detects a change from OFF to ON of the hazard warning input signal and activates or shuts off the hazard warning lights accordingly.

FOG LIGHT
The fog light switch becomes active only when the headlights are at the low-beam mode. Therefore, if the headlights are turned off, the fog lights will also be switched off. When the headlights are turned on during the next key cycle, the fog lights will be off regardless of the fog light switch position.

DOME LIGHT
With the dome light switch in the "door controlled operation" (middle) position, the ETACS-ECU controls the dome light operation as follows:
- When a door is opened from outside or inside [with the ignition switch turned to "LOCK" (OFF)]:
When a door is opened, the ETACS-ECU causes the dome light to be illuminated at 100% intensity. When the door is closed, it dims the dome light to 65% intensity and approximately 30 seconds later, turns out the light completely. During this period (timer controlled period), the dome light goes out if the ignition switch is turned "ON" or the doors are locked.
- When a door is opened or closed with the ignition switch in the "ON" position: The dome light illuminates at 100% intensity when a door is opened and turned out when it is closed.
- When no door is opened and the ignition key is removed: The dome light is illuminated at 100% intensity and turned off approximately 30 seconds later. During that time (timer-controlled period), the dome light goes out if the ignition key is inserted and turned to "ON" or the door locking system is activated.
- Dome light's answer back operation in response to door lock control by keyless entry system: To allow the driver to confirm the doors have locked by the keyless entry system, the ETACS-ECU causes the dome light to blink twice when the doors are locked by the RKE system and to illuminate for approximately 15 seconds when the doors are locked. The dome light's answer back operation in response to a keyless entry system control action is accompanied by flashing of the hazard warning lights.

INTERIOR LIGHT AUTOMATIC SHUTOFF FUNCTION
This function prevents the battery from being discharged when the door is open or the dome light remains on with the ignition switch at the "LOCK" (OFF) position. The ETACS-ECU turns on its "keep" relay to switch off the battery power supply to the interior lights when the interior light loaded signal and all door switches remain on for approximately 30 minutes with the ignition switch at positions other than ACC. Then the interior lights will be switched off. If the ignition switch is turned on again, the ETACS-ECU turns on its "keep" relay to illuminate the interior lights.

DOOR-AJAR INDICATOR LIGHT OPERATION
This indicator light warns the driver that door(s) are not closed. If a door switch is on, the ETACS-ECU operates the door-ajar indicator light on the combination meter.
