P0325

DTC P0325: Knock Sensor Circuit

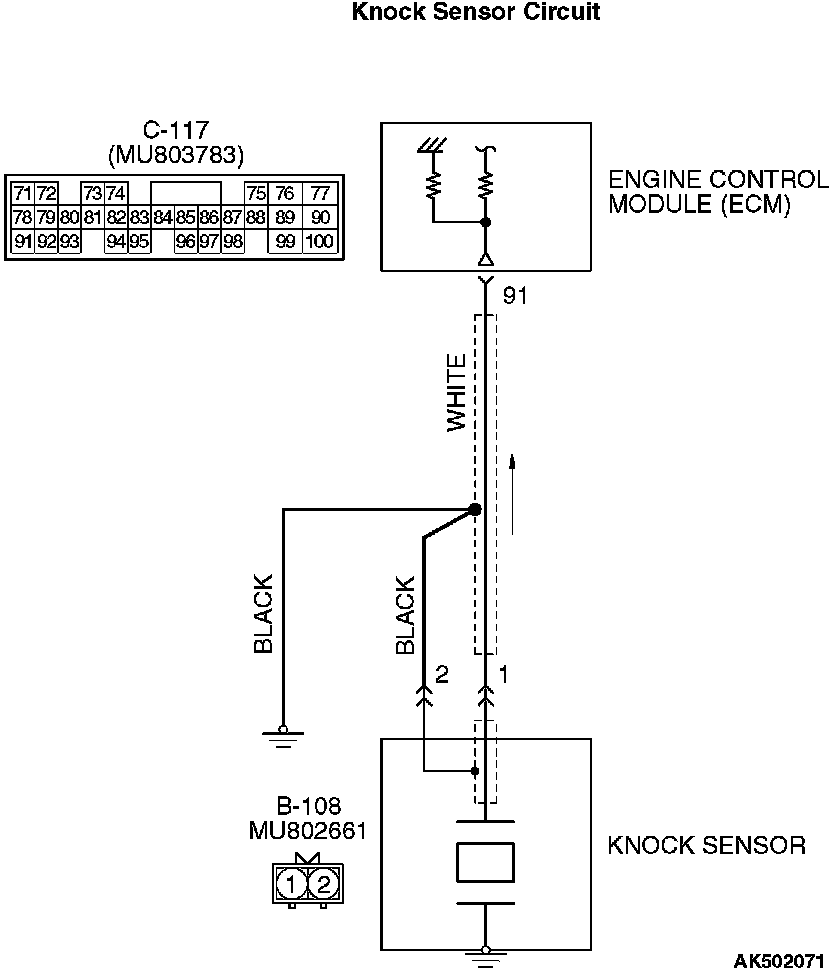

Knock Sensor Circuit Part 1:

Knock Sensor Circuit Part 2:

CIRCUIT OPERATION
- The knock sensor sends a signal voltage to the ECM (terminal No.91).

TECHNICAL DESCRIPTION
- The knock sensor converts the vibration of the cylinder block into a voltage and outputs it. If there is a malfunction of the knock sensor, the voltage output will not change.
- The ECM checks whether the voltage output changes.

DTC SET CONDITIONS

Check Conditions
- 2 seconds or more have passed since the engine starting sequence was completed.
- Engine speed is higher than 2,500 r/min.
- Volumetric efficiency is higher than 25 percent.

Judgment Criterion
- Knock sensor output voltage (knock sensor peak voltage in each 1/2 turn of the crankshaft) has not changed more than 0.06 volt in the last consecutive 200 periods.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Knock sensor failed.
- Open or shorted knock sensor circuit, harness damage, or connector damage.
- ECM failed.

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B

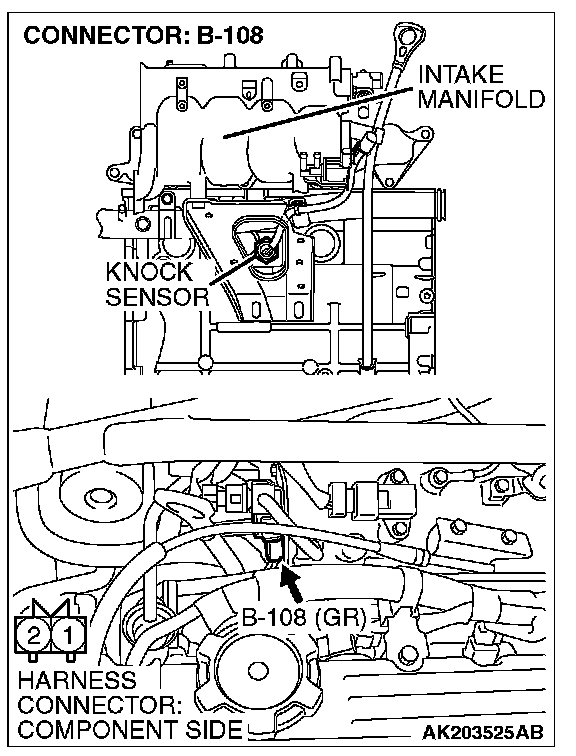

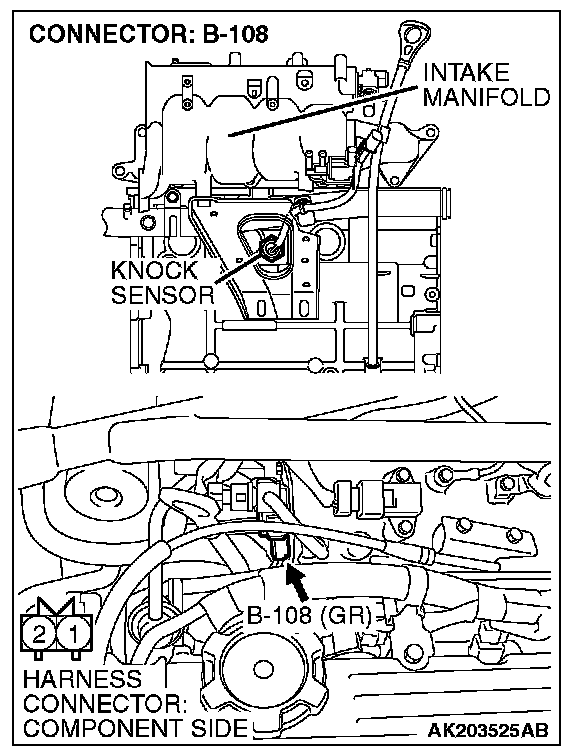

STEP 1. Check harness connector B-108 at the knock sensor for damage.

Q: Is the harness connector in good condition?

YES: Go to Step 2.

NO: Repair or replace it. Then go to Step 6.

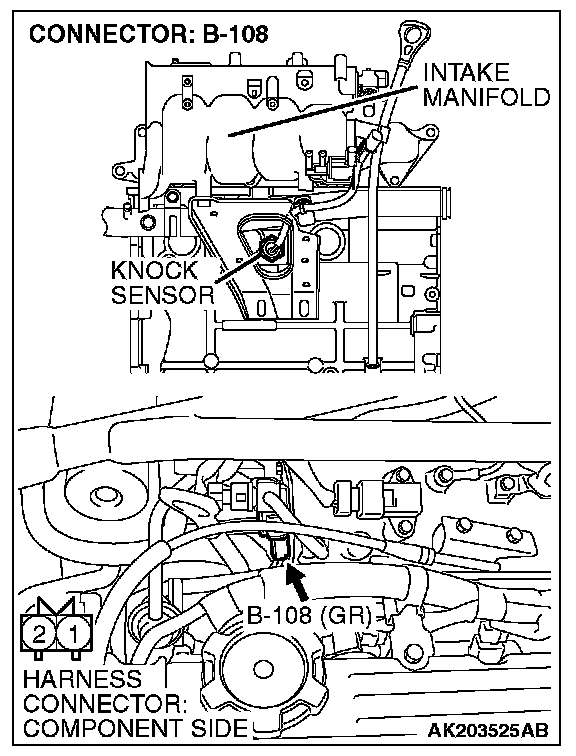

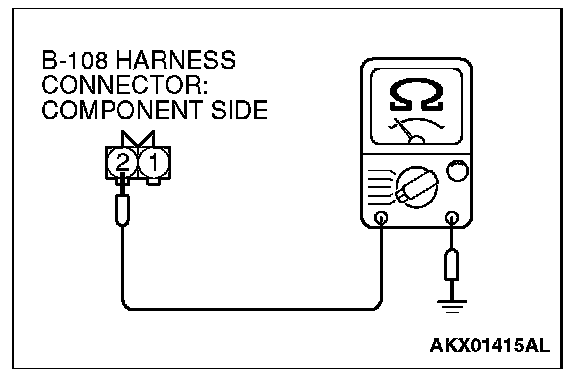

STEP 2. Check for continuity at knock sensor harness side connector B-108.




1. Disconnect connector B-108 and measure at the harness side.




2. Check for the continuity between terminal No.2 and ground.
- Should be less than 2 Ohms.

Q: Does continuity exist?

YES: Go to Step 3.

NO: Repair harness wire between knock sensor connector B-108 (terminal No.2) and ground because of open circuit or harness damage. Then go to Step 6.

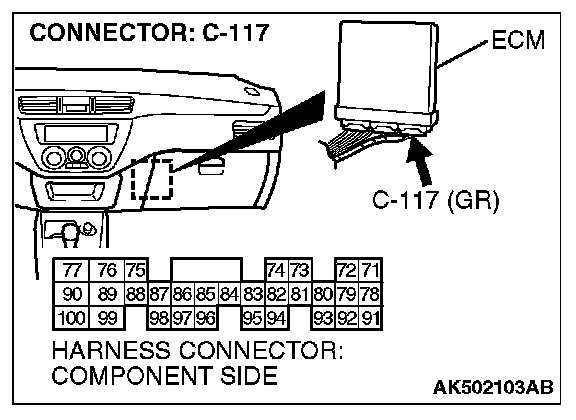

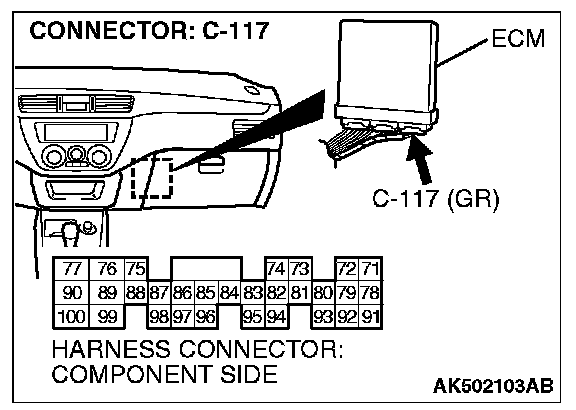

STEP 3. Check harness connector C-117 at ECM for damage.

Q: Is the harness connector in good condition?

YES: Go to Step 4.

NO: Repair or replace it. Then go to Step 6.

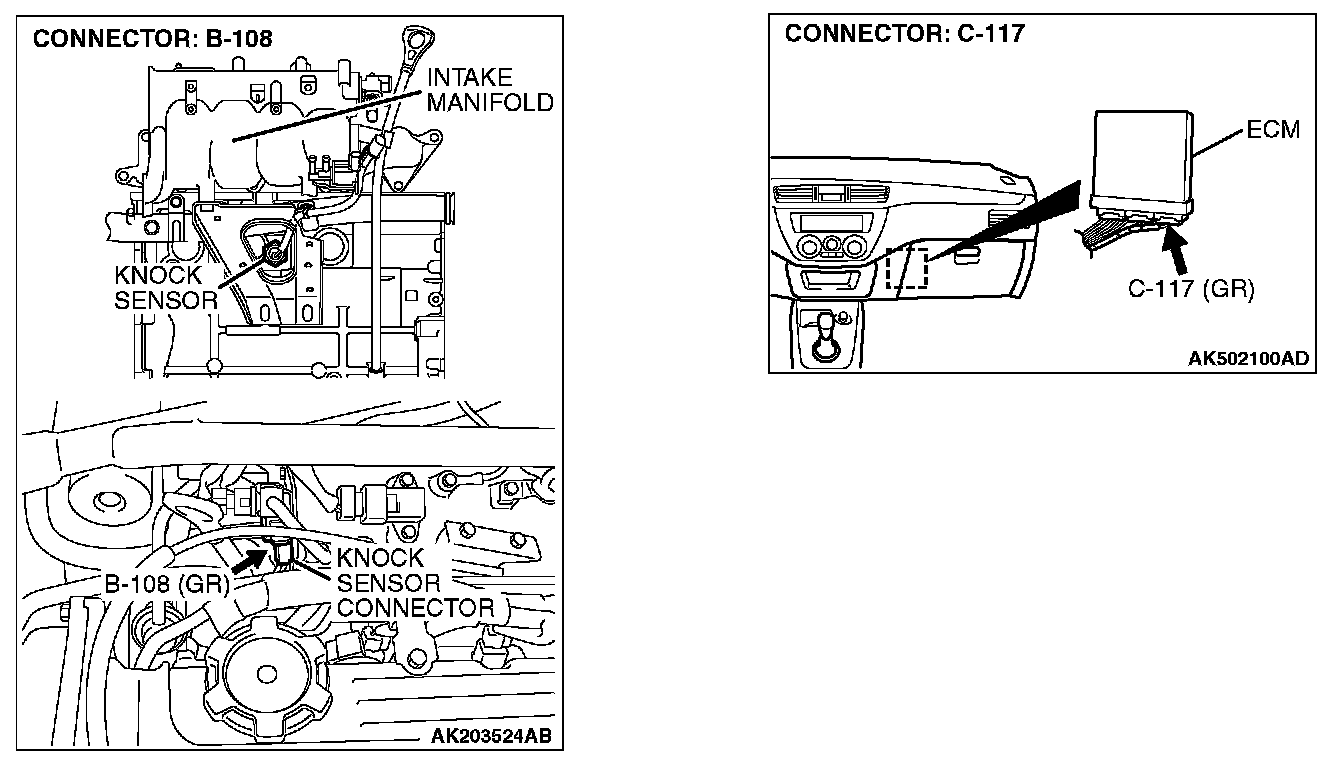

STEP 4. Check for open circuit and short circuit to ground and harness damage between knock sensor connector B-108 (terminal No.1) and ECM connector C-117 (terminal No.91).

Q: Is the harness wire in good condition?

YES: Go to Step 5.

NO: Repair it. Then go to Step 6.

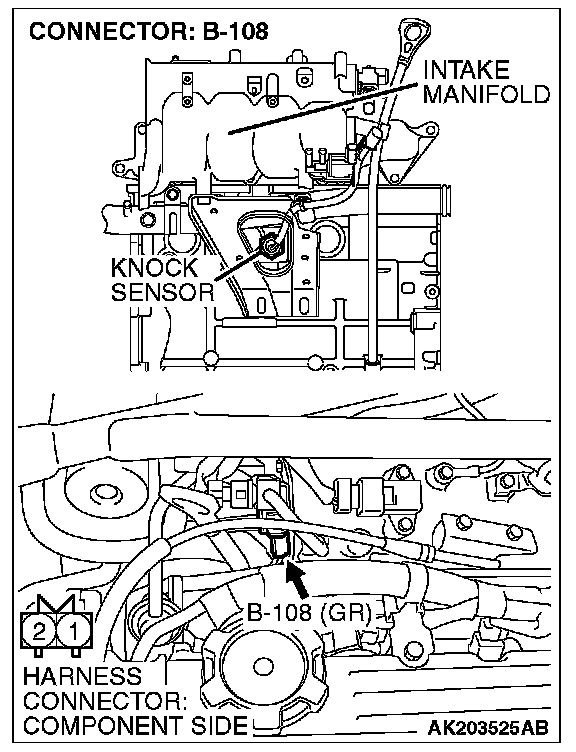

STEP 5. Check the knock sensor.




1. Disconnect the knock sensor connector B-108.
2. Start the engine and run at idle.
3. Measure the voltage between knock sensor side connector terminal No.1 (output) and No.2 (ground).
4. Gradually increase the engine speed.
- The voltage increases with the increase in the engine speed.

5. Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the sensor operating properly?

YES: Replace the ECM. Then go to Step 6.

NO: Replace the knock sensor. Then go to Step 6.

STEP 6. Using scan tool MB991958, read the diagnostic trouble code (DTC).

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.




1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Erase the DTC.
4. Test drive under the following conditions:
- Engine speed: 2,000 - 5,000r/min
- Engine load: 40% or more
- Drive a minimum of 3 seconds after the above conditions have been met.

5. After completing the test drive, read the DTC. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC P0325 set?

YES: Retry the troubleshooting.

NO: The inspection is complete.
