P0138

DTC P0138: Heated Oxygen Sensor Circuit High Voltage

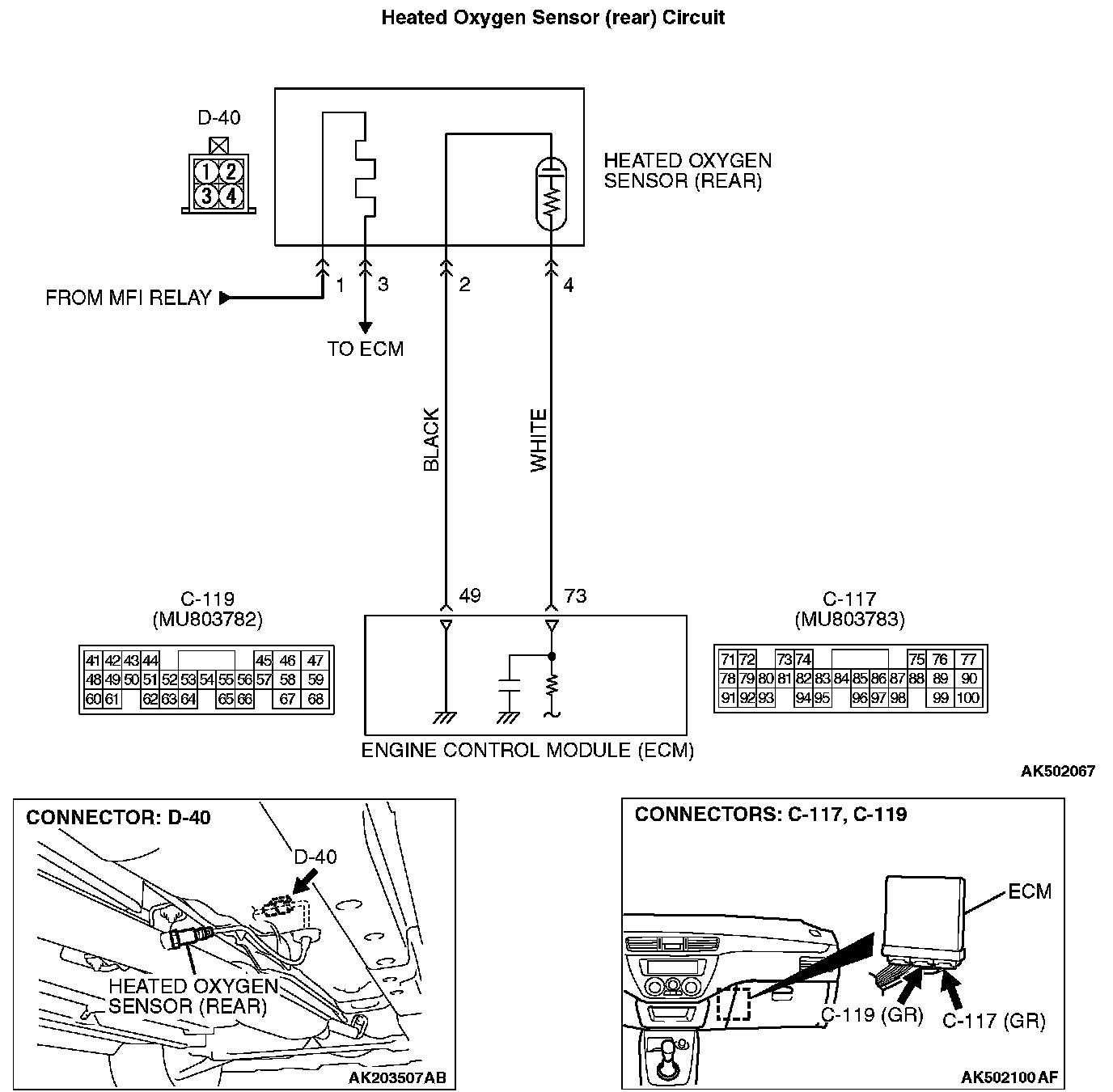

Heated Oxygen Sensor (Rear) Circuit:

CIRCUIT OPERATION
- A voltage corresponding to the oxygen concentration in the exhaust gas is sent to the ECM (terminal No.73) from the output terminal (terminal No.4) of the heated oxygen sensor (rear).
- Terminal No.2 of the heated oxygen sensor (rear) is grounded with ECM (terminal No.49).

TECHNICAL DESCRIPTION
- The output signal of the heated oxygen sensor (front) is compensated by the output signal of the heated oxygen sensor (rear).
- The ECM checks for an open circuit in the heated oxygen sensor (rear) output line.

DESCRIPTIONS OF MONITOR METHODS
- Heated oxygen sensor (rear) output voltage is over specified range.

MONITOR EXECUTION
- Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Heated oxygen sensor heater (front) monitor
- Heated oxygen sensor heater (rear) monitor
- Air/fuel ratio feedback monitor

Sensor (The sensor below is determined to be normal)
- Volume airflow sensor
- Engine coolant temperature sensor
- Intake air temperature sensor
- Barometric pressure sensor

DTC SET CONDITIONS

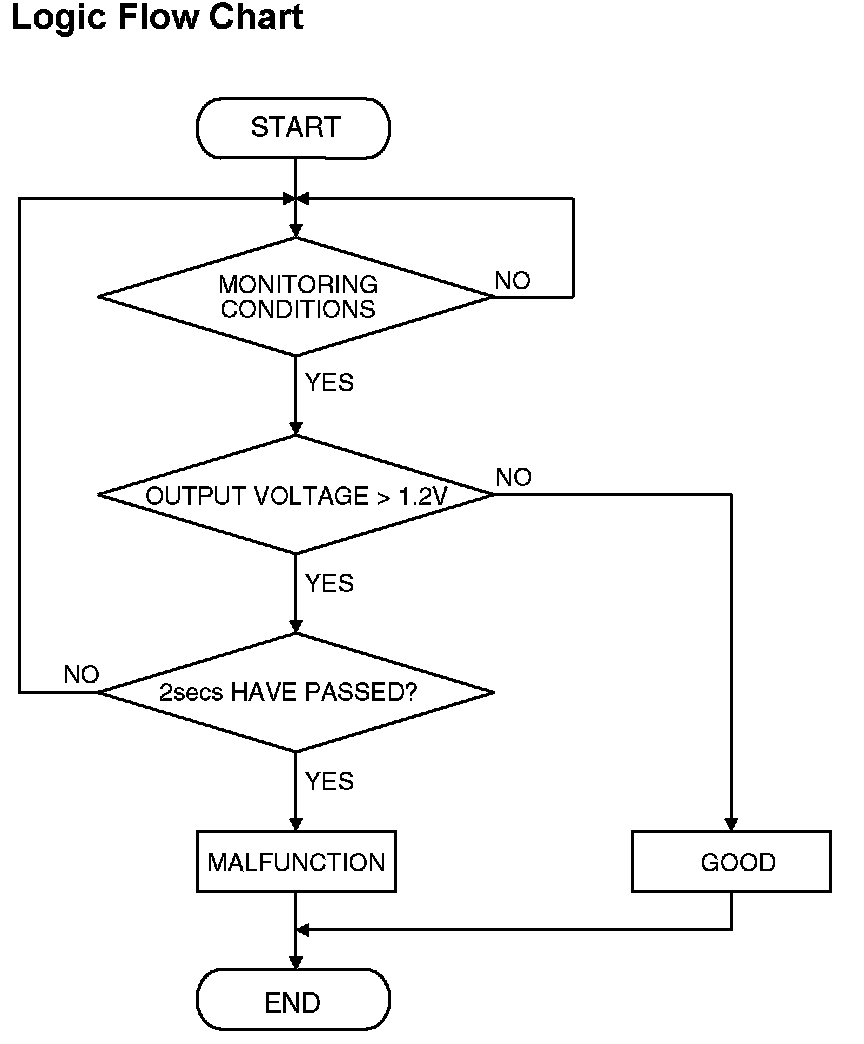

Logic Flow Chart:

Logic Flow Chart

Check Condition
- 2 seconds or more have passed since the engine starting sequence was completed.

Judgment Criterion
- Heated oxygen sensor (rear) output voltage has continued to be 1.2 volts or higher for 2 seconds.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23. OBD-II Drive Cycle Pattern Lists

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Heated oxygen sensor (rear) failed.
- Short circuit in heated oxygen sensor (rear) output line.
- Connector damage.
- ECM failed.

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B

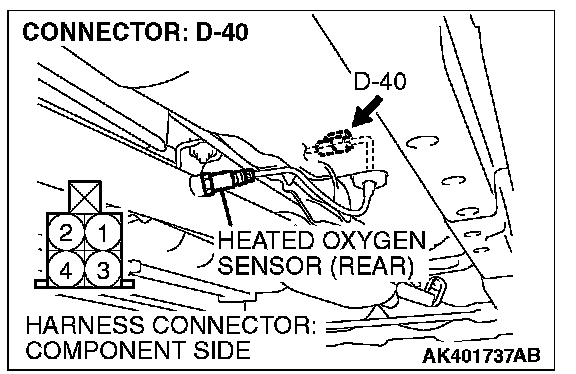

STEP 1. Check harness connector D-40 at heated oxygen sensor (rear) and harness connector C-117 at ECM for damage.

Q: Is the harness connector in good condition?

YES: Go to Step 2.

NO: Repair or replace it. Then go to Step 3.

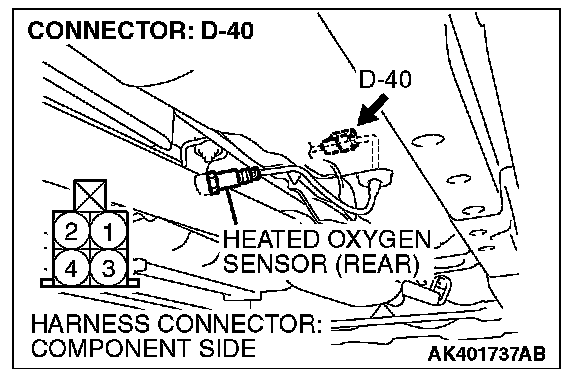

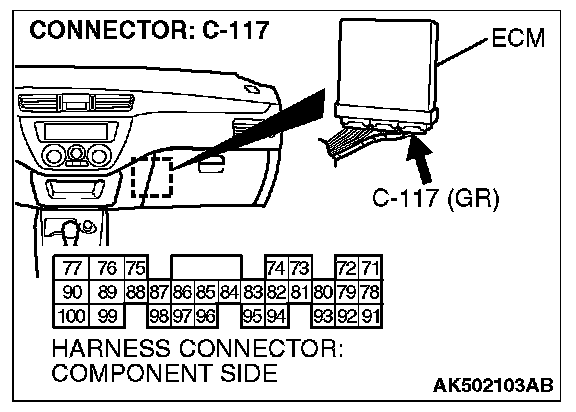

STEP 2. Check for short circuit to power supply between heated oxygen sensor (rear) connector D-40 (terminal No.4) and ECM connector C-117 (terminal No.73).

Q: Is the harness wire in good condition?

YES: Replace the ECM. Then go to Step 3.

NO: Repair it. Then go to Step 3.

STEP 3. Test the OBD-II drive cycle.

1. Carry out a test drive with the drive cycle pattern. Refer to, Diagnostic Function - OBD-II Drive Cycle - Pattern 23. OBD-II Drive Cycle Pattern Lists
2. Check the diagnostic trouble code (DTC).

Q: Is DTC P0138 set?

YES: Retry the troubleshooting.

NO: The inspection is complete.
