DTC 44

DTC 44: SRS Warning Light Drive Circuit System Fault 2

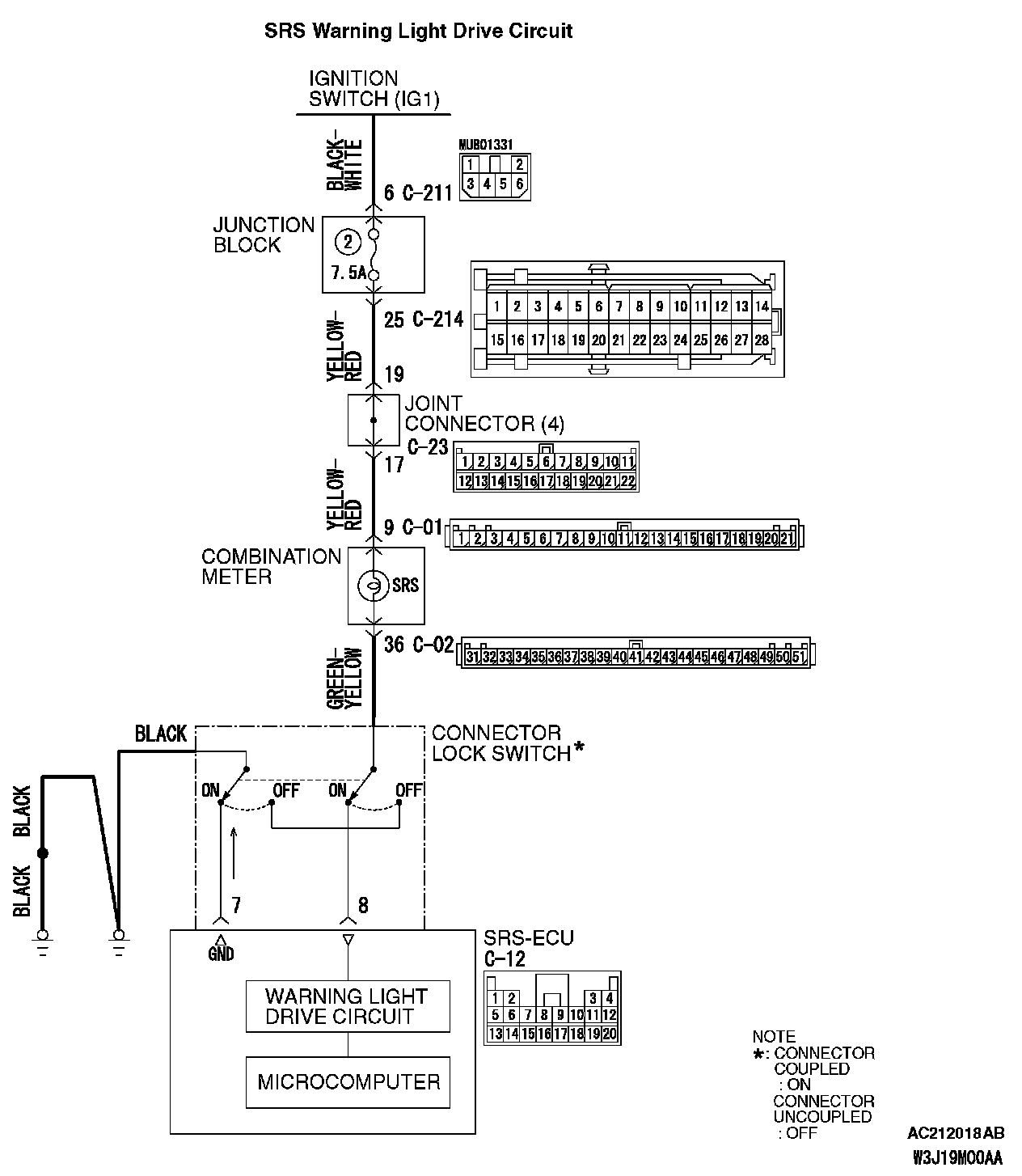

SRS Warning Light Drive Circuit:

CIRCUIT OPERATION
- Power for the SRS warning light is supplied from the ignition switch (IG1).
- The SRS warning light illuminates when the ignition switch is turned to the "ON" position and goes out after approximately seven seconds if there is not a malfunction in the SRS system.

DTC SET CONDITIONS
- This DTC is set under one of the following cases while the SRS-ECU is monitoring the warning light drive circuit:
- When a short circuit occurs in the warning light drive circuit.
- When a malfunction is detected in the output transistor inside the SRS-ECU.

TROUBLESHOOTING HINTS
- Damaged wiring harnesses or connectors
- Malfunction of the SRS-ECU

DIAGNOSIS

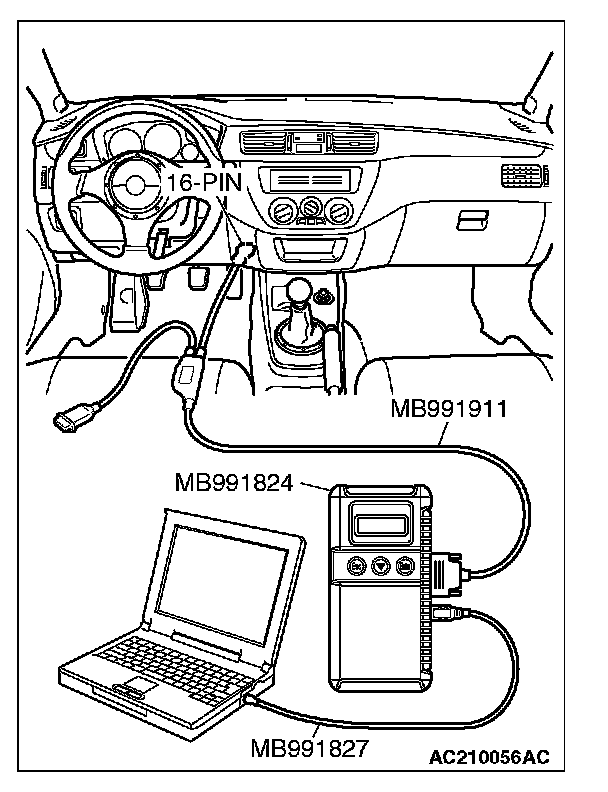

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991911: M.U.T.-III Main Harness B

STEP 1. Check the SRS warning light drive circuit system.

Q: Is the SRS warning light drive circuit normal?

YES: Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC 43 set, replace the SRS-ECU. Then go to Step 2.

NO: Repair the harness wires or replace the SRS-ECU. Then go to Step 2.

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.




1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC 44 set?

YES: There is no action to be taken.

NO: The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to How to Use Troubleshooting/INSPECTION Service Points - How to Cope with Intermittent Malfunction).
